Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front seats (LH/RH). Refer to Removal and Installation .
  2. Remove front pillar finishers (RH/LH). Refer to Removal and Installation .
  3. Disconnect headlining harness and antenna feeder connectors.
  4. Remove center pillar upper finishers (RH/LH). Refer to Removal and Installation .
  5. Remove rear pillar finishers (RH/LH). Refer to Removal and Installation .
  6. Disconnect antenna amplifier and rear window defogger harness connectors.

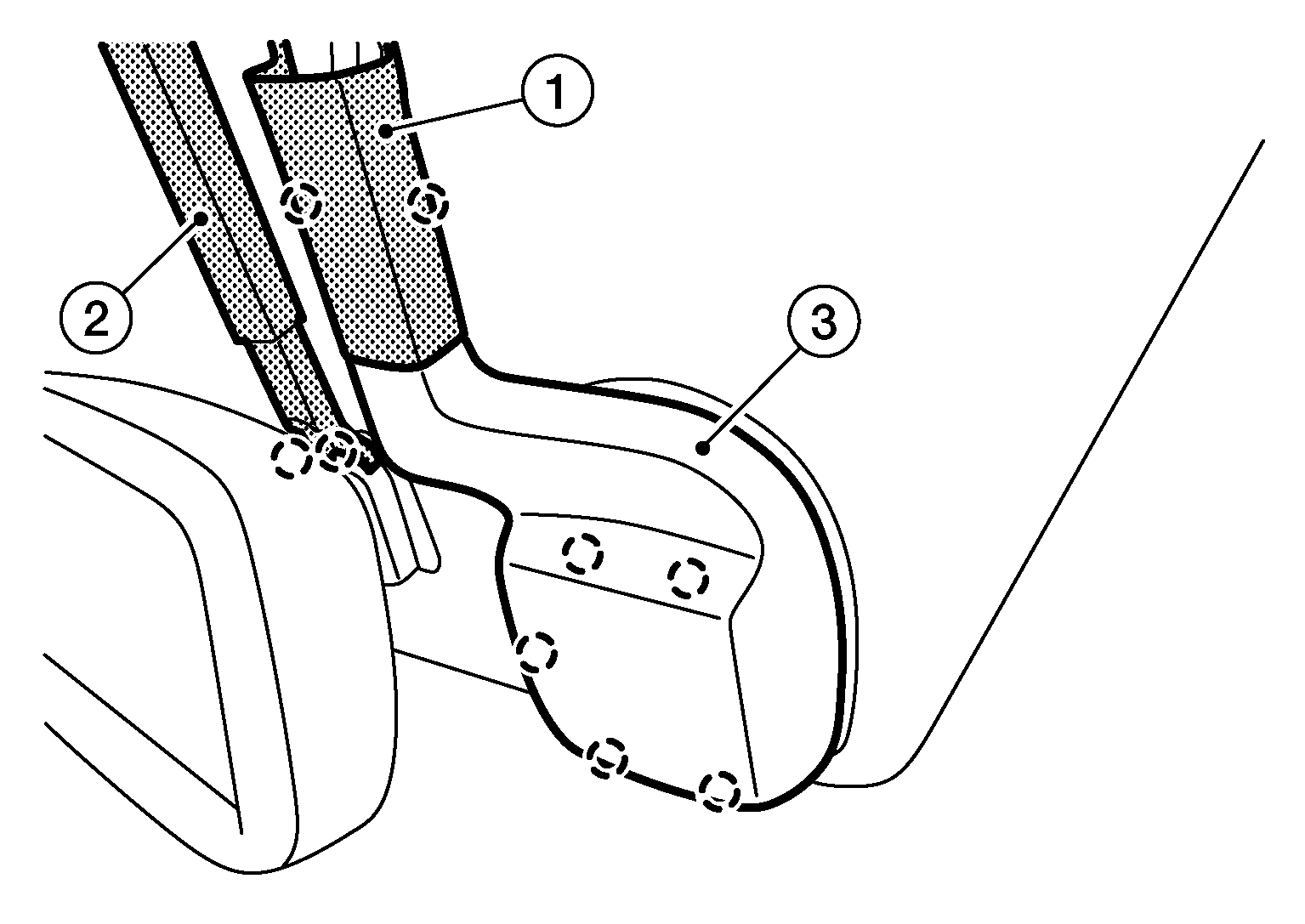

  7. Using suitable tool, release pawls and remove rain sensor finishers (1, 3), then release pawls and remove inside mirror finisher (2).
    GNSALJIA1762Z-762Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
  8. Disconnect harness connector from rain sensor and inside mirror.

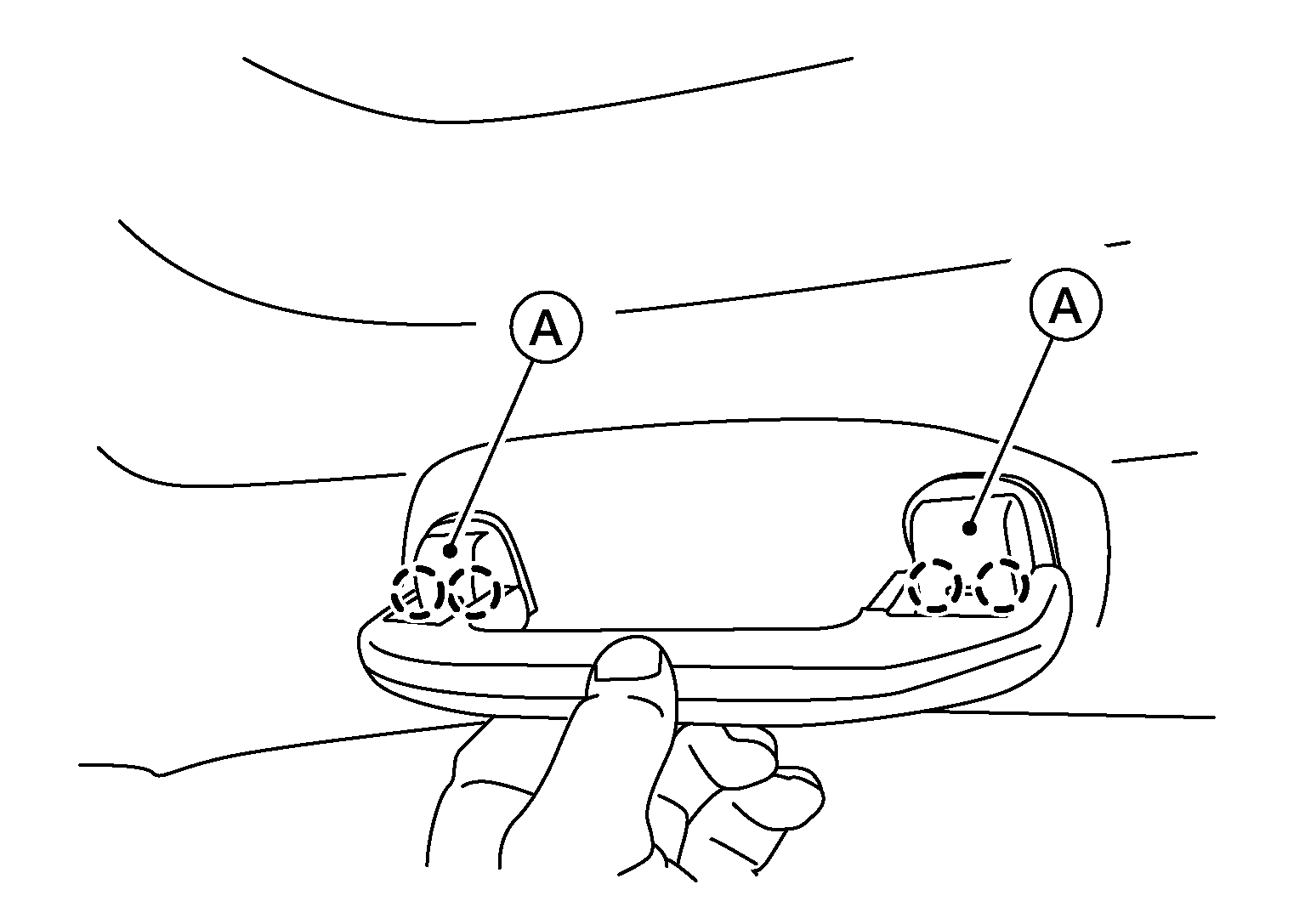

  9. Using suitable tool, release pawls (A) and position assist grip caps open.
    GNSALJIA1760Z-760Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

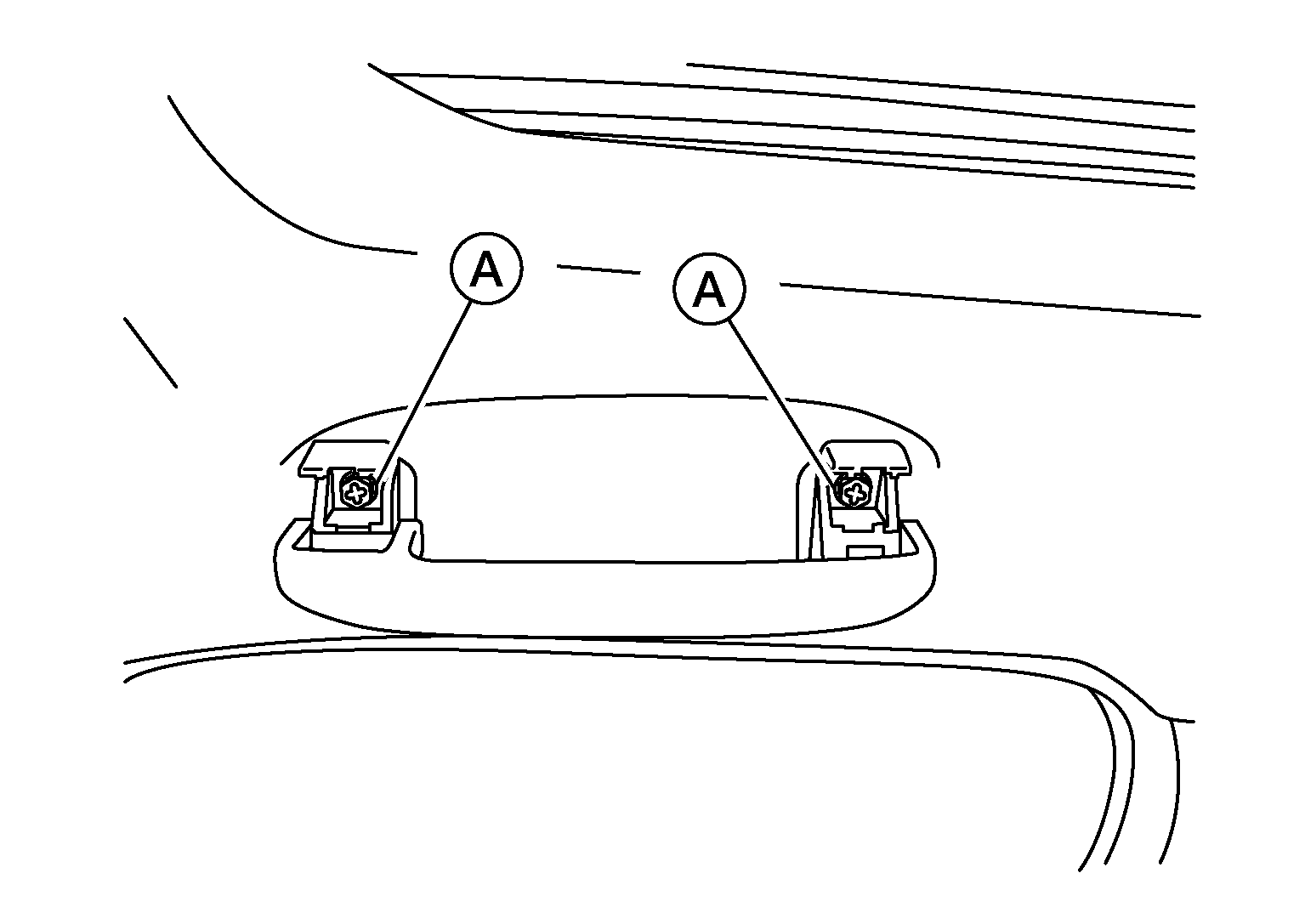

  10. Remove screws (A) and then remove front and rear assist grips.
    GNSALJIA1761Z-761Courtesy of NISSAN NORTH AMERICA, INC.

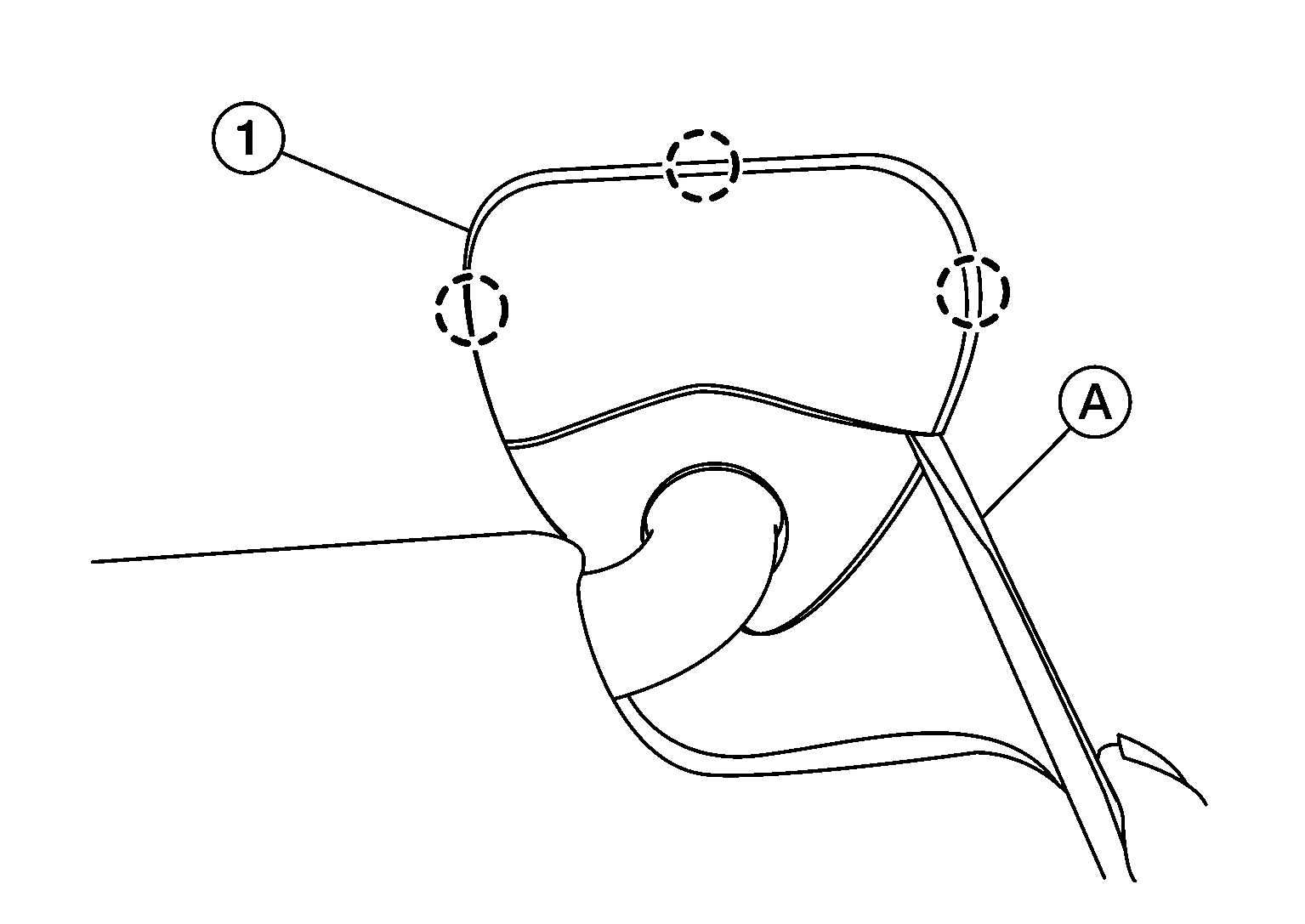

  11. Remove sun visor cover [LH/RH (1)] by inserting suitable tool (A) as shown below.
    GNSAWBIA1997Z-997Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
    CAUTION: Do not damage headlining or sun visor cover surface.

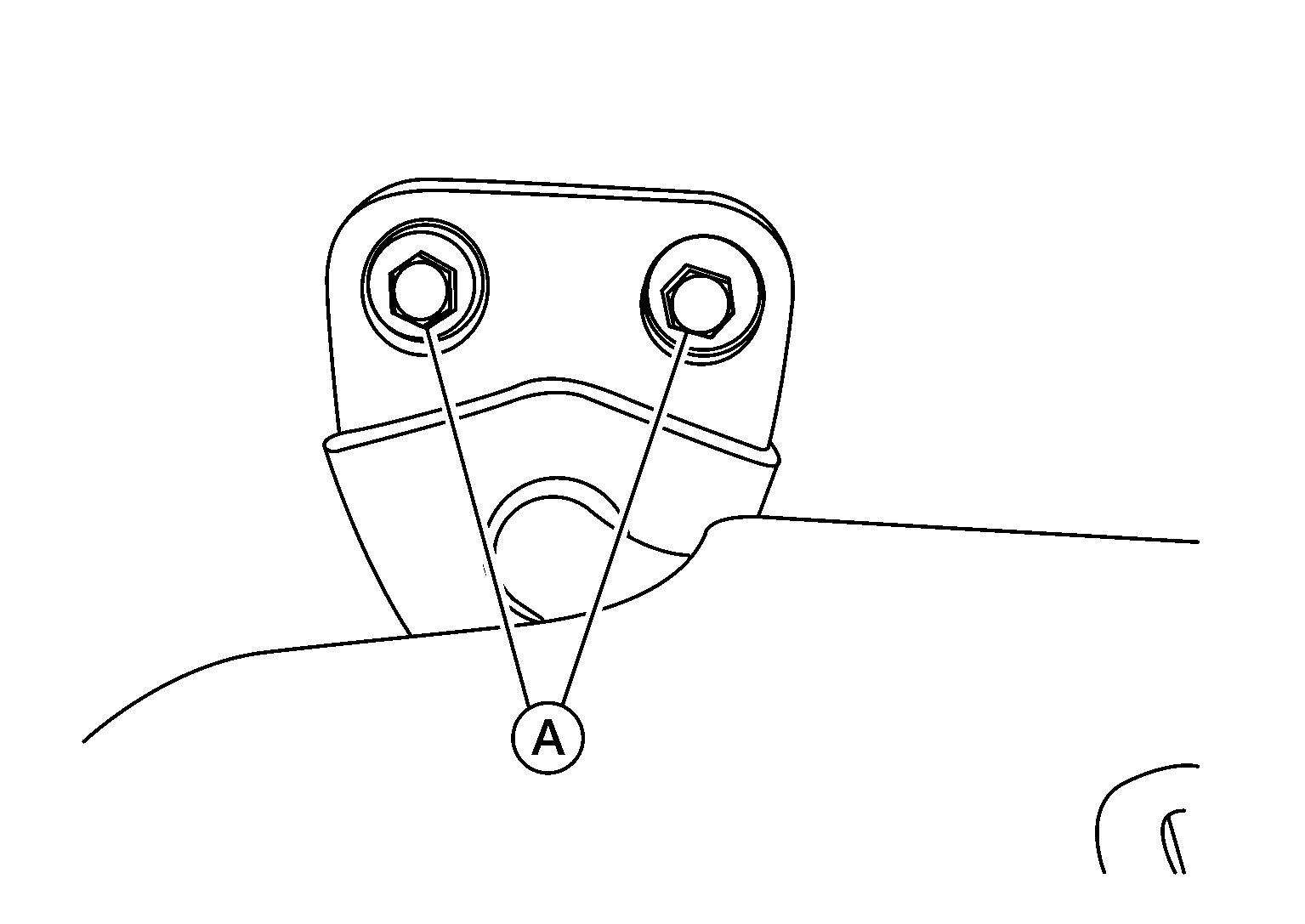

  12. Remove sun visor bolts (A) (LH/RH) then disconnect harness connectors and remove.
    GNSALJIA1362Z-362Courtesy of NISSAN NORTH AMERICA, INC.
  13. Insert suitable tool (A) at approximately a 30-degree angle into sun visor holder notch on front of sun visor holder (1). Press in to release locking tab (B). While holding in locking tab (B), turn sun visor holder (1) 90-degrees to release it from headliner.
    GNSALJIA0537Z-537Courtesy of NISSAN NORTH AMERICA, INC.
    • If sun visor holder (1) does not fully rotate, make sure that suitable tool (A) is pressing in on locking tab (B) and is not positioned under locking tab (B). Reinsert suitable tool (A) as necessary to release locking tab (B).

      SYMBOL

      : Front
    CAUTION: Do not force sun visor holder when removing as locking tab may be damaged if suitable tool is not positioned correctly.
  14. Remove front room/map lamp assembly. Refer to Removal and Installation .
  15. If model is equipped with a sunroof, release dual lock fasteners around the sunroof opening.
  16. Using suitable tool, release three hidden clips near rear edge of headlining.
  17. Disconnect harness connectors from active noise control microphones (center/rear), then if necessary remove active noise control microphones (center/rear).

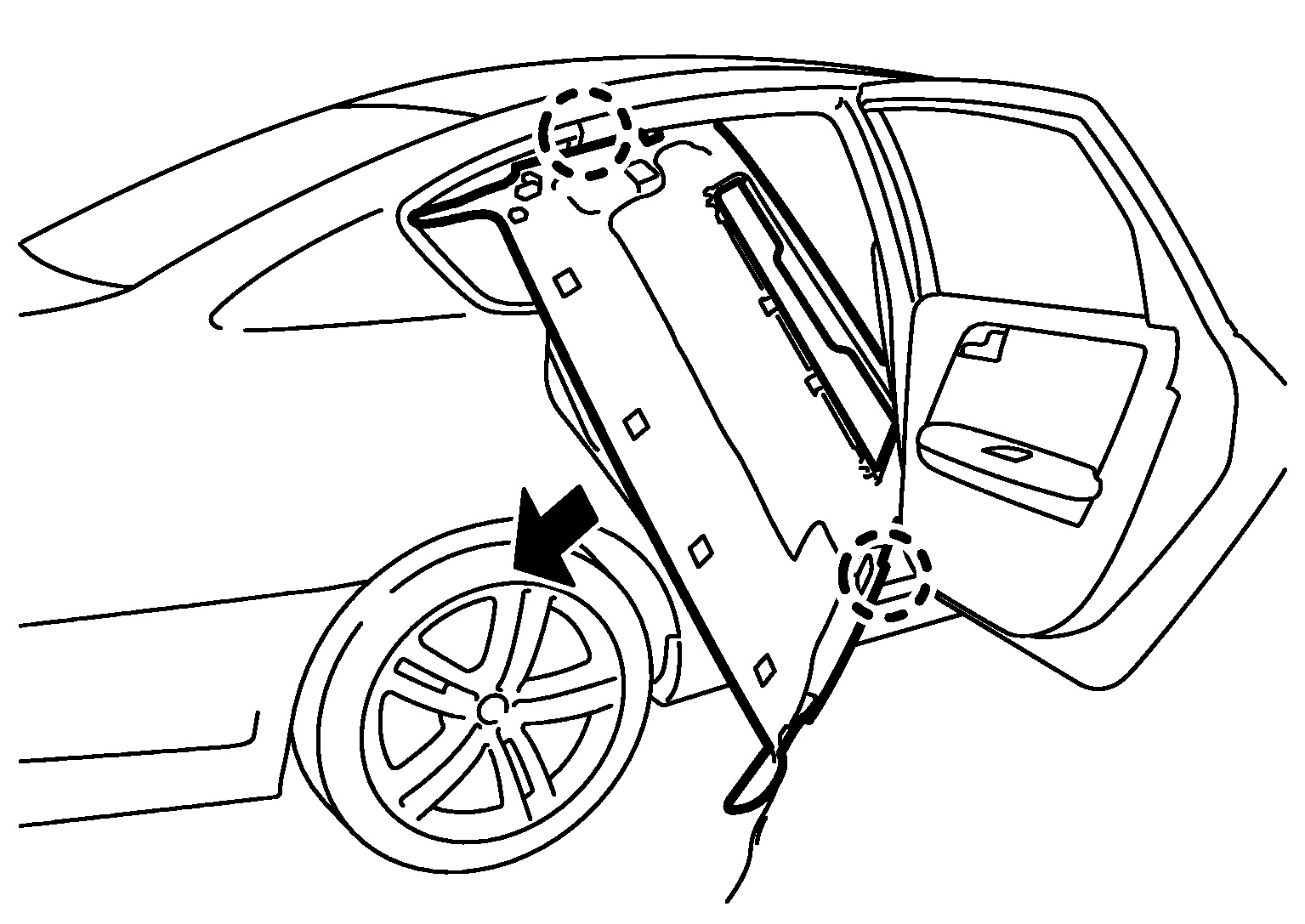

  18. Lower headlining down and carefully rotate into position. Remove headlining through rear door opening.
    G04145853Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • Two people are required for removal to prevent damage to headlining.
    • Apply protective tape to the portion where contact may occur during work.
    • Do not bend headlining when removing.
