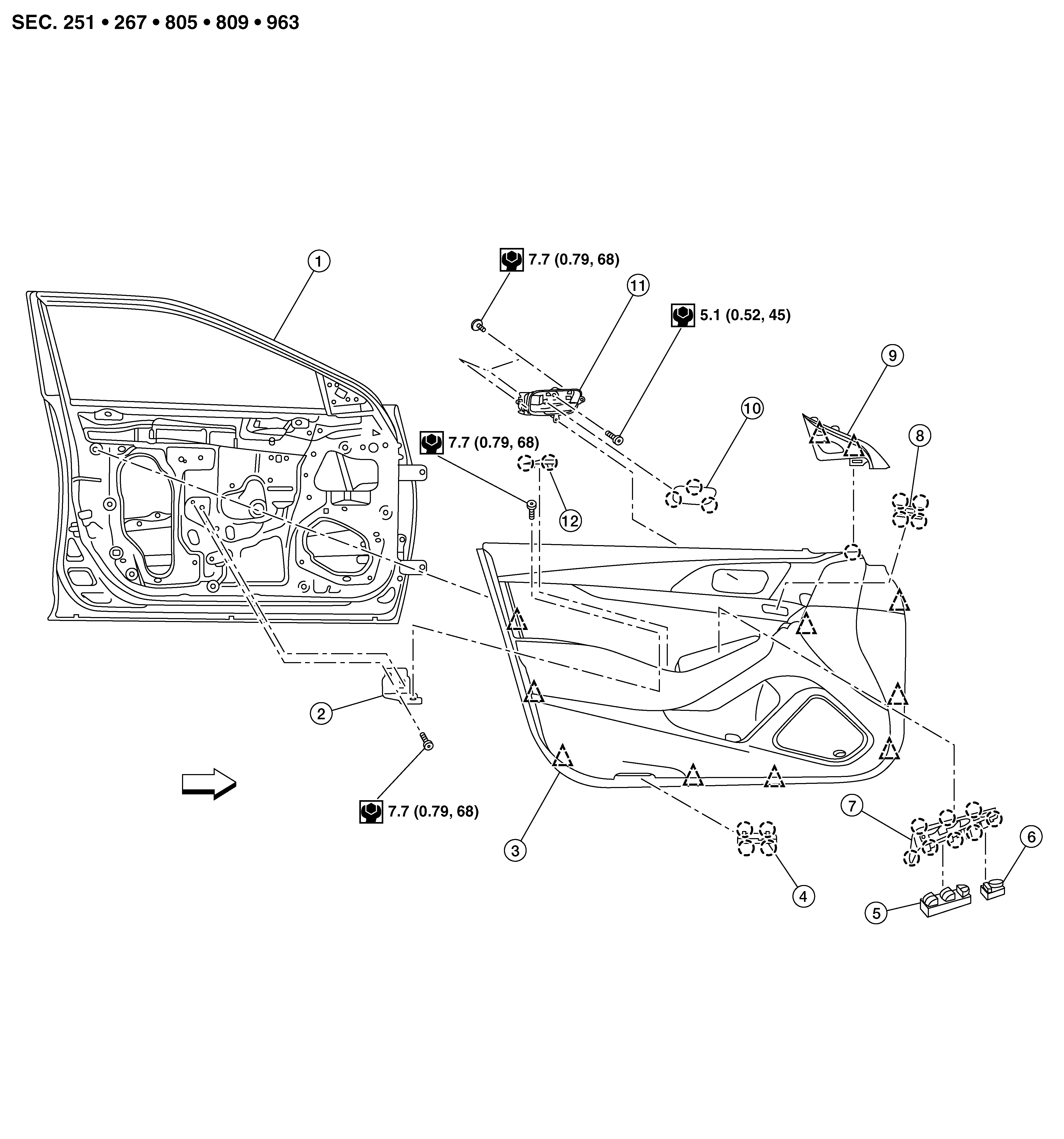

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown above.
|
1. |
Front door panel |
2. |
Front door finisher bracket |
3. |
Front door finisher |
|
4. |
Step lamp |
5. |
Main power window and door lock/ unlock switch |
6. |
Door mirror remote control switch |
|
7. |
Main power window and door lock/ unlock switch finisher |
8. |
Seat memory switch (if equipped) |
9. |
Front door mirror corner cover |
|
10. |
Inside door handle escutcheon |
11. |
Inside door handle |
12. |
Front door pull handle cover |
|
|
Pawl |
|
Clip |
|
Front |
