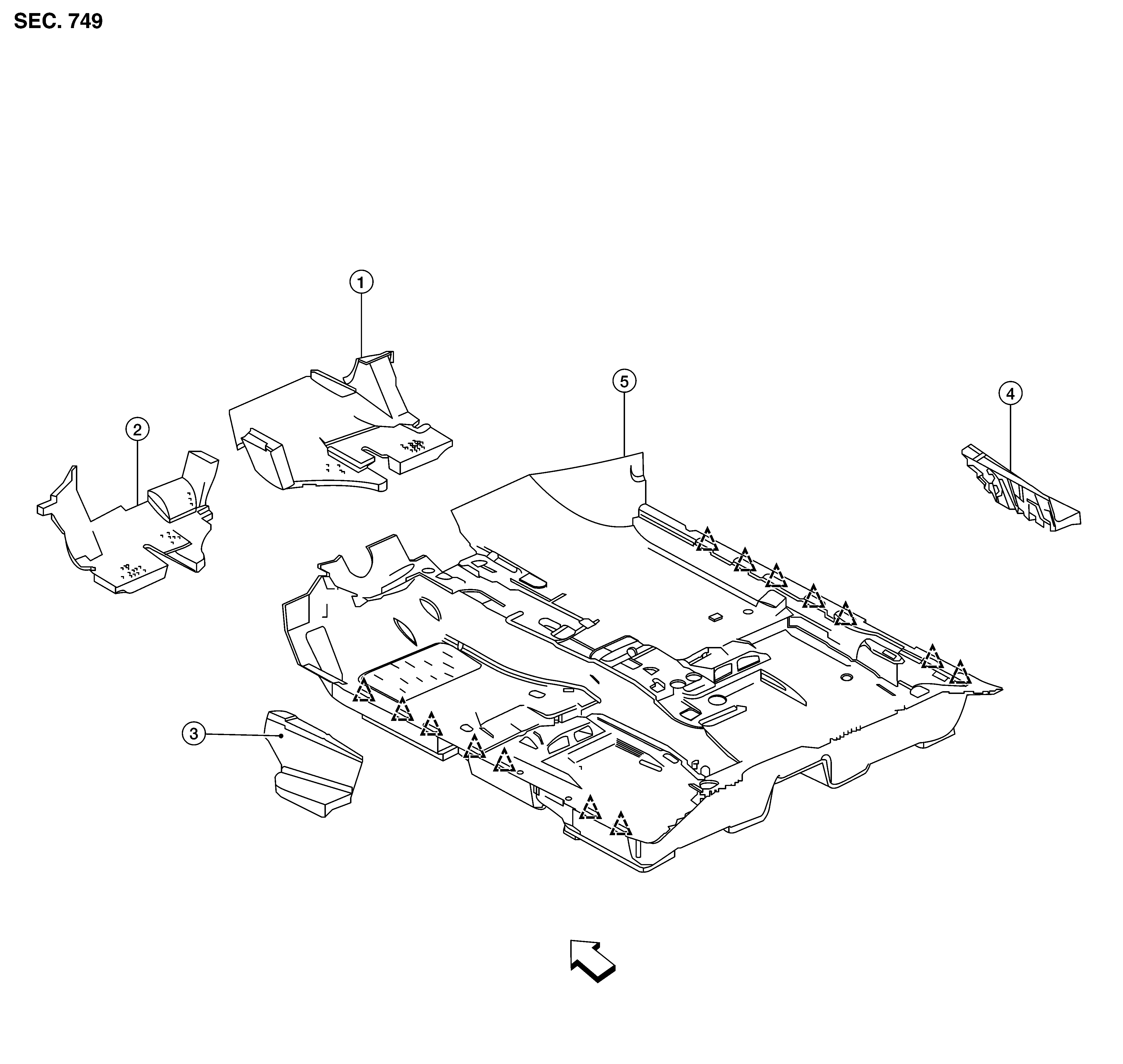

Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Spacer (RH)	2.	Spacer (LH)	3.	Center spacer (LH)
4.	Center spacer (RH)	5.	Front floor trim		Harness clip
	Front
