Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front kicking plate inner. Refer to Removal and Installation - Inner .

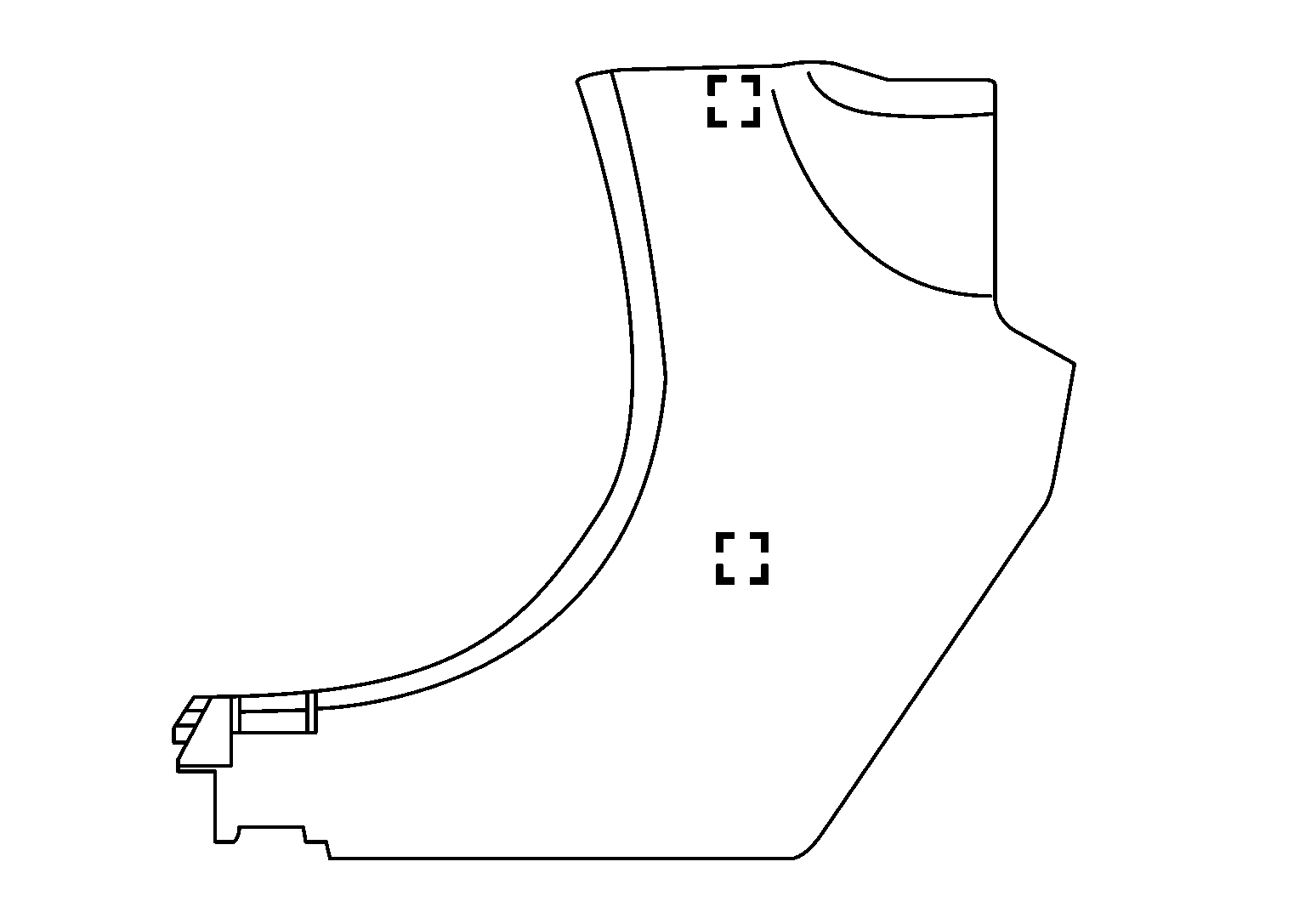

  2. Using a suitable tool, release metal clips, then remove dash side finisher.
    GNSAWJIA1859Z-859Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Metal clip
