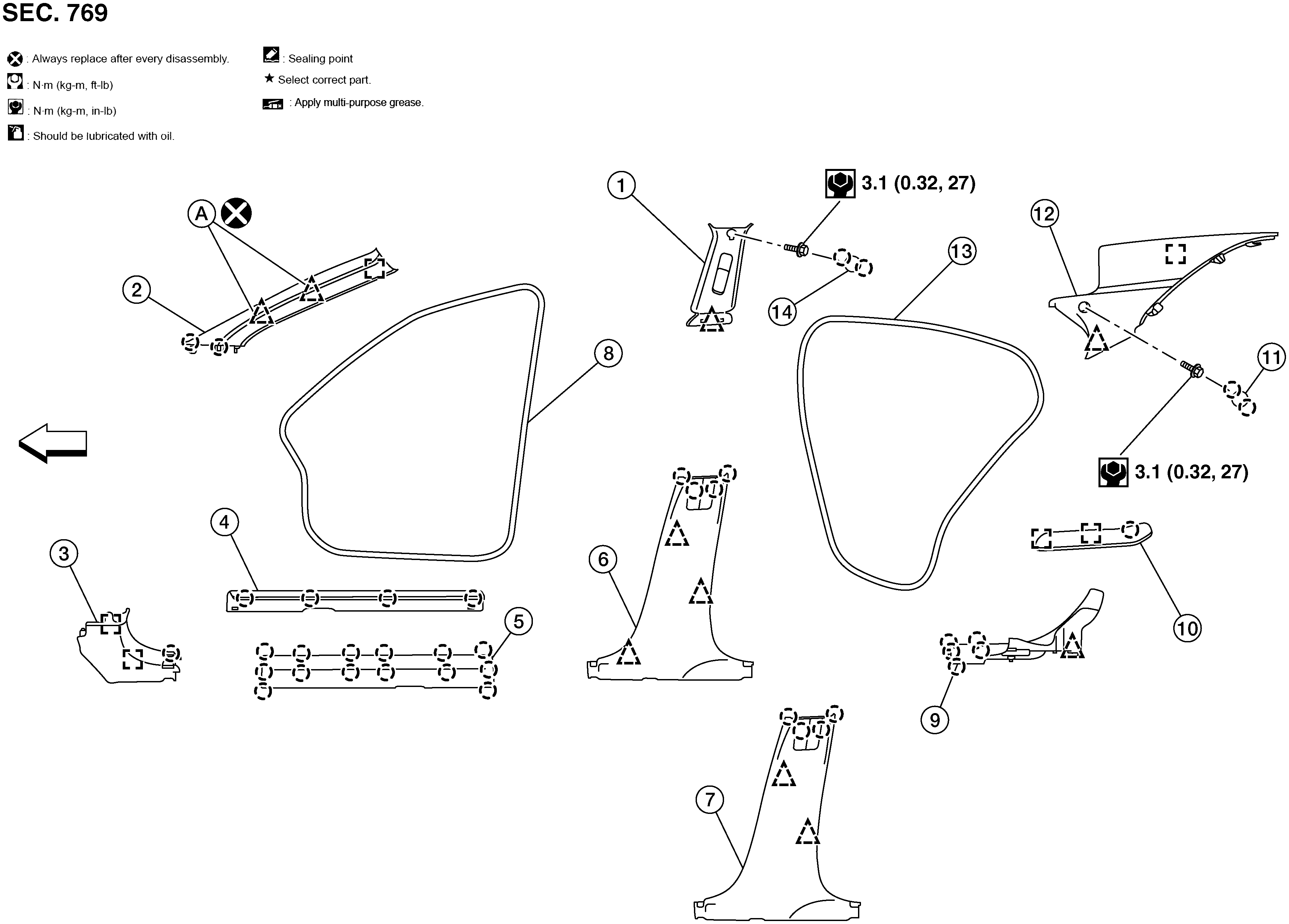

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown above.
|
1. |
Center pillar upper finisher |
2. |
Front pillar finisher |
3. |
Dash side finisher |
|
4. |
Front kicking plate outer |
5. |
Front kicking plate inner |
6. |
Center pillar lower finisher (early production) |
|
7. |
Center pillar lower finisher (late production) |
8. |
Front body side welt |
9. |
Rear kicking plate inner |
|
10. |
Rear kicking plate outer |
11. |
Rear pillar finisher cover |
12. |
Rear pillar finisher |
|
13. |
Rear body side welt |
14. |
Center pillar upper finisher cover |
A. |
Tether clip |
|
|
Clip |
|
Pawl |
|
Metal clip |
|
|
Front |
