Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the shift selector to the N position and release the parking brake.
  2. Put matching marks on the rear propeller shaft flange yoke and the companion flange A/T assembly as shown.
    GNSALDIA0233Z-233Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: For matching marks, use paint. Do not damage the rear propeller shaft flange yoke or the companion flange.

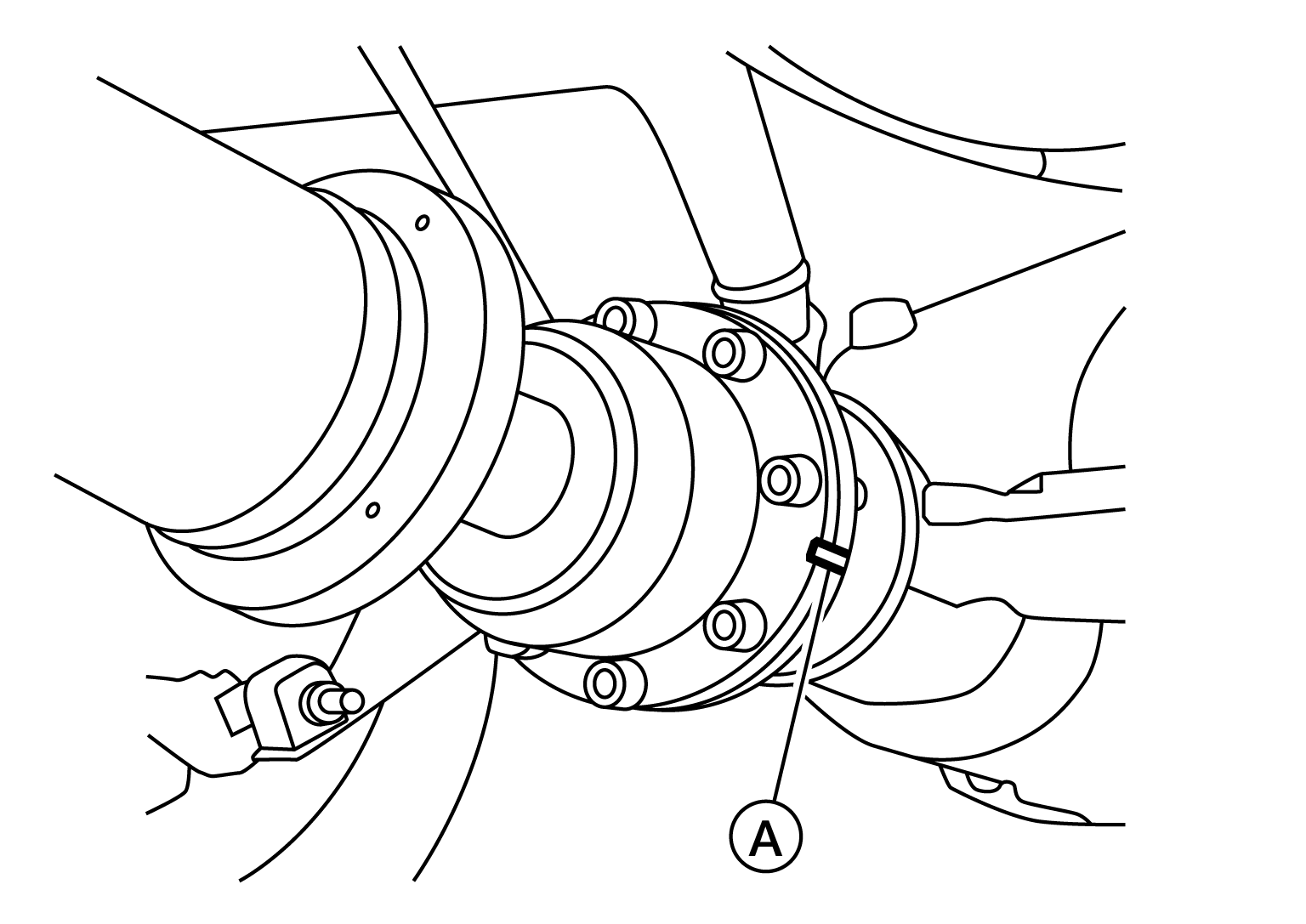

  3. Put matching marks (A) on the rear propeller shaft flange yoke and the companion flange of the rear final drive as shown.
    GNSDB119317Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: For matching marks, use paint. Do not damage the rear propeller shaft flange yoke or the companion flange when removing and installing propeller shaft, be careful so as not to let the propeller shaft hang down.
  4. Install suitable tool (A) to CVJ boots to prevent damage during removal.
    GNSAWDIA1501Z-501Courtesy of NISSAN NORTH AMERICA, INC.

    (A)

    : suitable tool

    (B)

    : 3F(2CVJ)

    (C)

    : 3S(2CVJ)

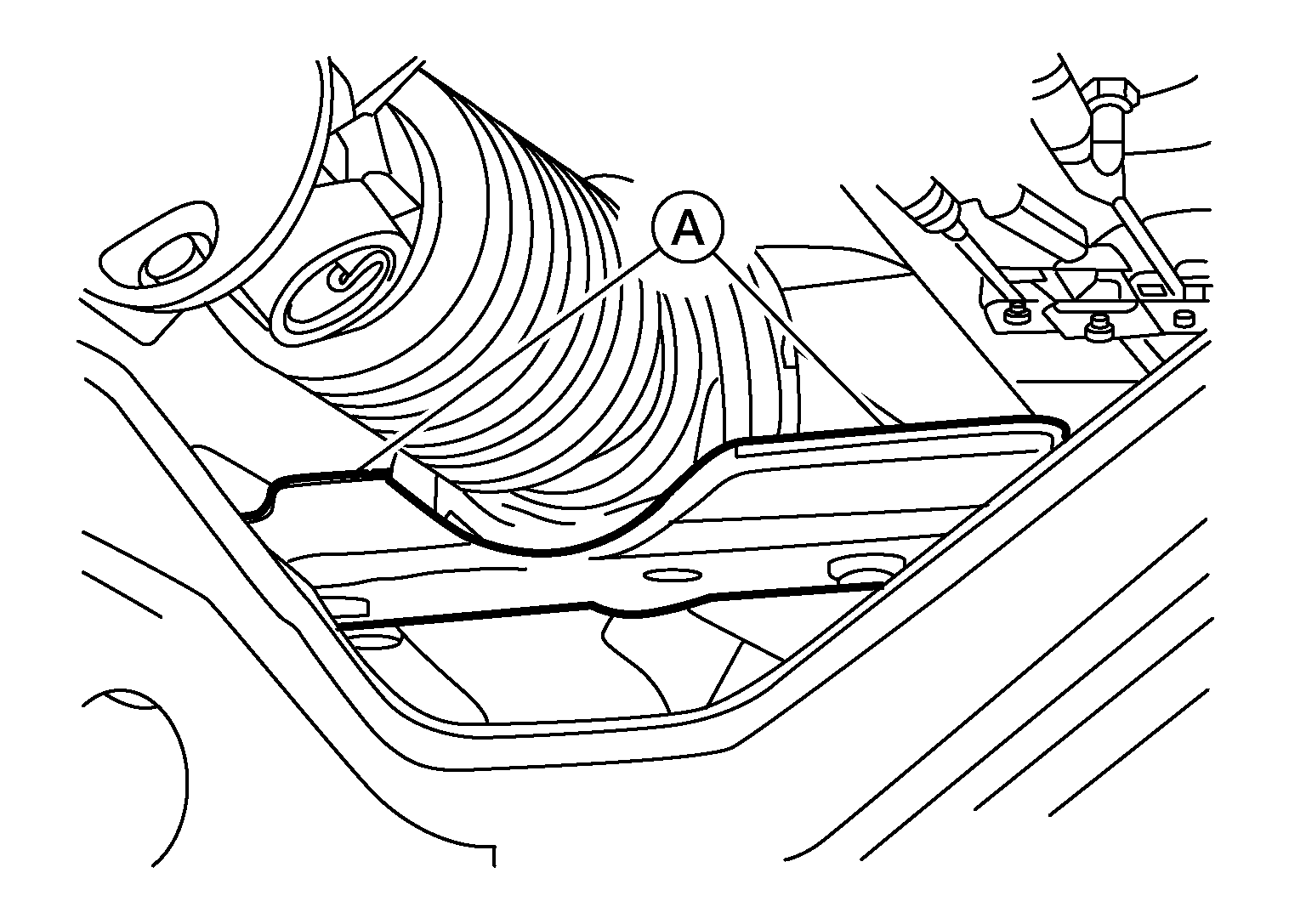

  5. Remove the center support bearing bracket nuts (A), and remove the propeller shaft from the vehicle.
    GNSALDIA1003Z-003Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not damage CVJ boot by bending propeller shaft during removal and installation. Be careful so as not to let the propeller shaft hang down.
  6. Remove bolts fixing propeller shaft to A/T assembly (2WD) or transfer case (4WD).
  7. Remove bolts fixing propeller shaft to rear final drive and remove propeller shaft from vehicle.
