Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front under cover. Refer to Removal and Installation .
  2. Remove engine under cover. Refer to Removal and Installation .
  3. Remove floor under cover. Refer to Removal and Installation .
  4. Remove wheel hubs. Refer to Removal and Installation .
  5. Remove bolts (A) then remove rear diagonal cross member (1) [(LH/RH)] (Non-XD models).
    GNSDB124032Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH shown, LH similar.
  6. Remove bolts and nuts (A) from front cross member (1), then remove front cross member (Non-XD models).
    GNSDB119423Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse nuts.
  7. Remove front drive shafts (LH/RH). Refer to Removal and Installation .
  8. Remove front propeller shaft. Refer to Removal and Installation .
  9. Disconnect the breather hose from the front final drive assembly. Refer to Removal and Installation .

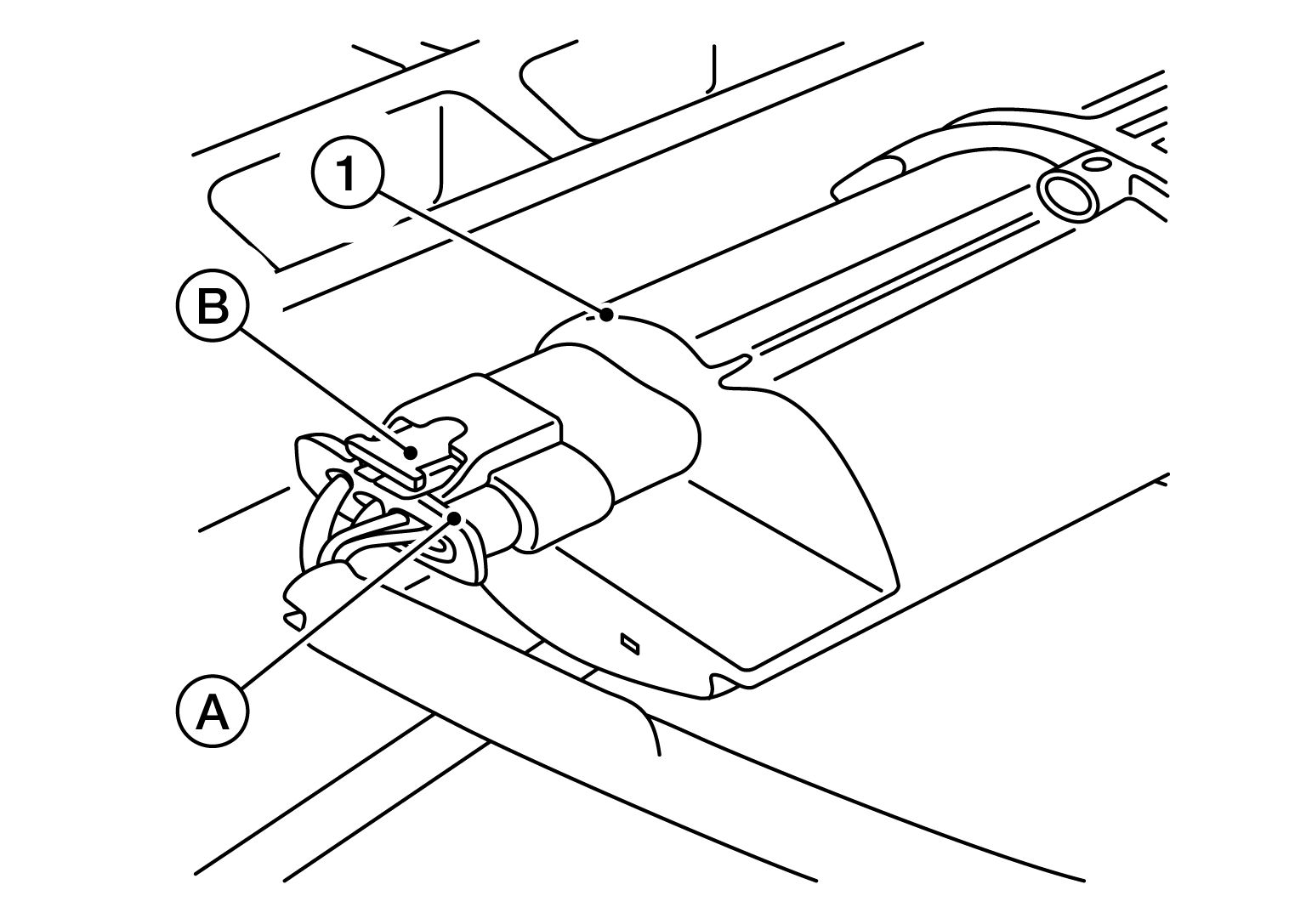

  10. Disconnect the harness connector (A) from the actuator (1).
    GNSDB122920Courtesy of NISSAN NORTH AMERICA, INC.
    1. Pull lockpin (B) on harness connector (A) out.
      NOTE: Lock pin is shown in the pulled out position.
    2. Separate harness connector from the actuator.
  11. Support the front final drive assembly using a suitable jack.

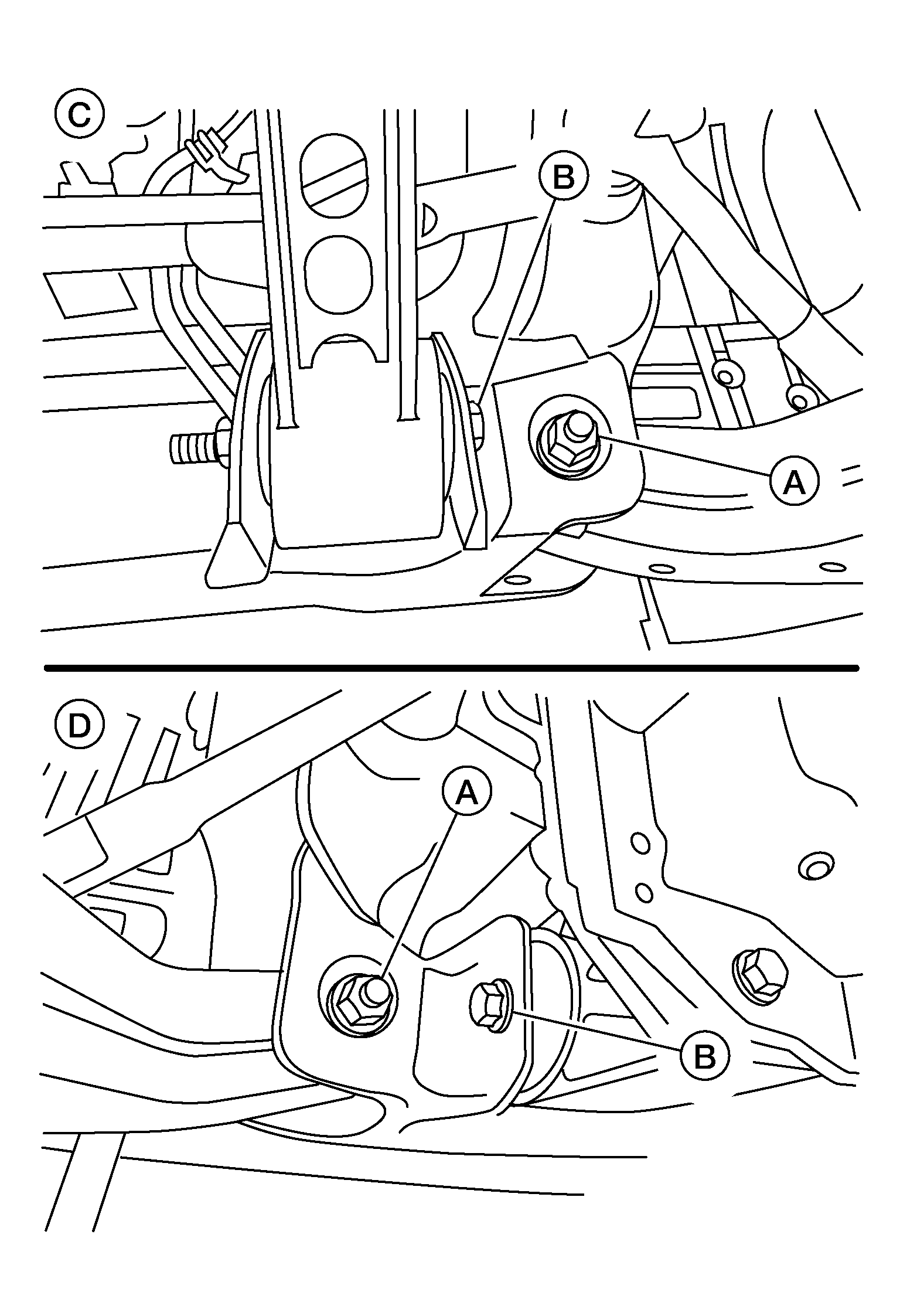

  12. Loosen front lower link bolts (A) enough to remove final drive assembly bolts (B).
    GNSDB120794Courtesy of NISSAN NORTH AMERICA, INC.

    (C)

    : Passenger side

    (D)

    : Driver side
  13. Remove the front final drive assembly bolts, then remove the front final drive assembly.
    CAUTION: Support the front final drive assembly while removing using a suitable jack.
