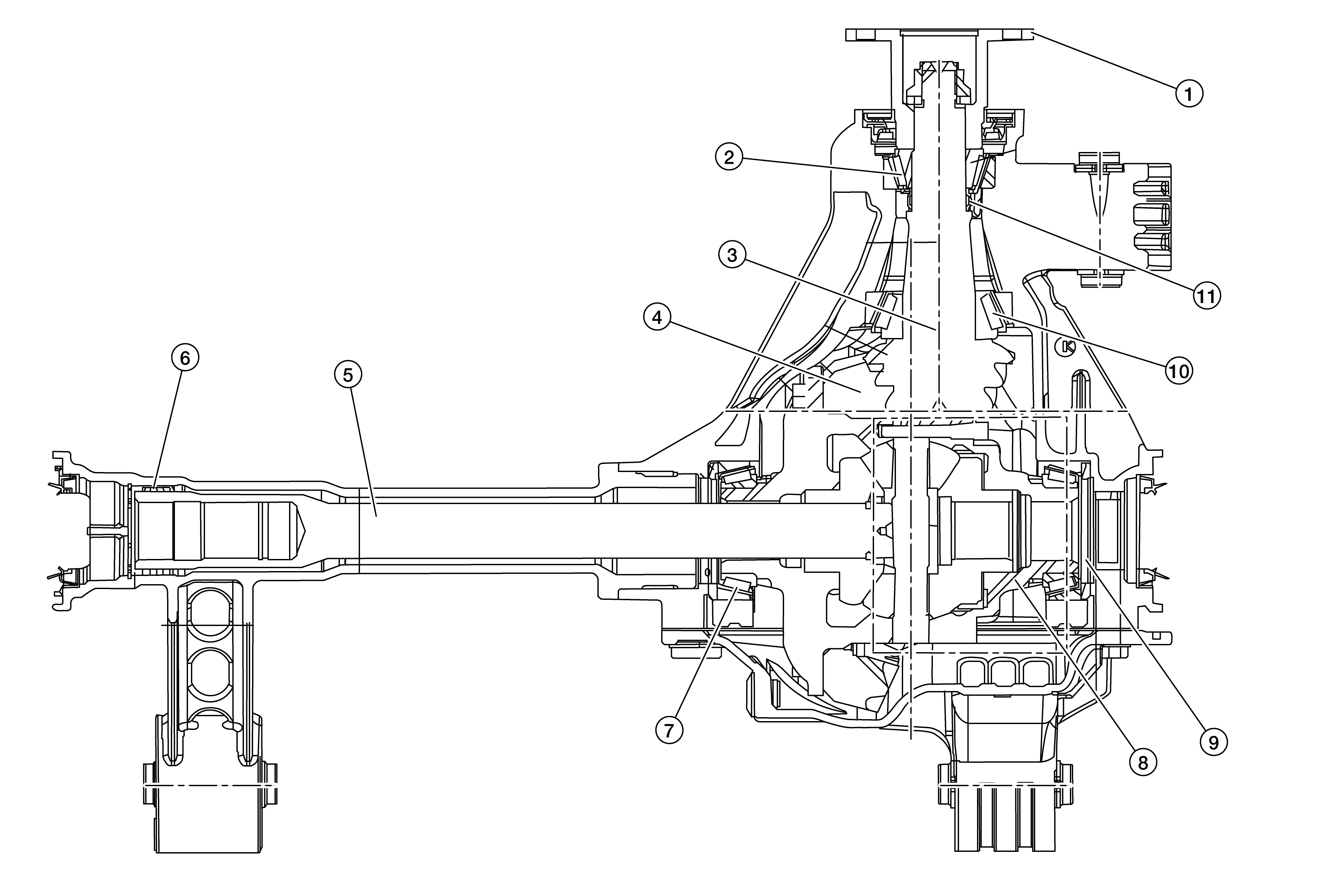

Sectional View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Companion flange
|
2.
|
Pinion front bearing
|
3.
|
Drive pinion
|
|
4.
|
Drive gear
|
5.
|
Intermediate shaft
|
6.
|
Needle bearing
|
|
7.
|
Side bearing
|
8.
|
Differential assembly
|
9.
|
Differential shim
|
|
10.
|
Pinion rear bearing
|
11.
|
Collapsible spacer
|
