Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply multi-purpose grease to the lips of the new oil seal.
    CAUTION: Apply multi-purpose grease to the lips of the new side oil seal or damage to side oil seal can occur.

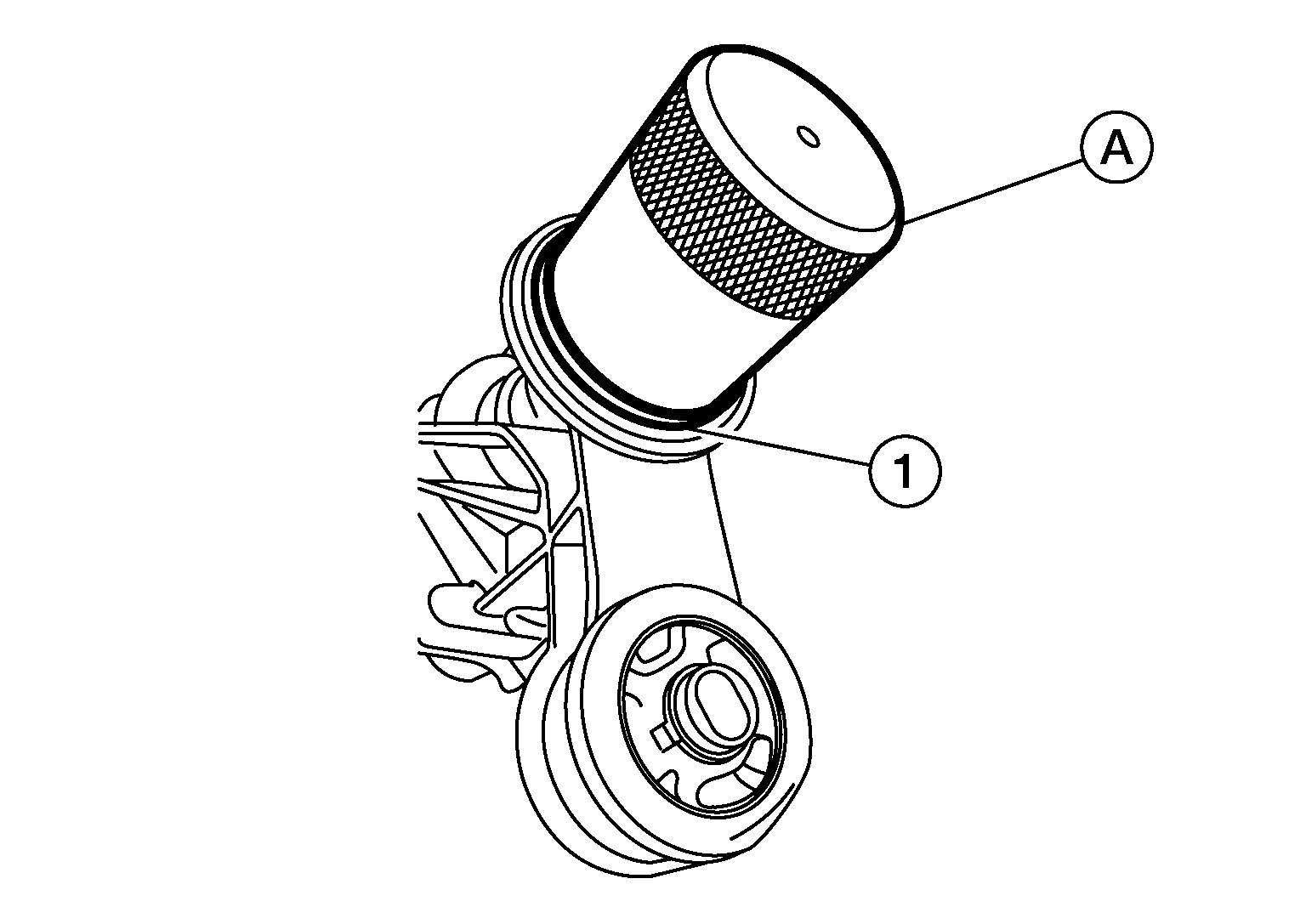

  2. Install the new side oil seal (1) evenly using Tool (A).
    GNSALDIA0966Z-966Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not incline the new side oil seal when installing.

    Tool

    : - (J-51873)
  3. Install the front drive shafts to the front final drive. Refer to Removal and Installation .
    CAUTION: Check the front differential gear oil level after installation. Refer to Inspection .
