Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine under cover. Removal and Installation .
  2. Remove the drive shafts (LH/RH). Refer to Removal and Installation .

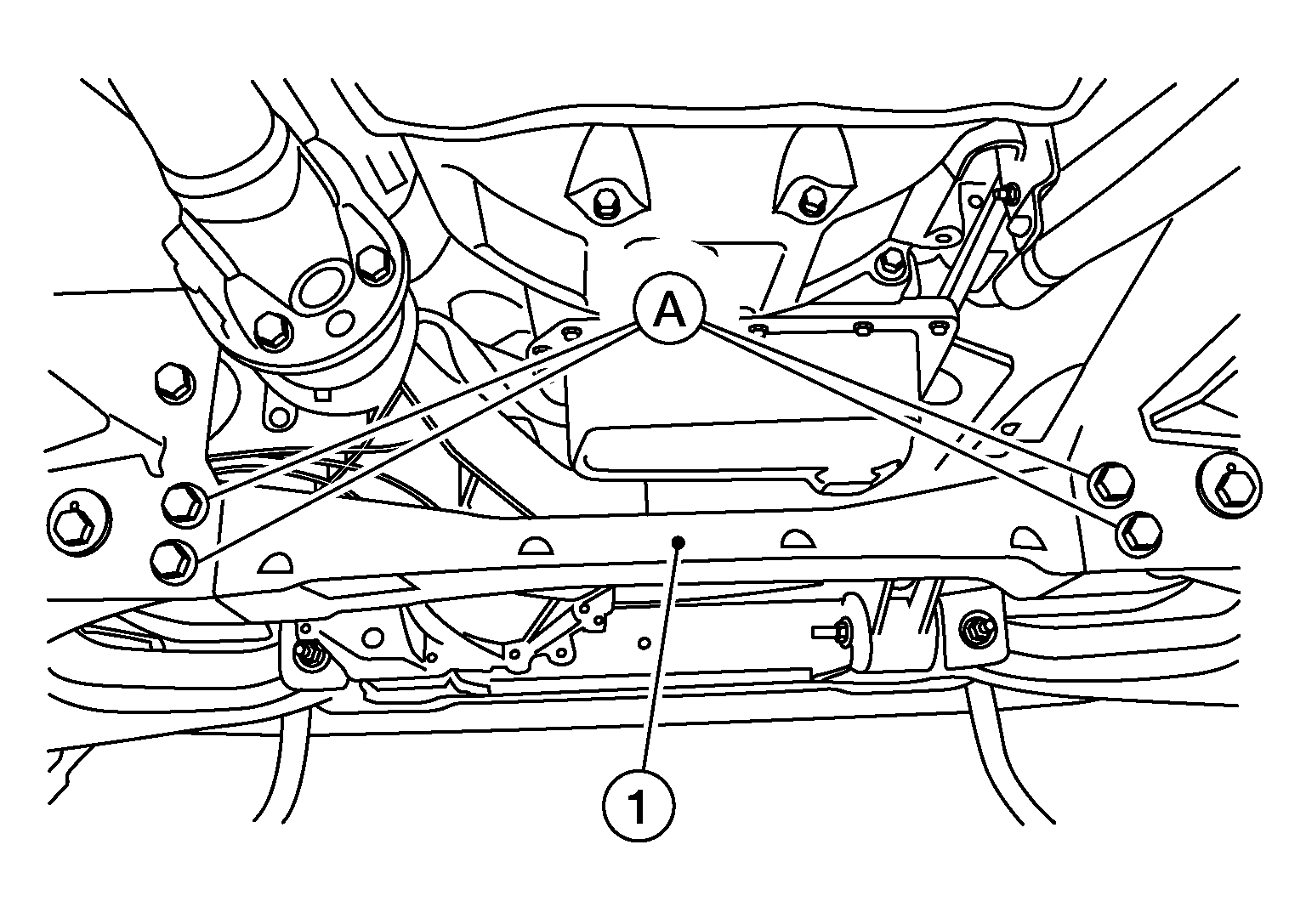

  3. Remove bolts (A) and remove front cross member (1).
    GNSDB121327Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the front propeller shaft. Refer to Removal and Installation .
  5. Disconnect the breather hose from the front final drive assembly. Refer to Removal and Installation: Cummins 5.0 L Models  (Cummins 5.0L models) or, Removal and Installation: VK56VD Models  (VK56VD models).
  6. Support the front final drive assembly using a suitable jack.
  7. Loosen front lower link bolts (A) enough to remove final drive assembly bolts (B).
    GNSDB120794Courtesy of NISSAN NORTH AMERICA, INC.

    (C)

    : Passenger side

    (D)

    : Driver side
  8. Remove the front final drive assembly bolts, then remove the front final drive assembly.
    CAUTION: Support the front final drive assembly while removing using a suitable jack.
