Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Drive Pinion Assembly

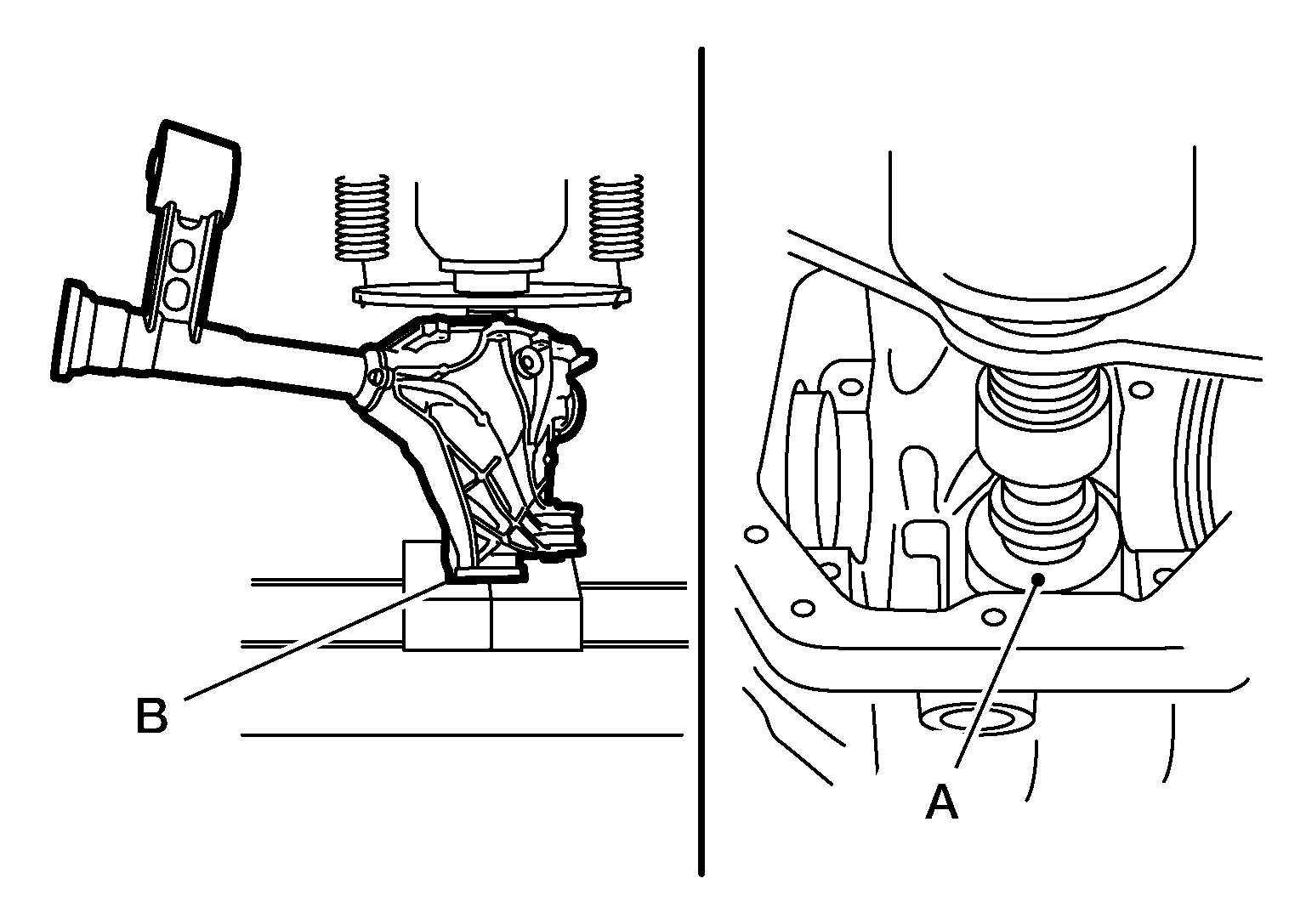

  1. Install drive pinion rear bearing outer race using Tool (A) and Tool (B).
    GNSAWDIA1399Z-399Courtesy of NISSAN NORTH AMERICA, INC.

    Tool (A)

    : --- (J-8092)

    Tool (B)

    : --- (J-51869)

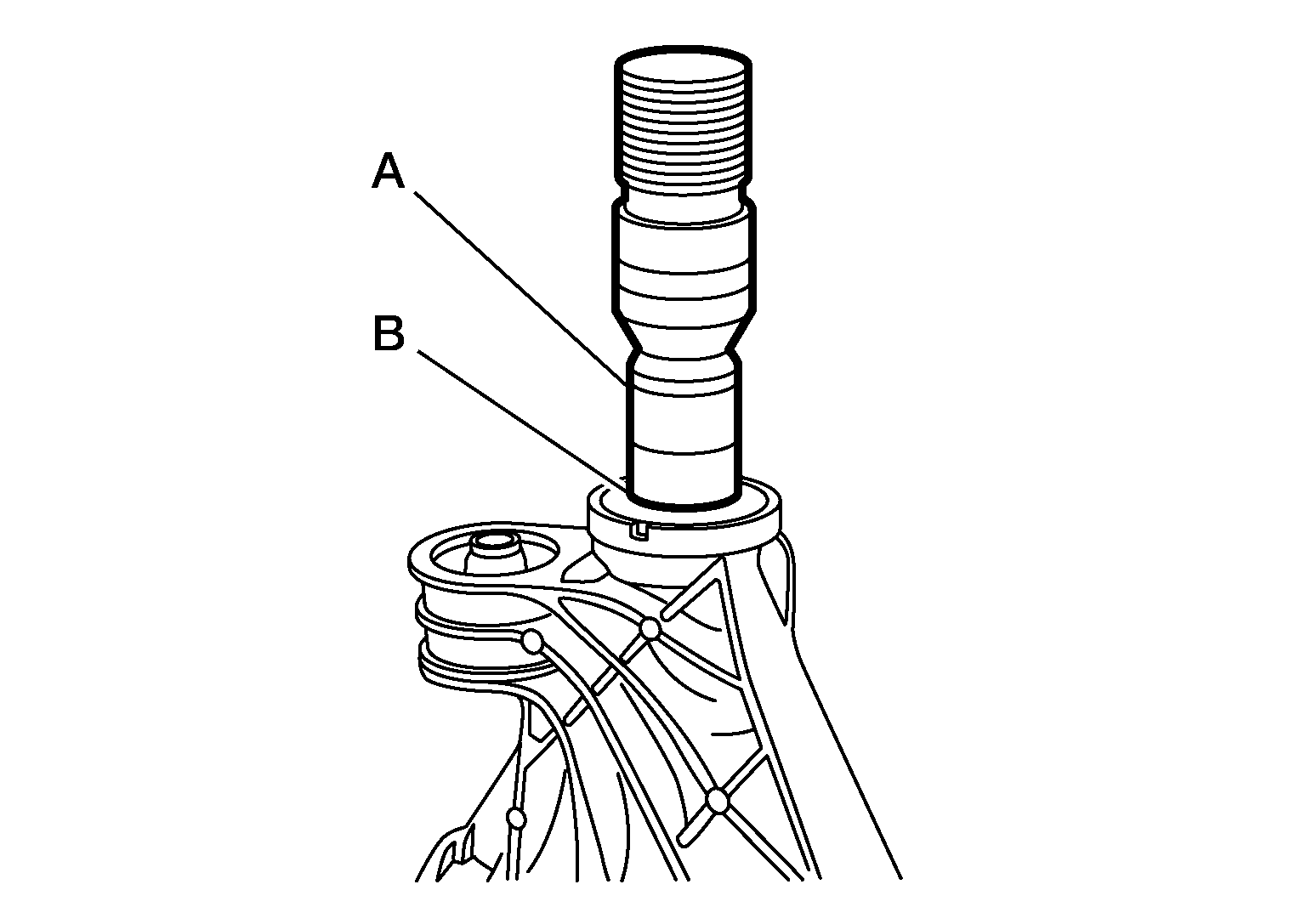

  2. Install drive pinion front bearing outer race using suitable tool (A) and suitable tool (B).
    GNSAWDIA1400Z-400Courtesy of NISSAN NORTH AMERICA, INC.
  3. Select drive pinion height adjusting washer.

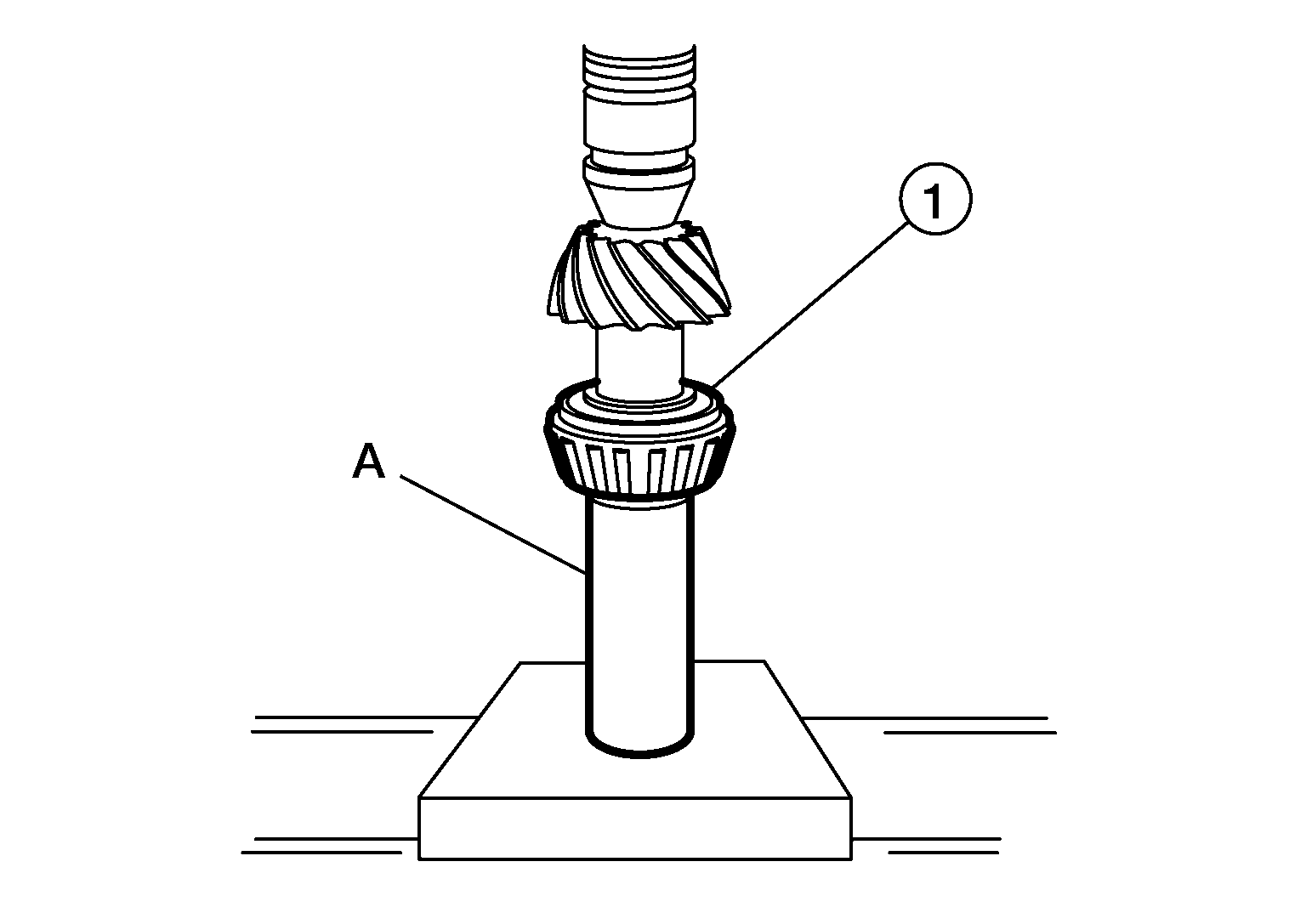

  4. Install the selected drive pinion height adjusting washer (1) to the drive pinion. Press the drive pinion rear bearing inner race to it using suitable tool (A).
    GNSAWDIA1401Z-401Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse drive pinion rear bearing inner race.
  5. Install the collapsible spacer to the drive pinion.
    CAUTION: Do not reuse collapsible spacer.
  6. Apply differential gear oil to the drive pinion rear bearing, and install the drive pinion assembly to the gear carrier.
  7. Apply differential gear oil to the drive pinion front bearing, and install the drive pinion front bearing inner race to the drive pinion assembly.
    CAUTION: Do not reuse drive pinion front bearing inner race.

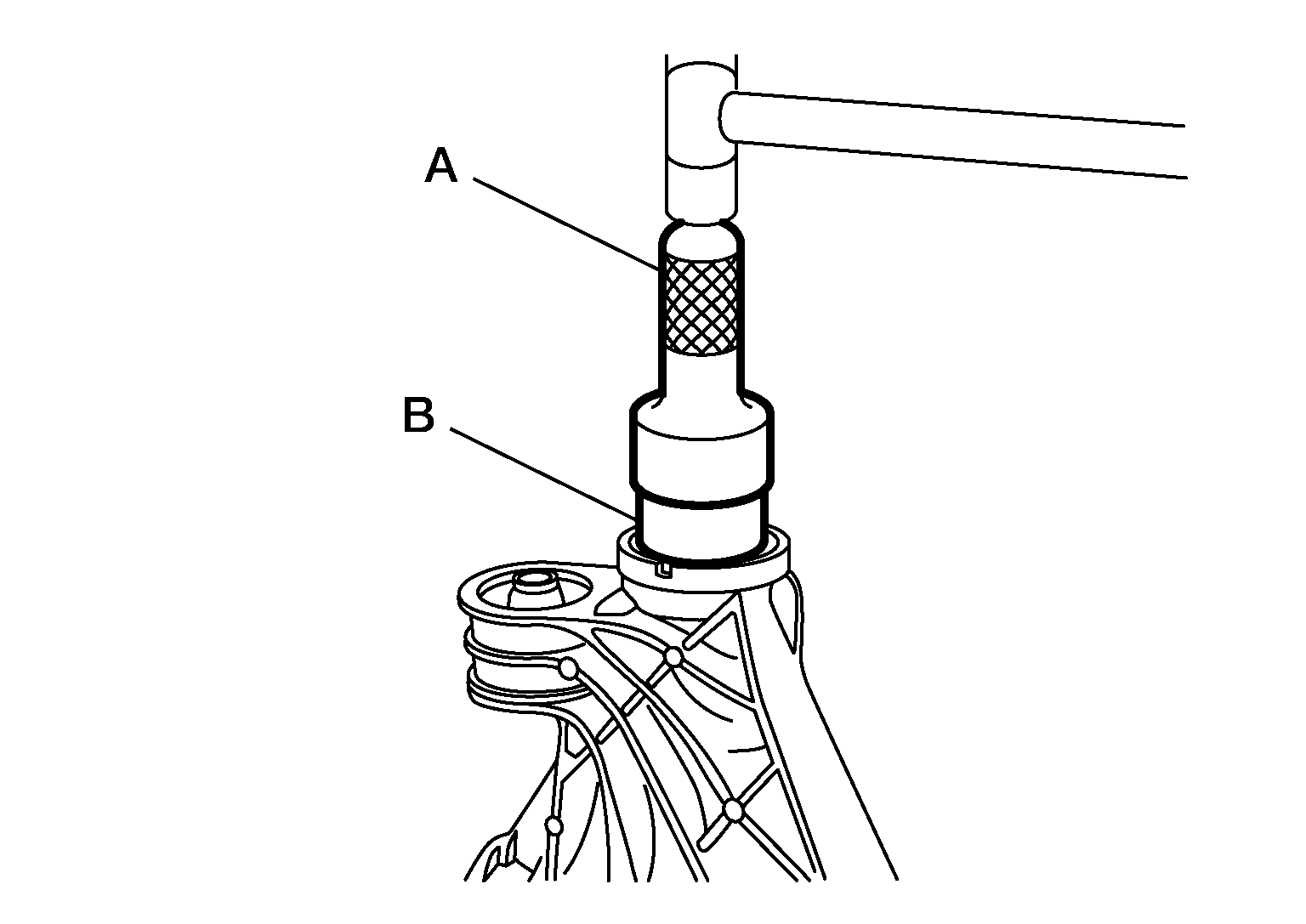

  8. Apply multi-purpose grease to the lips of the new front oil seal. Then drive the new front oil seal in evenly using Tools (A) and (B).
    GNSAWDIA1402Z-402Courtesy of NISSAN NORTH AMERICA, INC.

    Tool (A)

    : KV38100500 (J-25273)

    Tool (B)

    : --- (J-50982)
    CAUTION:
    • Do not reuse front oil seal.
    • Do not angle the new front oil seal when installing.
    • Apply multi-purpose grease to the lips of the new front oil seal.
  9. Install the companion flange to the drive pinion while aligning the matching marks. Tap the companion flange until fully seated using suitable tool.

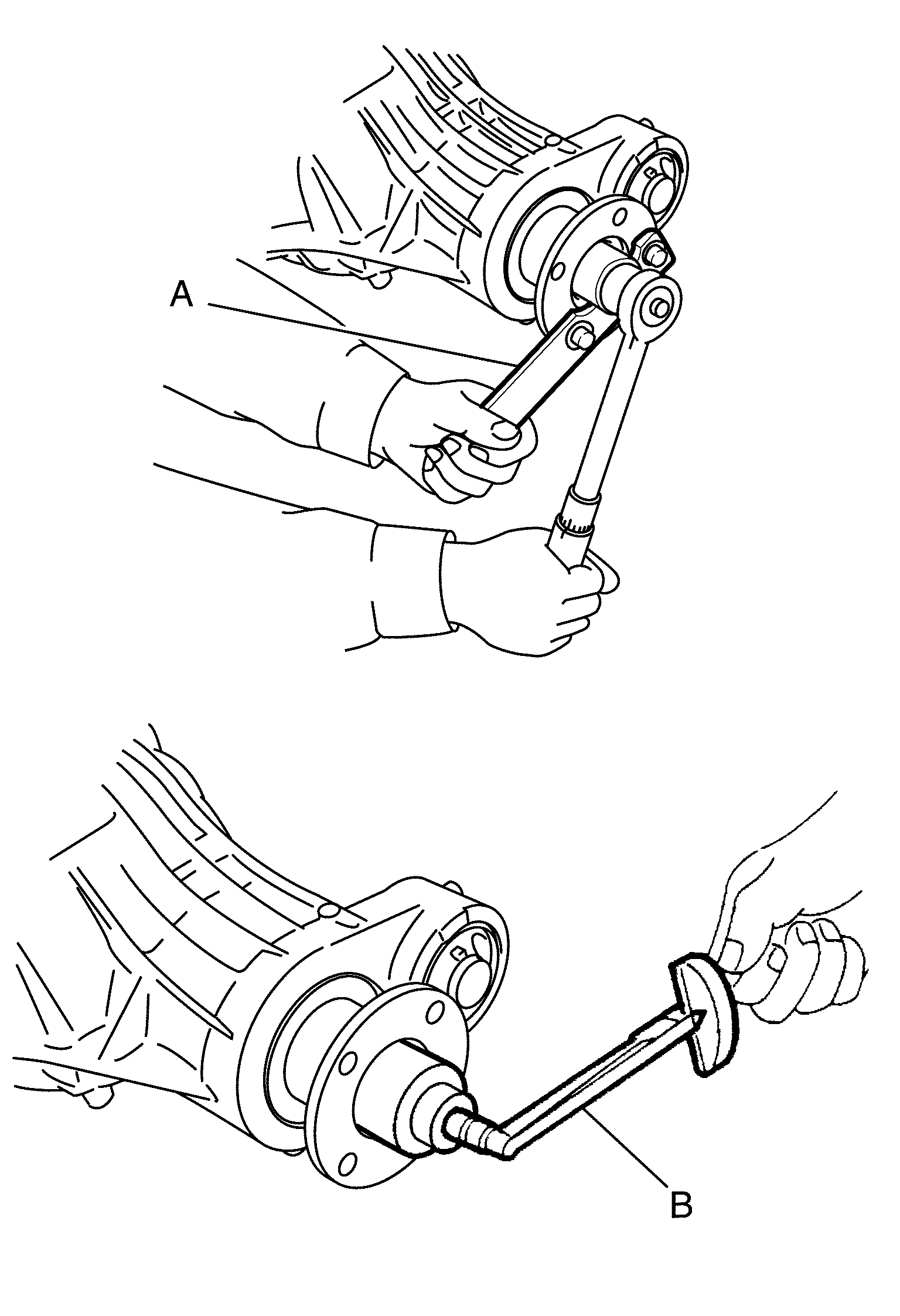

  10. Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut. Then adjust the drive pinion lock nut tightening torque using suitable tool (A), and check the drive pinion bearing preload torque using Tool (B).
    G04756698Courtesy of NISSAN NORTH AMERICA, INC.

    Tool number (B)

    : ST3127S000 (J-25765-A)

    Drive pinion bearing preload torque:

    Refer to Inspection and Adjustment .
    CAUTION:
    • Do not reuse drive pinion lock nut.
    • Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut.
    • Adjust the drive pinion lock nut tightening torque to the lower limit first. Do not exceed the drive pinion lock nut specified torque. Refer to Disassembly and Assembly .
    • If the drive pinion bearing preload torque exceeds the specified value, replace collapsible spacer and tighten it again to adjust. Do not loosen drive pinion lock nut to adjust the drive pinion bearing preload torque.
    • After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rotation malfunction, and other malfunctions.
  11. Check companion flange runout.
  12. Install the differential case assembly.

Differential Case Assembly

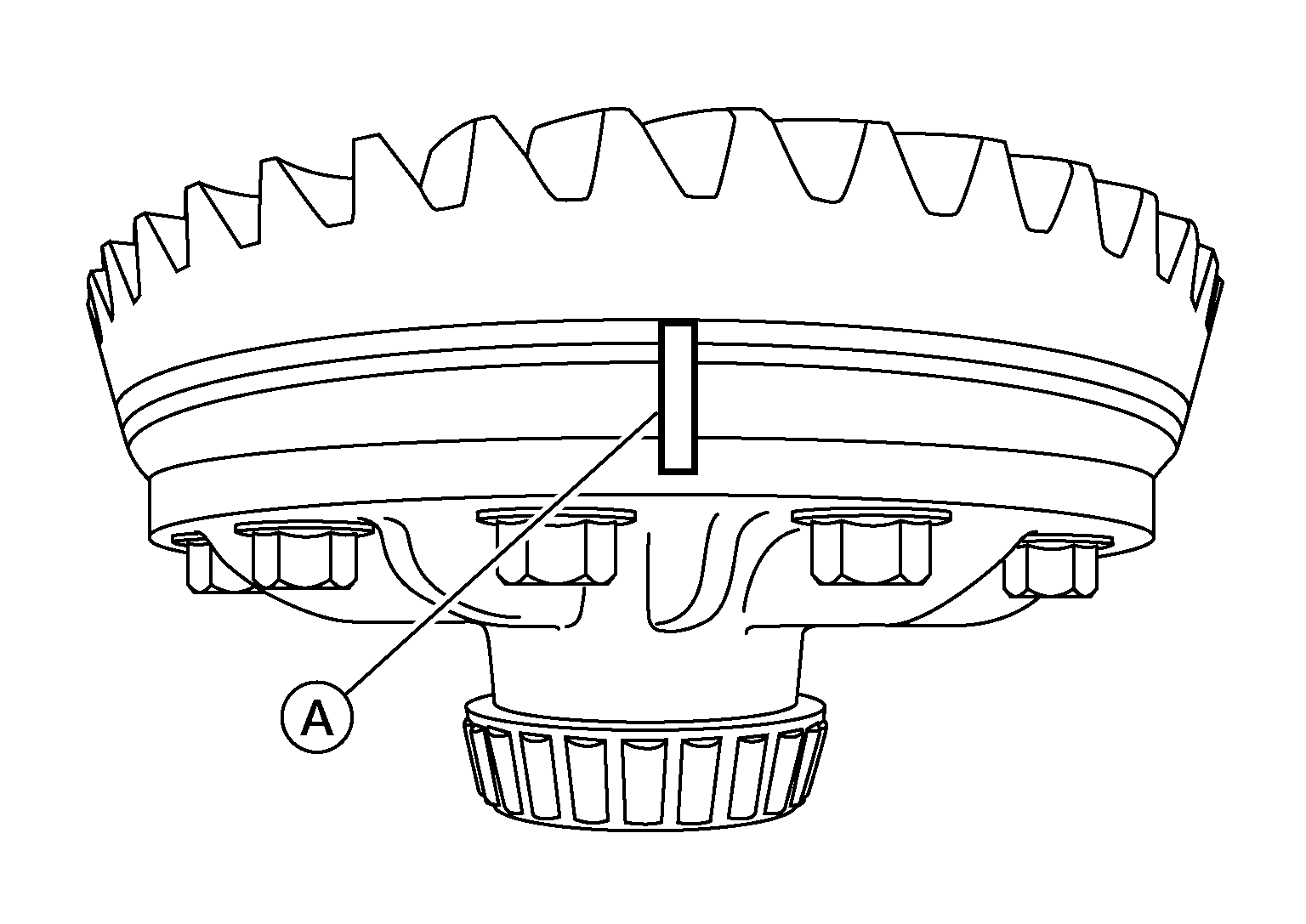

  1. Align the matching mark (A) of the differential case assembly with the mark of the drive gear, then place the drive gear onto the differential case assembly.
    GNSALDIA0757Z-757Courtesy of NISSAN NORTH AMERICA, INC.

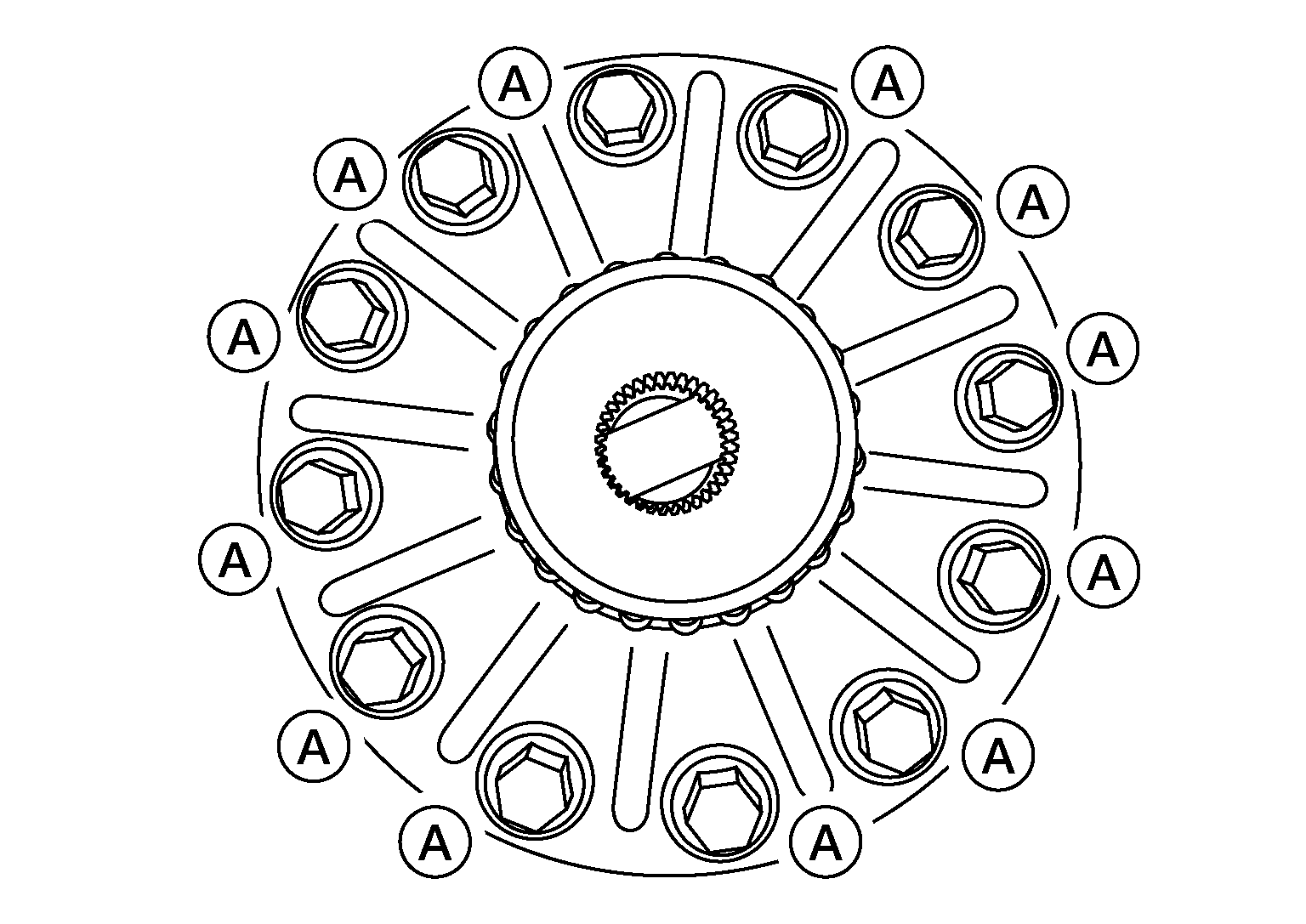

  2. Install and tighten the new drive gear bolts (A) to the specified torque.
    GNSALDIA0758Z-758Courtesy of NISSAN NORTH AMERICA, INC.

    Bolt (A)

    : 185 N.m (19 kg-m, 136 ft-lb)
    CAUTION:
    • Make sure the drive gear back and threaded holes are clean.
    • Do not reuse drive gear bolts.
    • Drive gear bolts are left hand threaded.
    • Tighten new drive gear bolts in a criss-cross pattern.

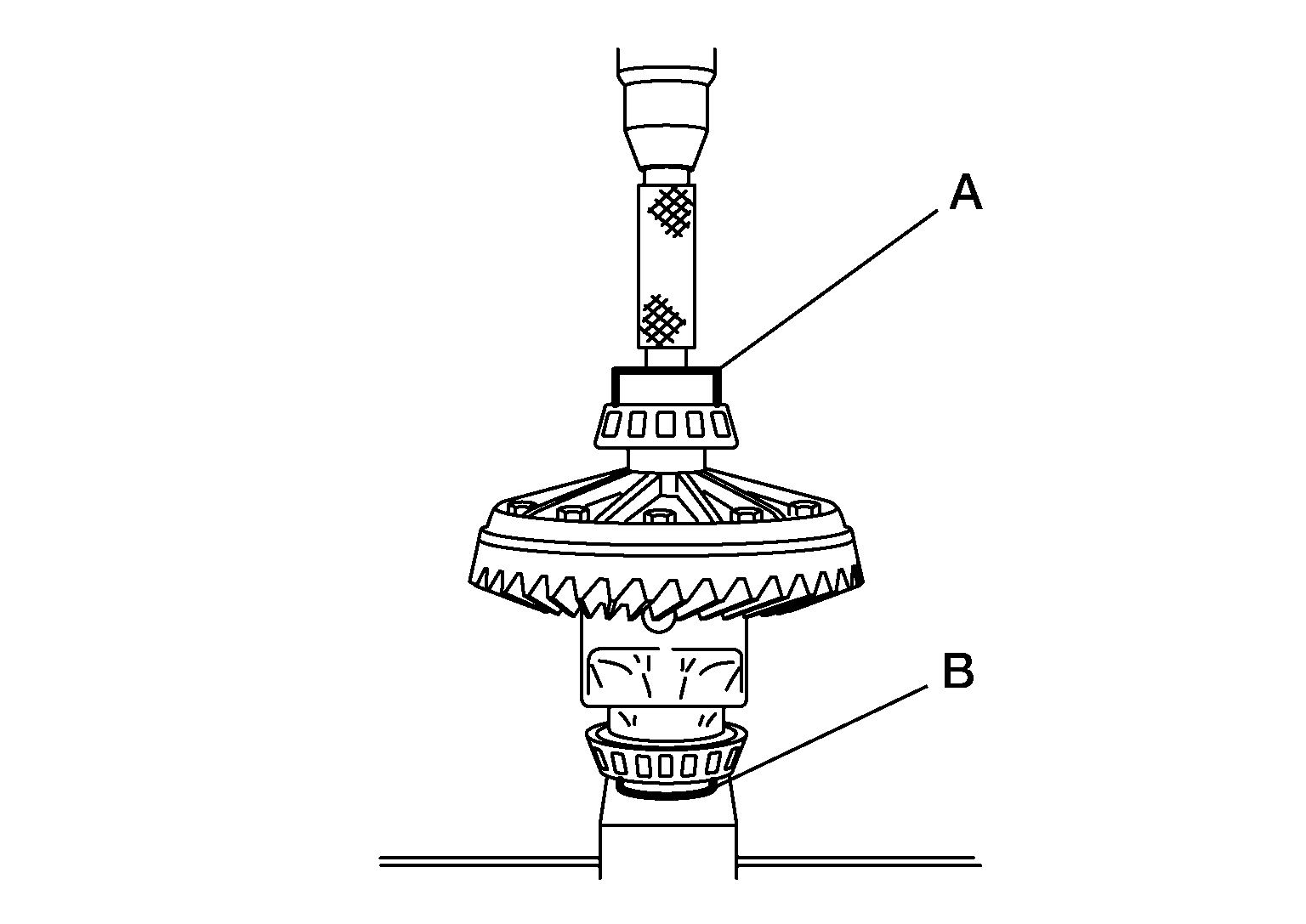

  3. Press the new side bearing inner races to the differential case assembly using suitable tool (A) and suitable tool (B).
    GNSAWDIA1403Z-403Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse side bearing inner races.

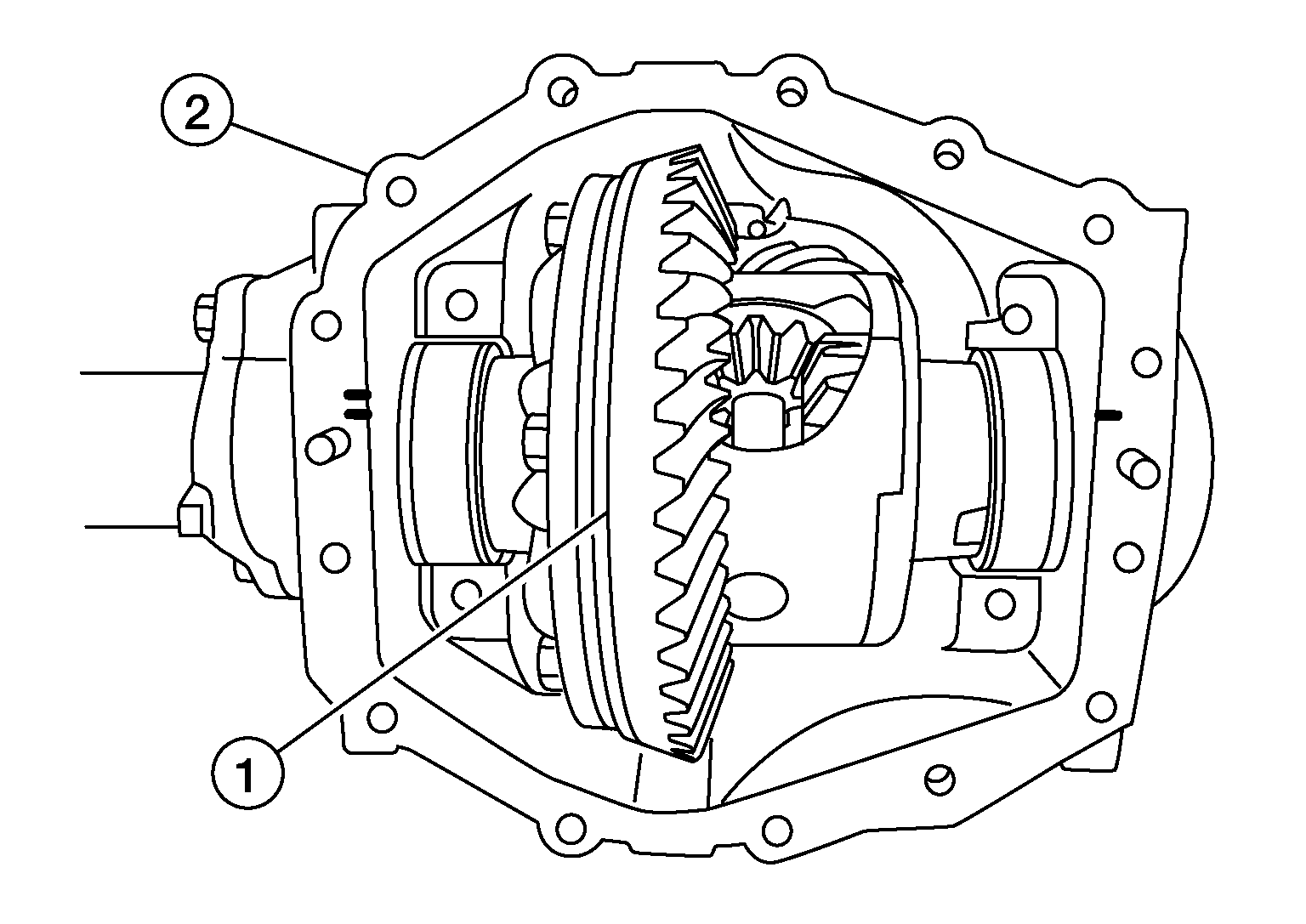

  4. Apply differential gear oil to the side bearings, and install the differential case assembly (1) with the side bearing outer races into the gear carrier (2).
    GNSALDIA0755Z-755Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse side bearing outer race when replacing side bearing inner race (replace as a set).

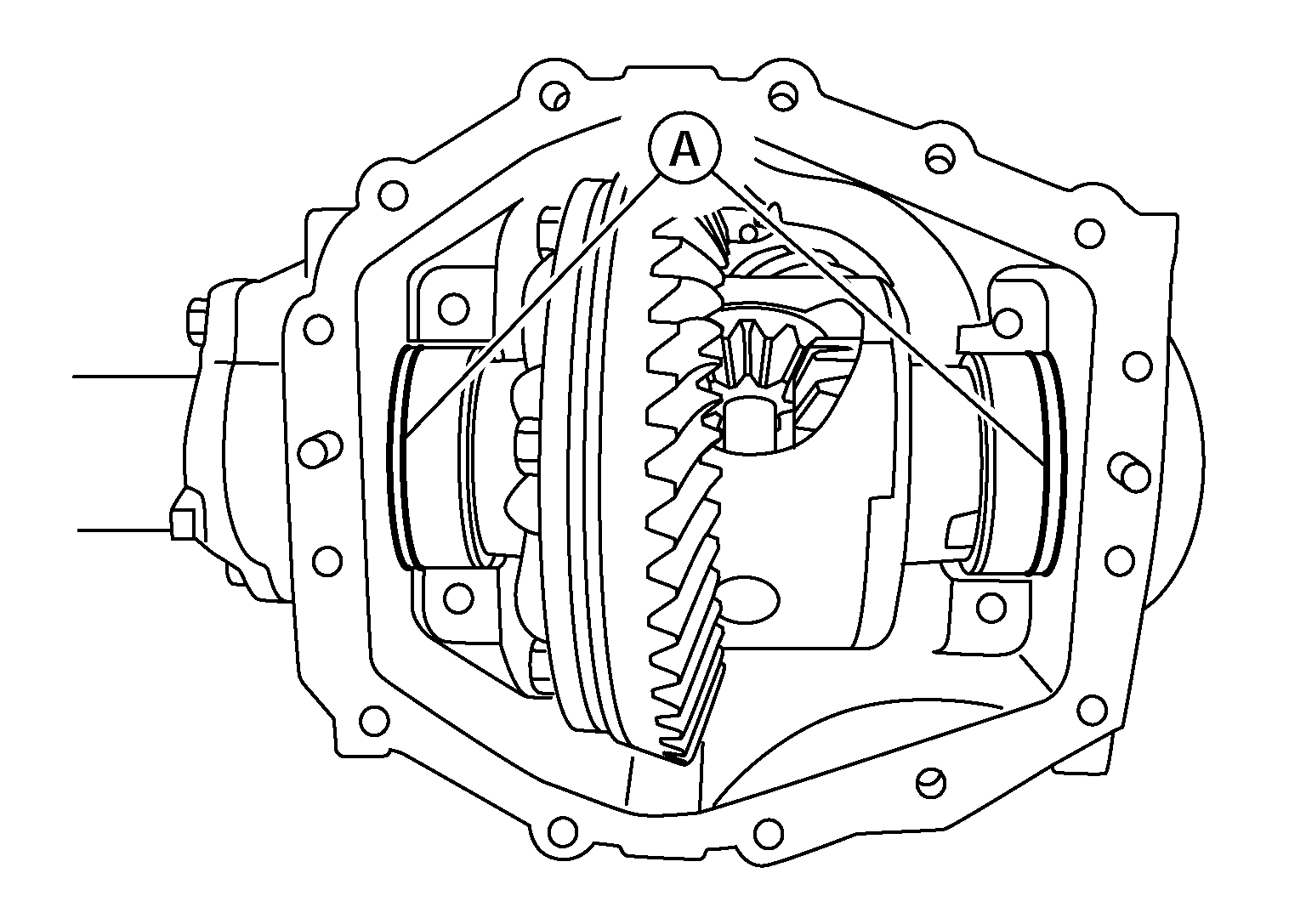

  5. Insert side bearing adjusting washers (A) in place between side bearings and gear carrier.
    GNSAWDIA1343Z-343Courtesy of NISSAN NORTH AMERICA, INC.

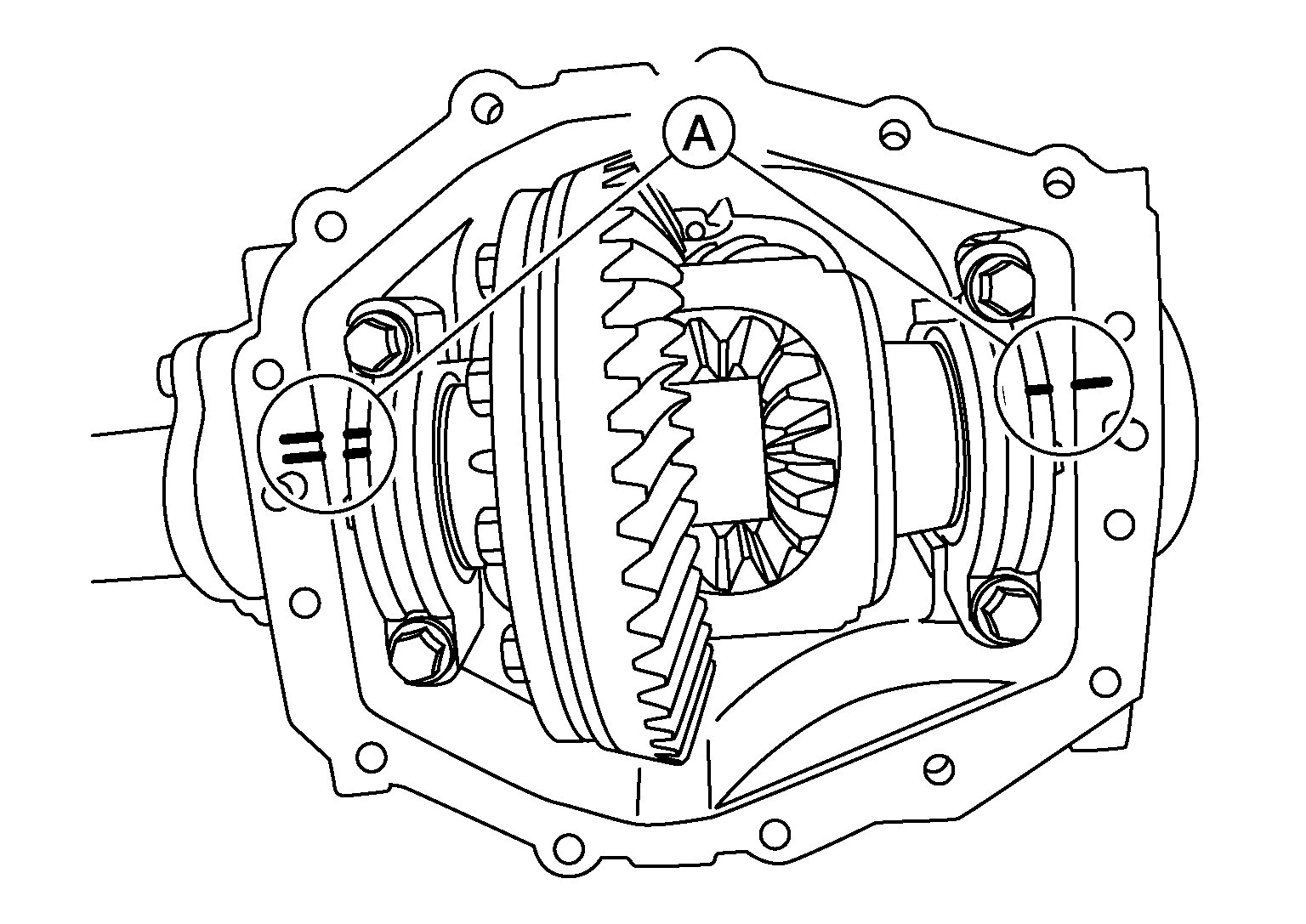

  6. Install the side bearing caps with the matching marks (A) aligned and hand tighten.
    GNSDB122790Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: Do not torque caps at this step.
  7. Check and adjust tooth contact, backlash, drive gear runout and total preload torque.

    Recheck above items. Refer to Inspection .

  8. Tighten side bearing cap bolts to the specified torque.

    Torque

    : 110 N.m (11 kg-m, 82 ft-lb)

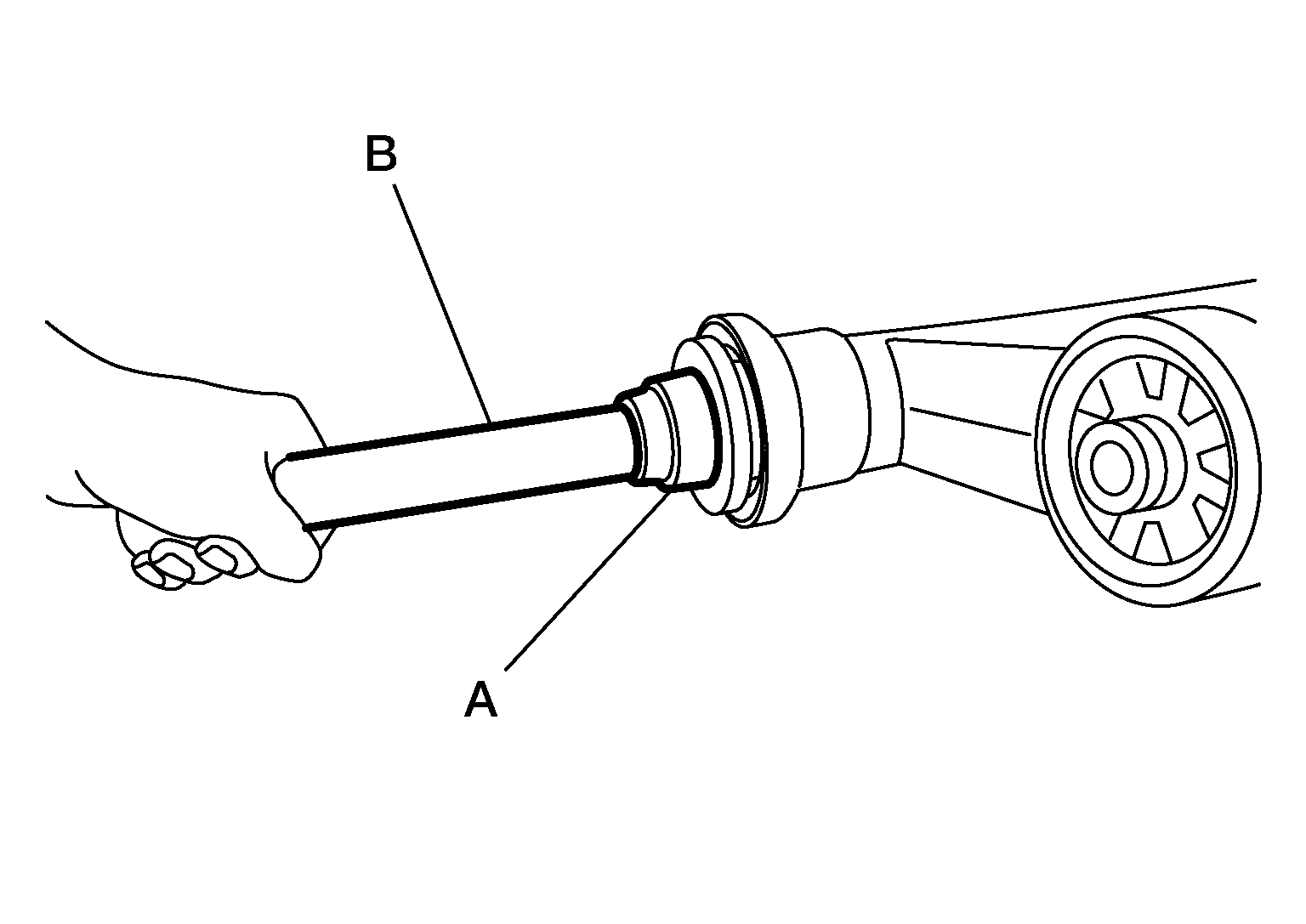

  9. Install needle bearings using Tool (A) and Tool (B).
    GNSAWDIA1404Z-404Courtesy of NISSAN NORTH AMERICA, INC.

    Tool (A)

    : - (J-51868)

    Tool (B)

    : - (J-8092)
  10. Apply multi-purpose grease to the lips of the new side oil seal. Then drive the new side oil seal in evenly to the gear carrier using suitable tool.
    CAUTION:
    • Do not reuse side oil seal.
    • Do not incline the new side oil seal when installing.
    • Apply multi-purpose grease to the lips of the new side oil seal.
  11. Install the carrier cover and gasket to the gear carrier. Tighten the bolts to the specified torque.

    Torque

    : 58 N.m (5.9 kg-m, 43 ft-lb)

INSULATOR BUSHINGS

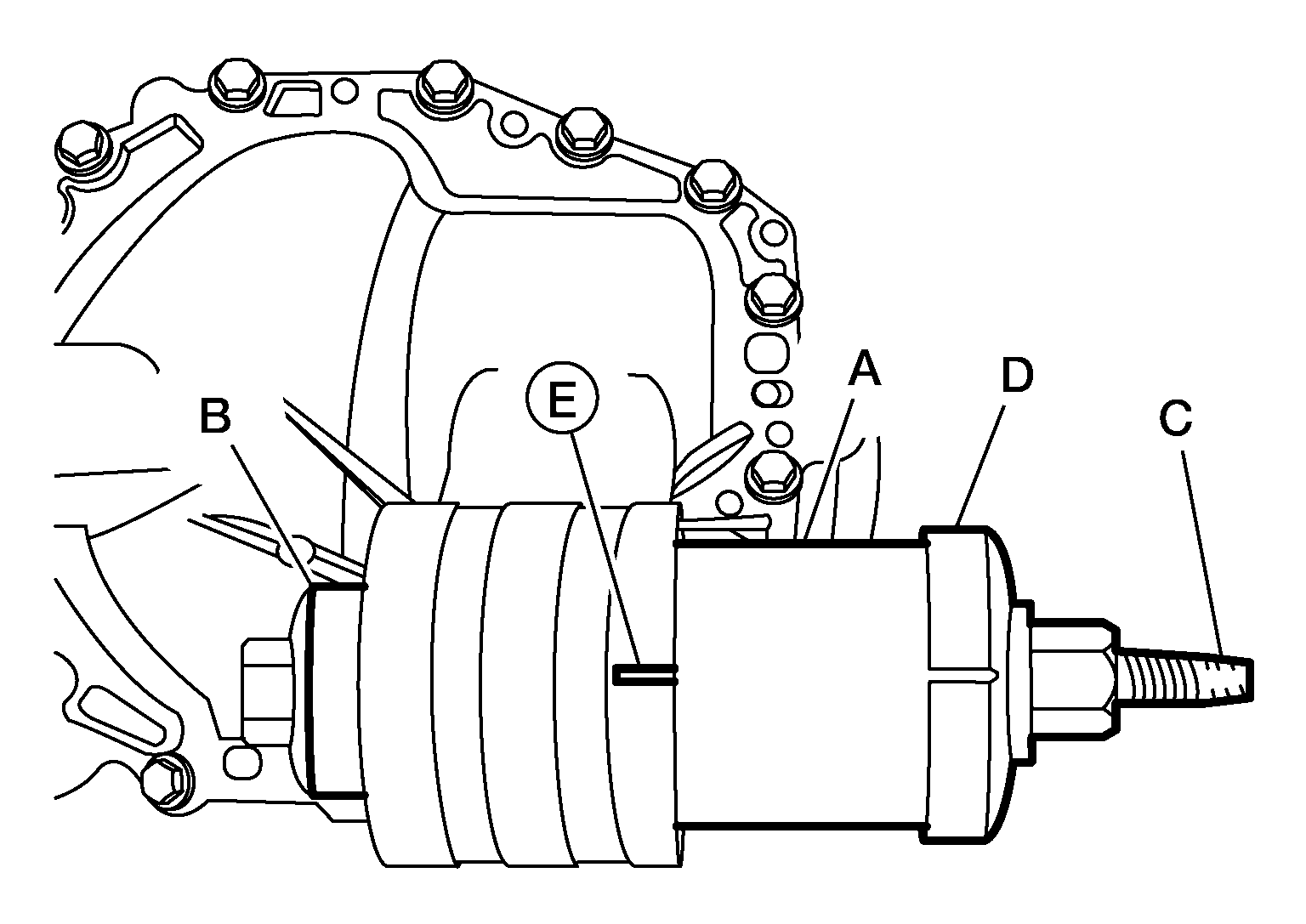

  1. Align Tool (D) and insulator bushing (A) to mark (E) on carrier case.
    GNSAWDIA1405Z-405Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Match alignment mark on Tool (D) to paint mark (E) for proper installation, alignment mark on Tool (D) must be within ±2° of paint mark (E).
  2. Install tool (B) on the opposite side of Bushing slot using Tool (C).
  3. Press insulator bushing in using Tools (B/C/D).

    Tool set (A/B/C/D/E)

    : --- (J-51879)
