Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Drain gear oil. Refer to Draining .
Remove the front drive shafts from front final drive assembly. Refer to Removal and Installation .

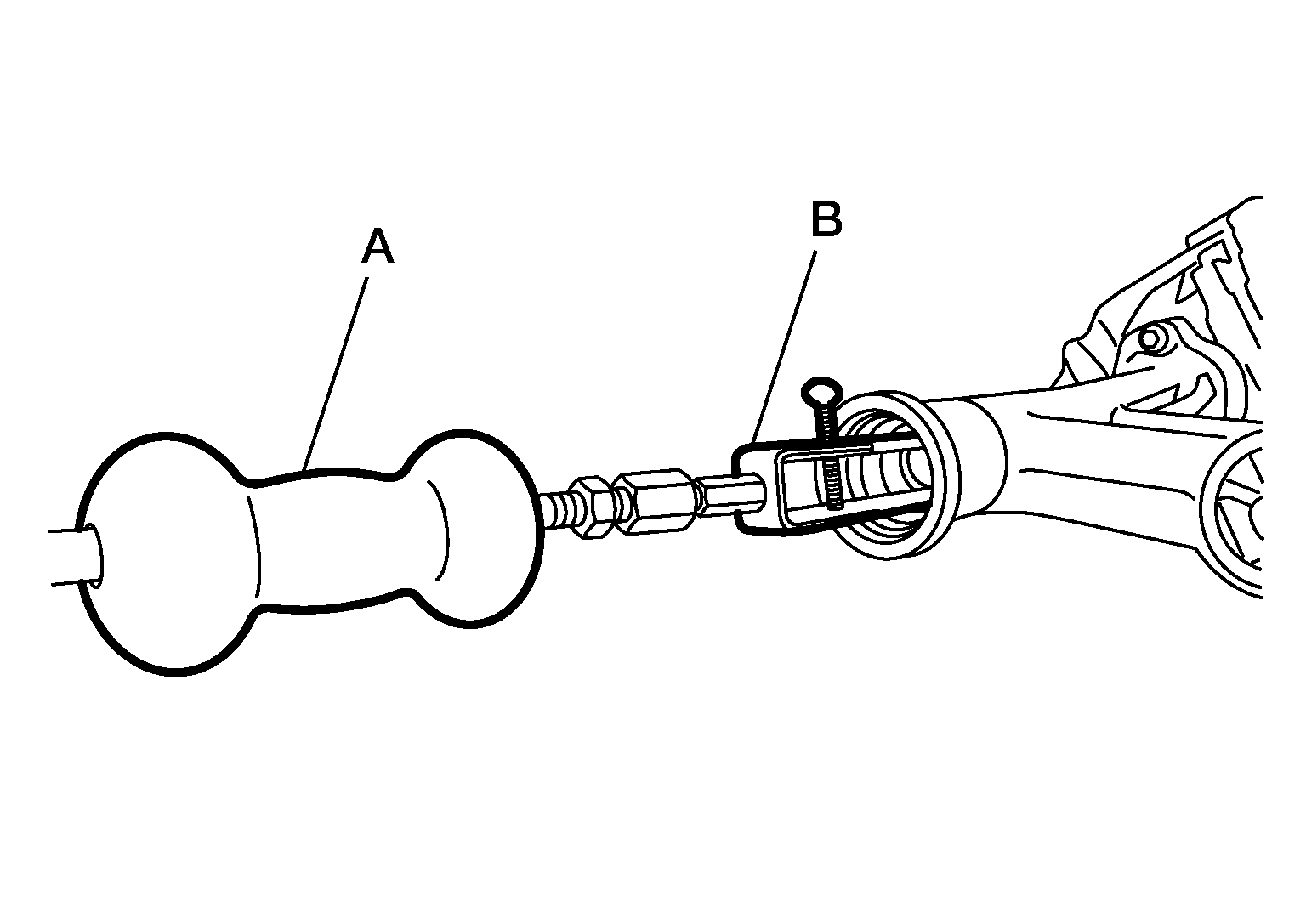

Remove the side oil seal using Tool (A) and Tool (B).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not damage gear carrier.

Tool	: - (J-02619-5)
Tool	: - (J-51870)
