Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front propeller shaft. Refer to Removal and Installation .
  2. Measure the total preload torque. Refer to Disassembly and Assembly .
    NOTE: Record the total preload torque measurement.
  3. Check companion flange runout. Refer to Disassembly and Assembly .

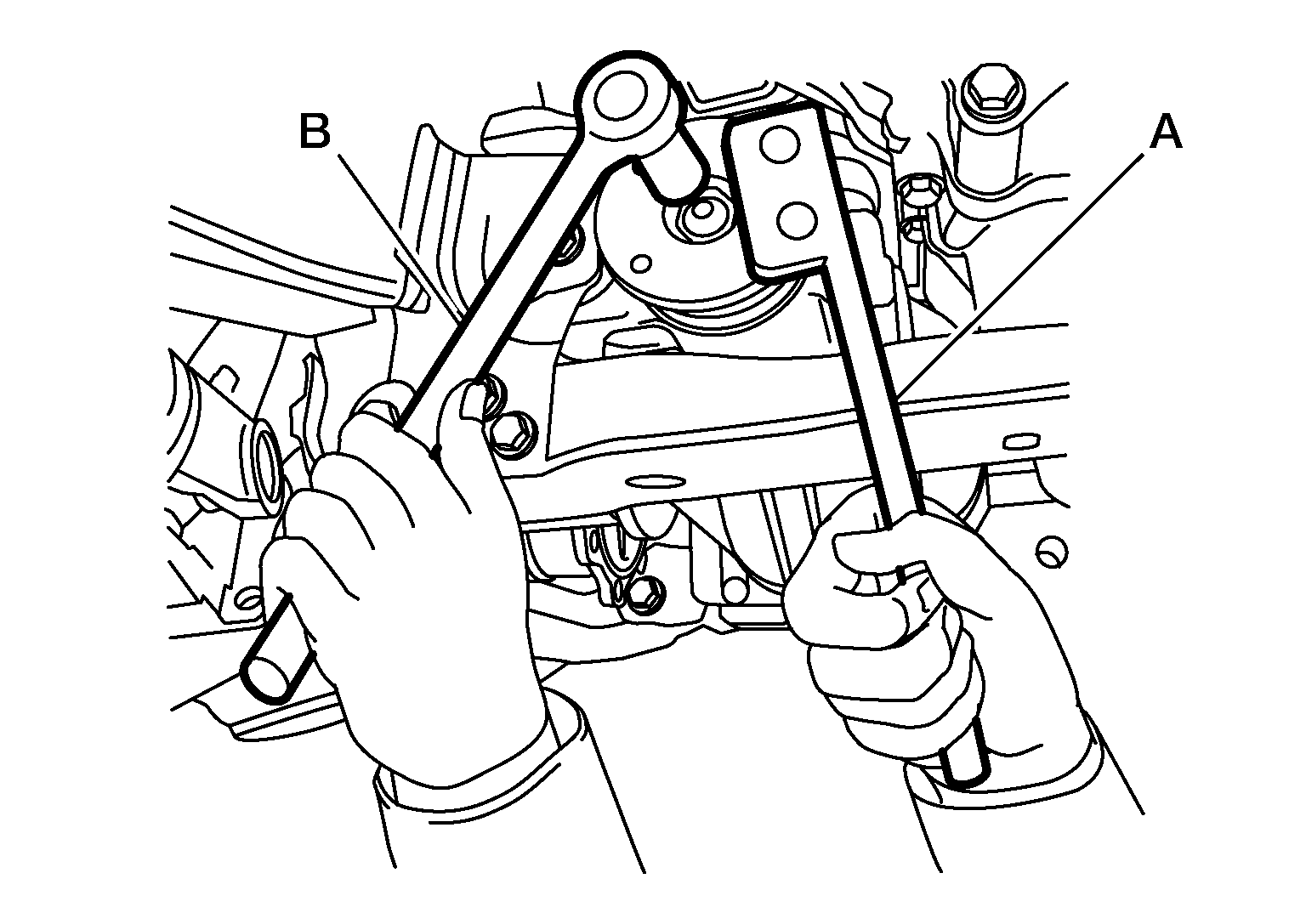

  4. Remove the drive pinion lock nut using suitable tools (A) and (B).
    GNSAWDIA1385Z-385Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse drive pinion lock nut.
  5. Put matching mark (B) on the end of the drive pinion that aligns with mathcing mark (A) on companion flange (1).
    GNSJSDIA0038Z-038Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Use paint to make the matching marks. Do not damage the companion flange or drive pinion.

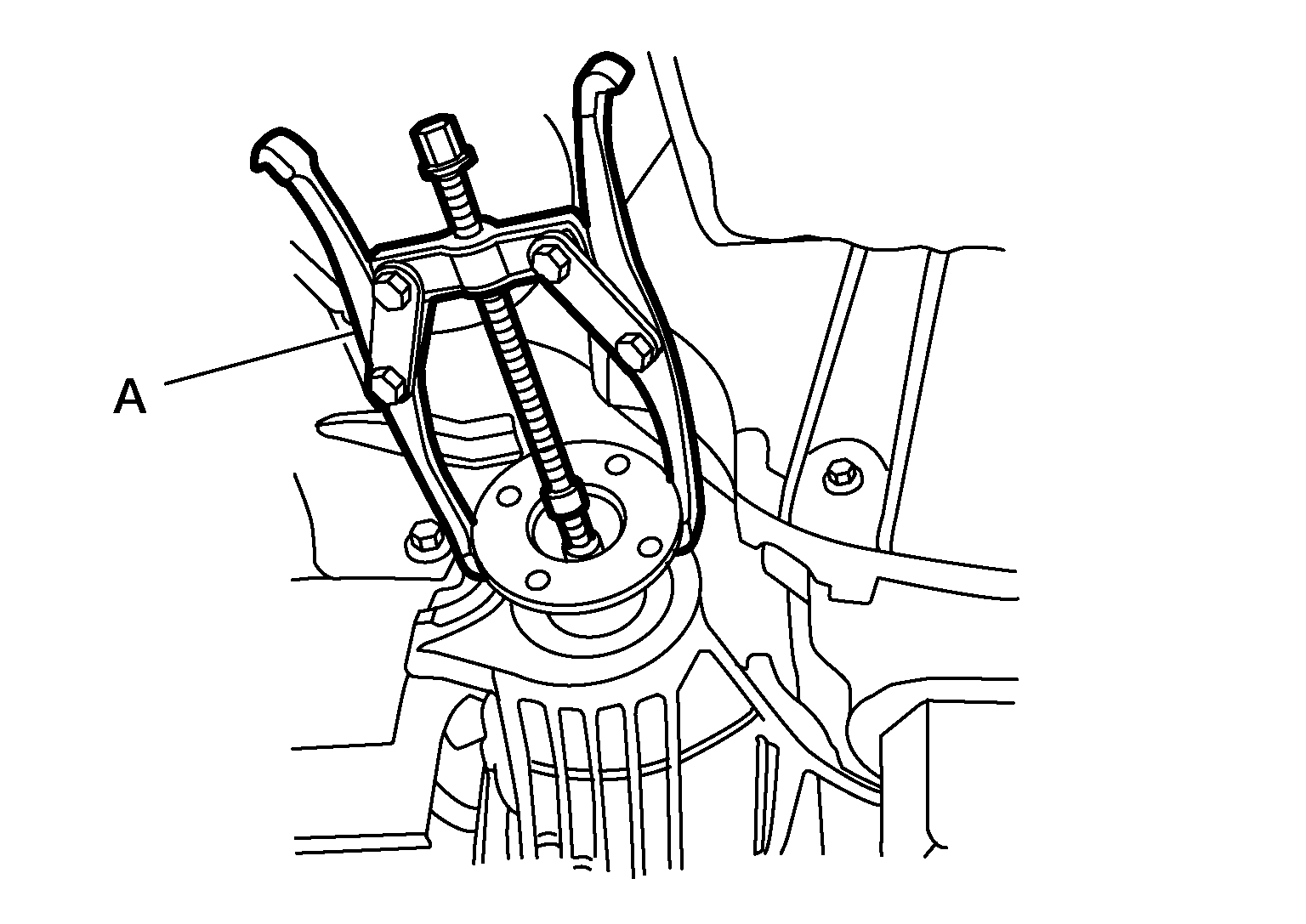

  6. Remove companion flange using suitable tool (A).
    GNSAWDIA1386Z-386Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove the front oil seal using suitable tool (A).
    GNSAWDIA1387Z-387Courtesy of NISSAN NORTH AMERICA, INC.
