Removal and Installation: VK56VD Models: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wheel and tire (LH) using power tool. Refer to Removal and Installation .
  2. Loosen hose clamp, and remove air breather hose A from final drive assembly.

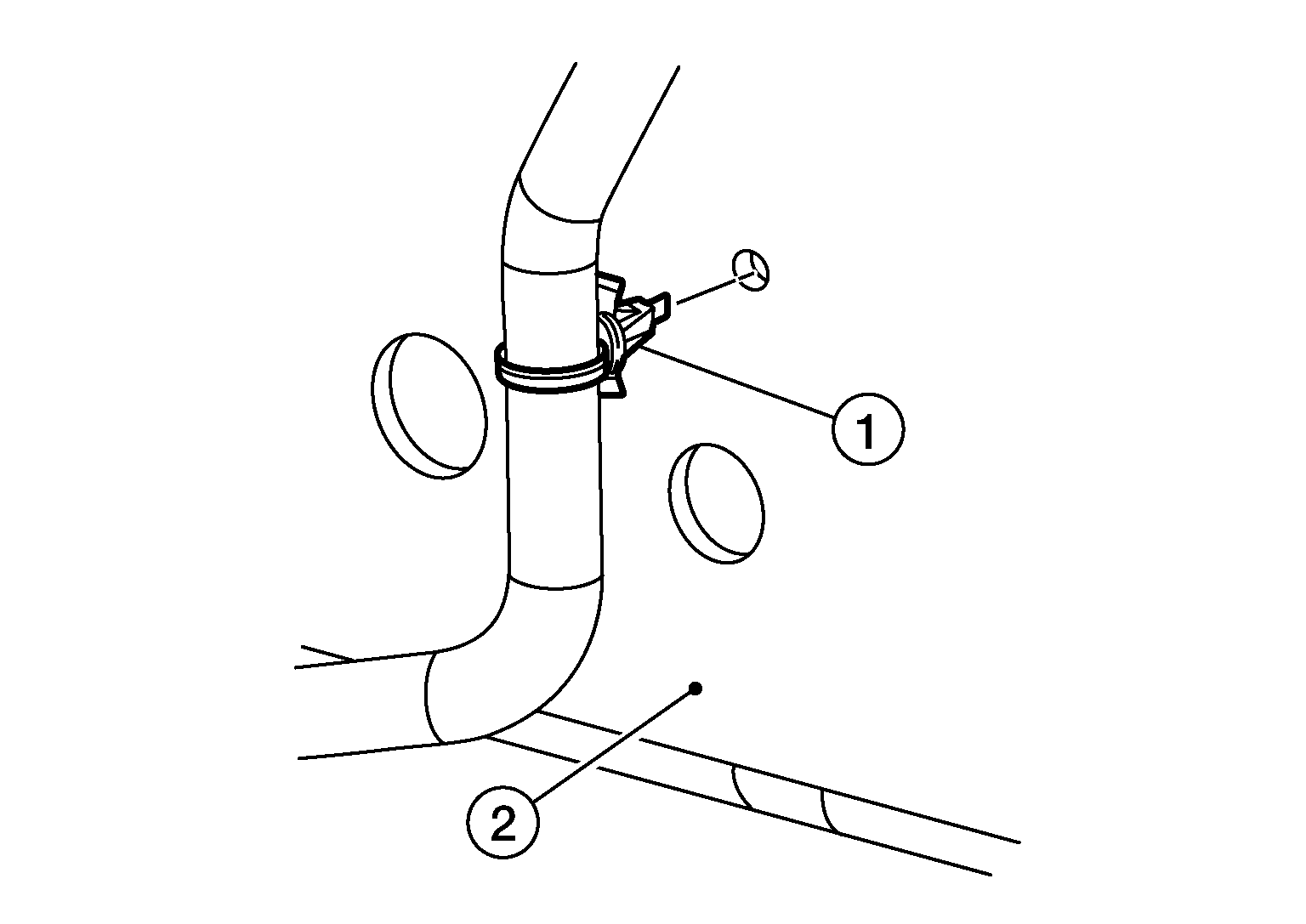

  3. Remove clip A (1) from frame (2).
    GNSDB119138Courtesy of NISSAN NORTH AMERICA, INC.

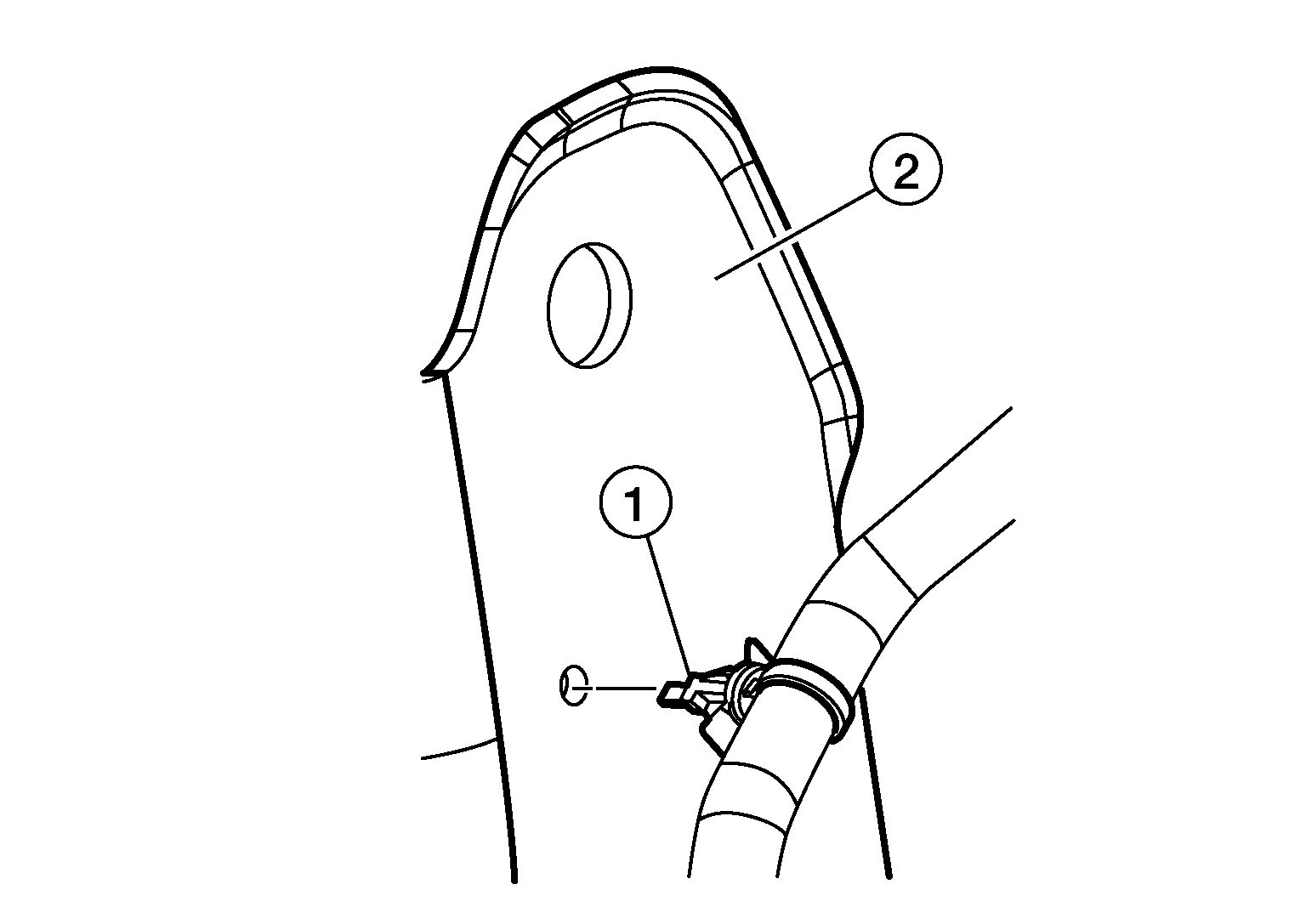

  4. Remove clip B (1) from bracket (2) of frame.
    GNSDB115327Courtesy of NISSAN NORTH AMERICA, INC.

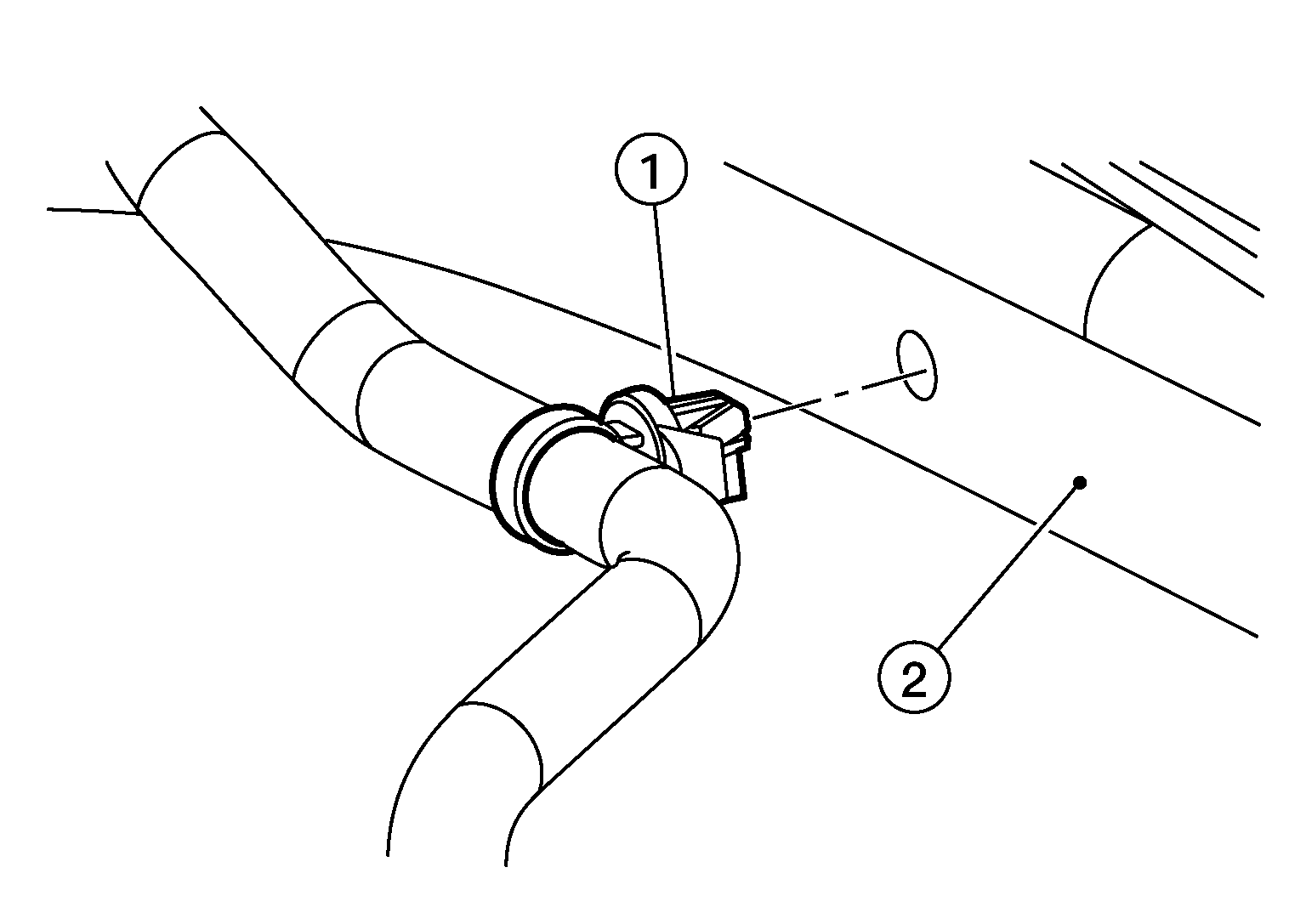

  5. Remove clip C (1) from frame (2).
    GNSALDIA0737Z-737Courtesy of NISSAN NORTH AMERICA, INC.

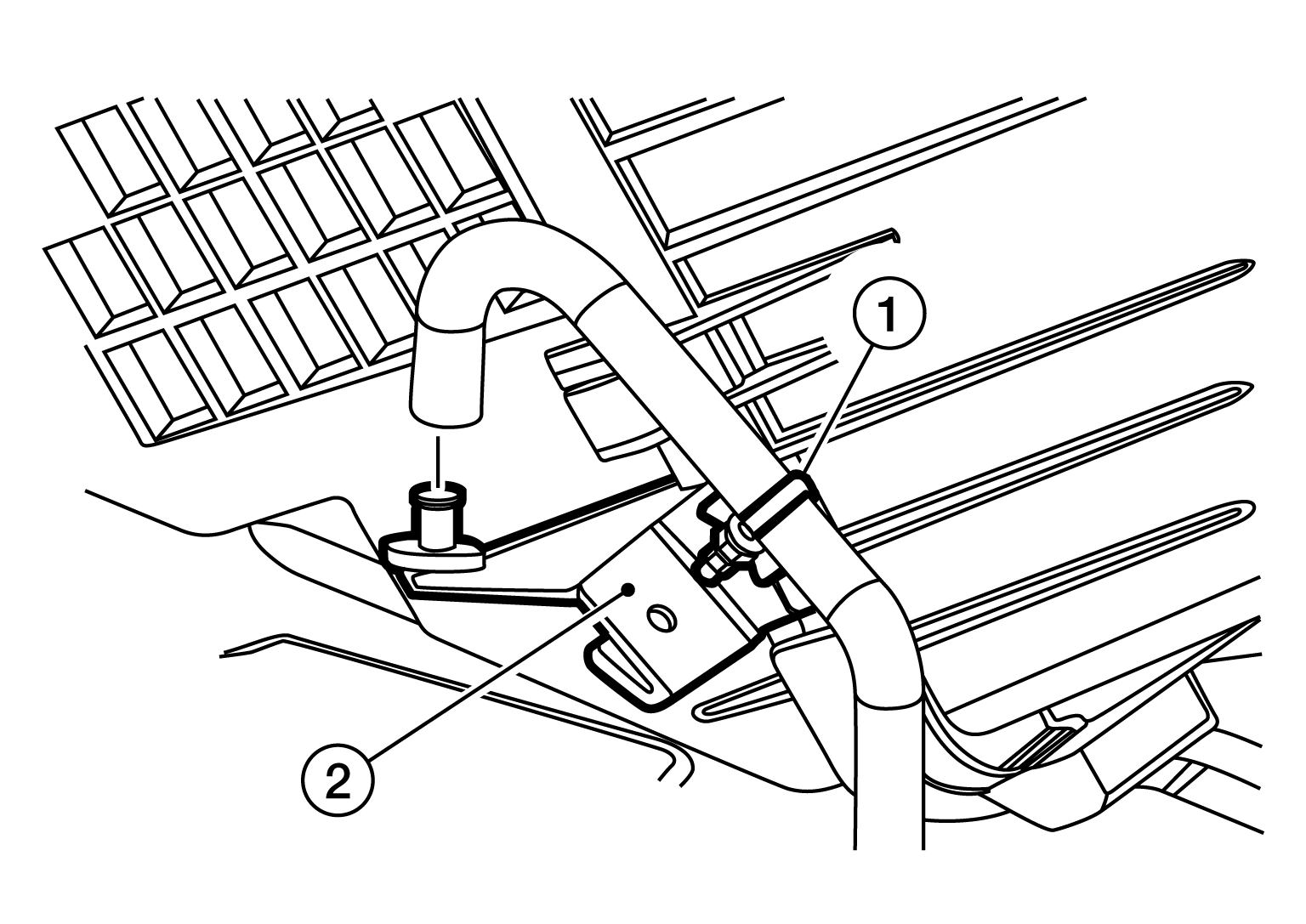

  6. Remove clip D (1) from frame (2).
    GNSDB115385Courtesy of NISSAN NORTH AMERICA, INC.
  7. Remove air breather hose assembly.
  8. Separate air breather hose A and air breather hose B from hose connector.
