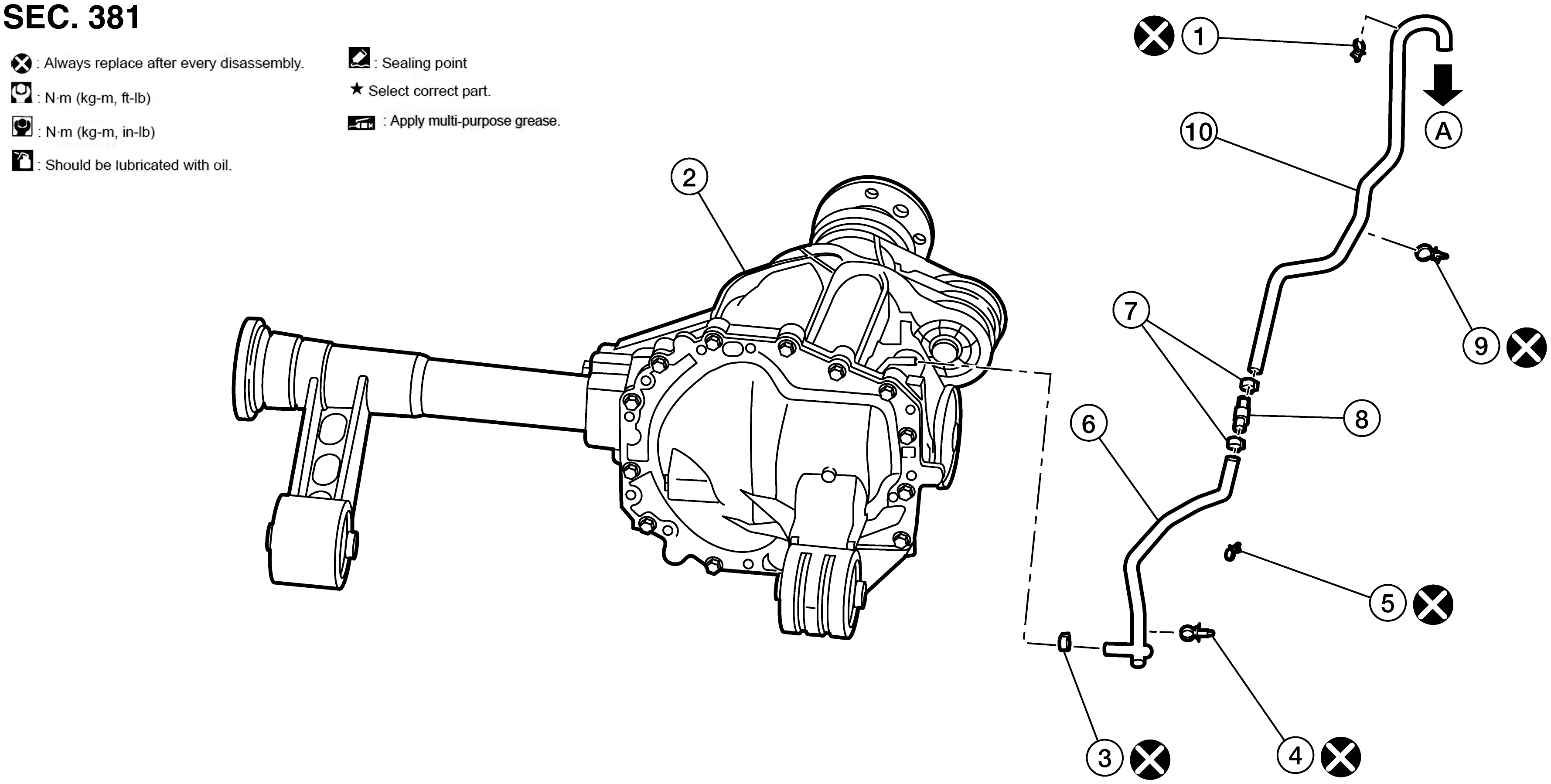

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Clip D |
2. |
Final drive assembly |
3. |
Hose clamp |
|
4. |
Clip A |
5. |
Clip B |
6. |
Air breather hose A |
|
7. |
Hose clamps |
8. |
Hose connector |
9. |
Clip C |
|
10. |
Air breather hose B |
A. |
To frame |
|
1. |
Clip D |
2. |
Air breather hose B |
3. |
Final drive assembly |
|
4. |
Hose clamp |
5. |
Clip A |
6. |
Air breather hose A |
|
7. |
Clip B |
8. |
Hose clamps |
9. |
Hose connector |
|
10. |
Clip C |
A. |
To frame |
