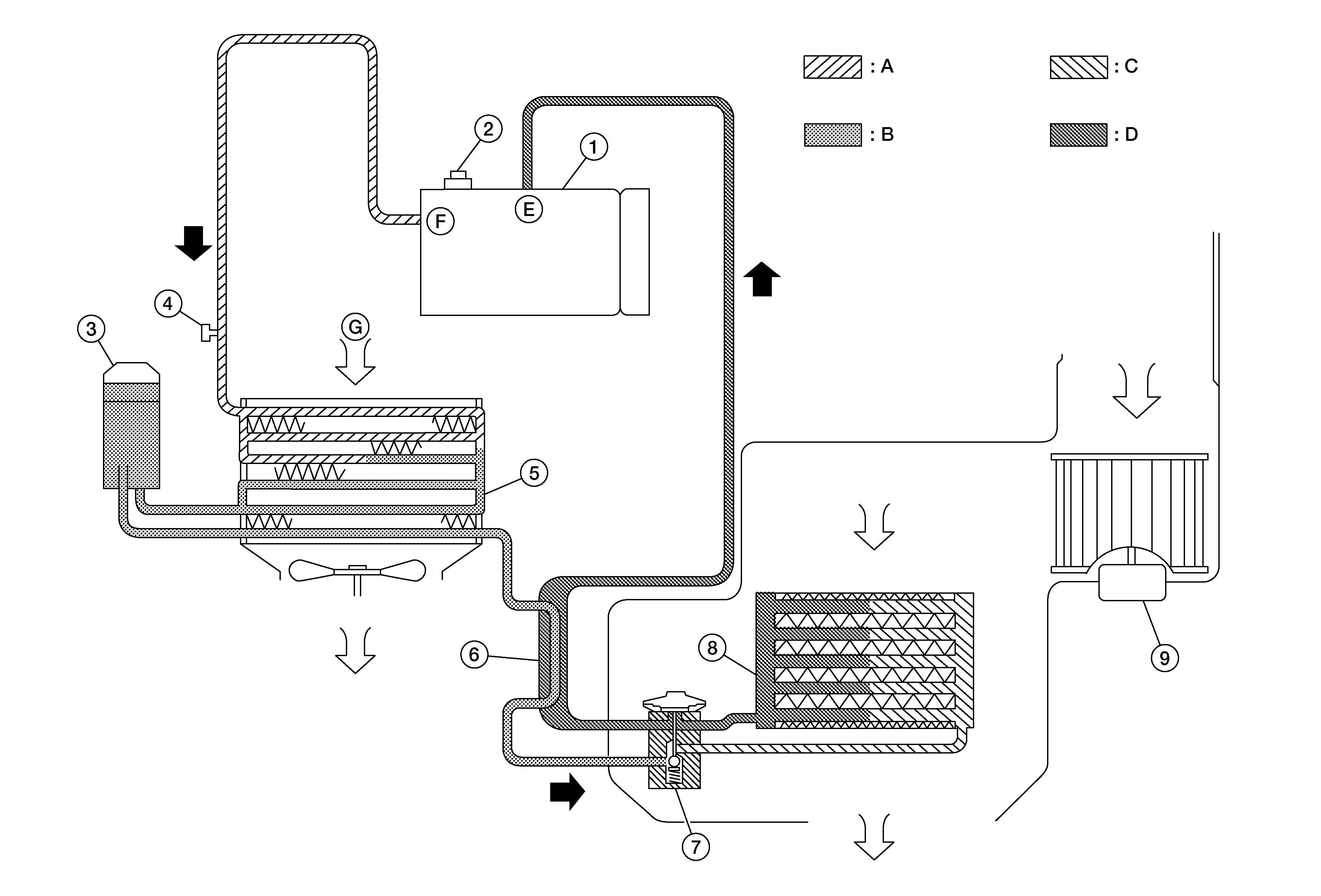

System Diagram
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
A/C compressor |
2. |
Pressure relief valve |
3. |
Liquid tank |
|
4. |
Condenser |
5. |
Refrigerant pressure sensor |
6. |
Internal heat exchanger |
|
7. |
Expansion valve |
8. |
Evaporator |
9. |
Blower motor |
|
A. |
High-pressure gas |
B. |
High-pressure liquid |
C. |
Low-pressure liquid |
|
D. |
Low-pressure gas |
E. |
Suction port |
F. |
Discharge port |
|
G. |
Outside air |
