Component Parts Location

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

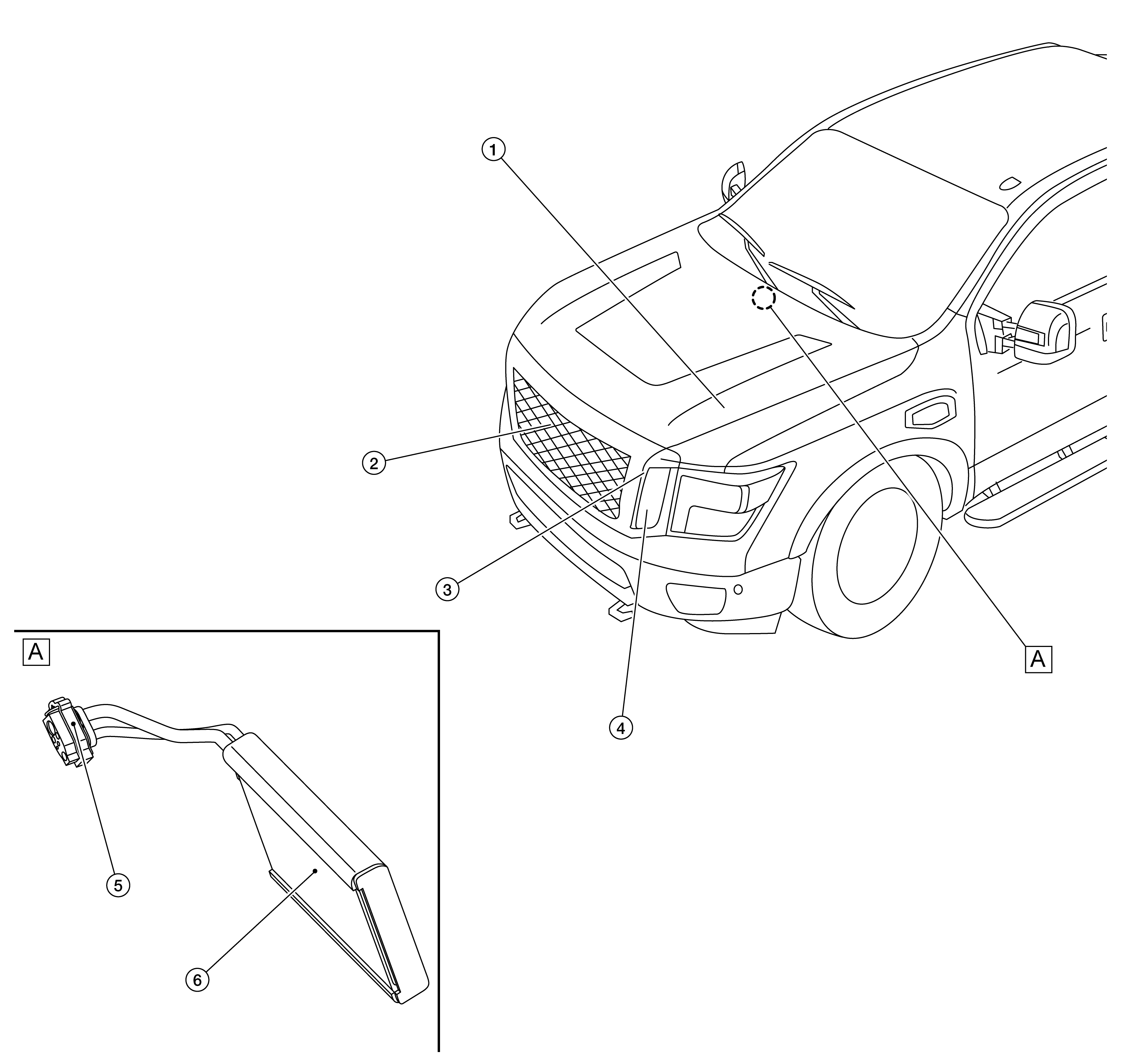

Evaporator assembly

Component		Description
1.	Compressor	Intakes, compresses, and discharges refrigerant to circulate refrigerant inside the refrigerant cycle.
2.	Condenser	Cools refrigerant discharged from compressor and transforms it to liquid refrigerant.
3.	Refrigerant pressure sensor	Refer to Refrigerant Pressure Sensor [Automatic air conditioning]. Refer to Refrigerant Pressure Sensor [Manual air conditioning].
4.	Liquid tank	Eliminates foreign matter in refrigerant and stores temporarily liquid refrigerant.
5.	Expansion valve	Transforms high-pressure liquid refrigerant to mist form low-pressure liquid refrigerant by drawing function.
6.	Evaporator	The mist from liquid refrigerant transforms to gas by evaporation by the air conveyed from blower motor. The air is cooled by the heat by evaporation.
