Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove compressor. Refer to Removal and Installation .
  2. Hold clutch disc using suitable tool, then remove center bolt.

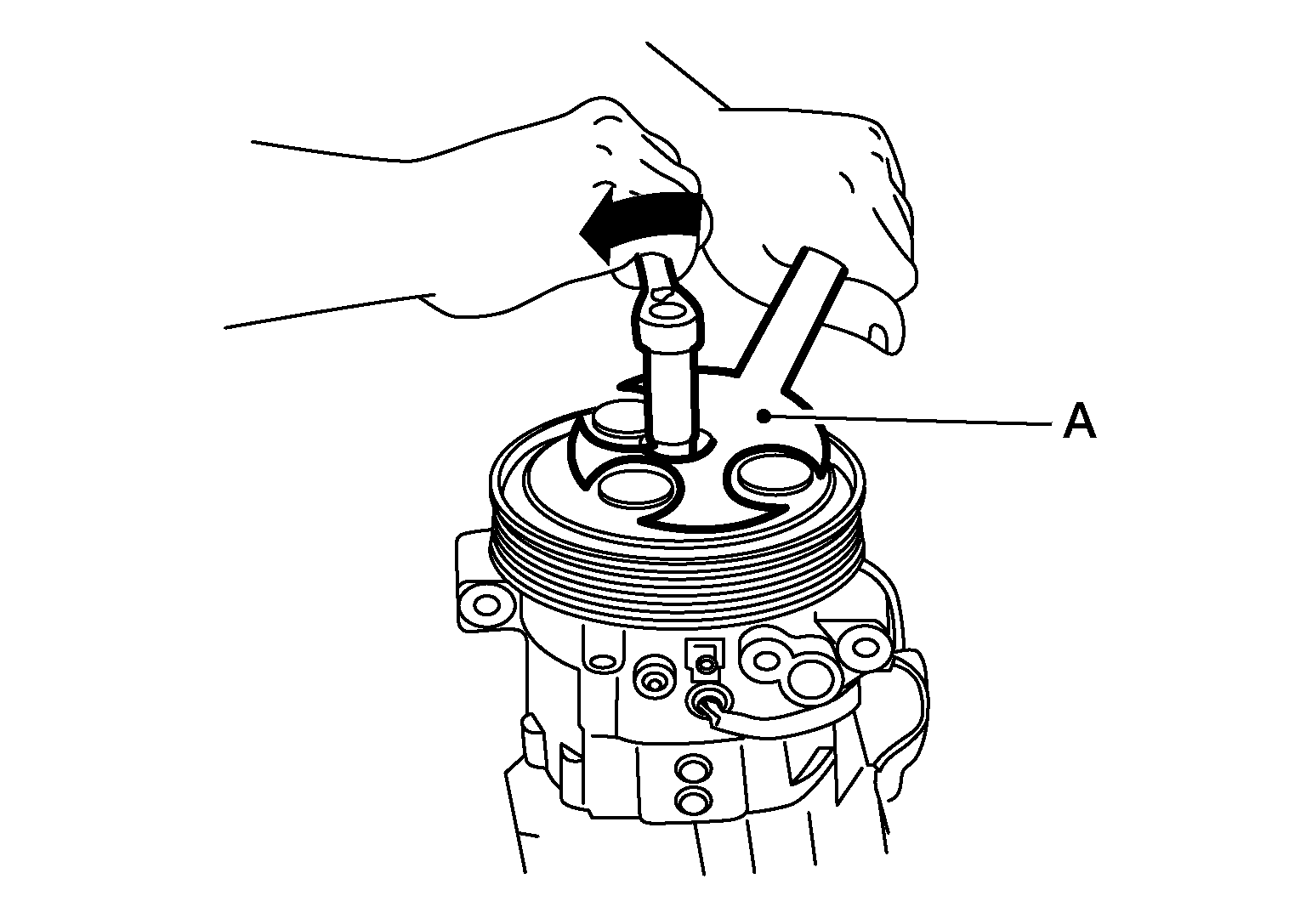

    1. For VK56VD, use Tool (A) to hold clutch disc, then remove center bolt.
    GNSALIIA1271Z-271Courtesy of NISSAN NORTH AMERICA, INC.

    Tool number

    - (J-44814)
  3. Remove clutch disc and shim(s).
    CAUTION: Retain the shim(s) for installation.

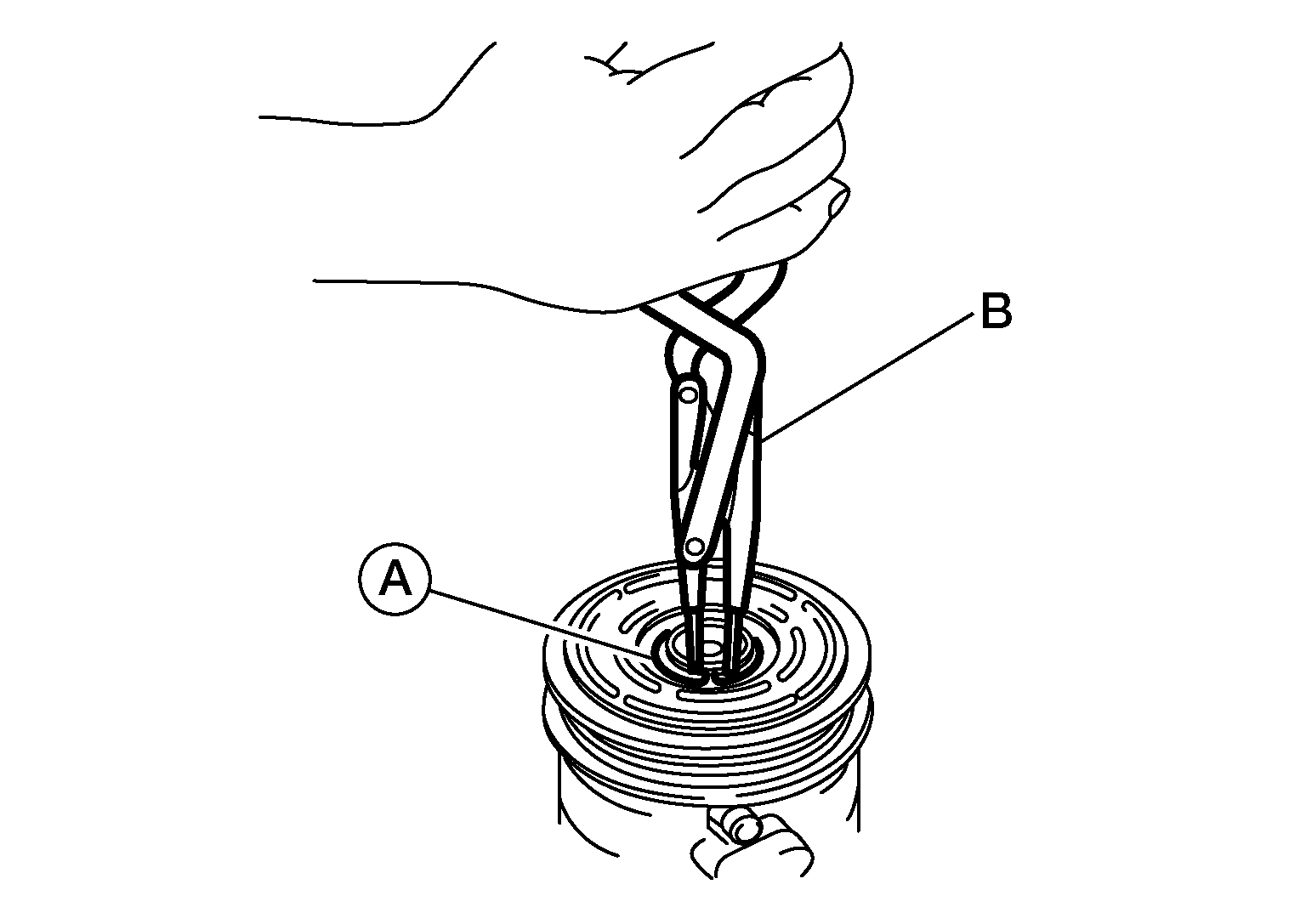

  4. Remove snap ring (A) using suitable tool (B).
    GNSAWIIA2137Z-137Courtesy of NISSAN NORTH AMERICA, INC.

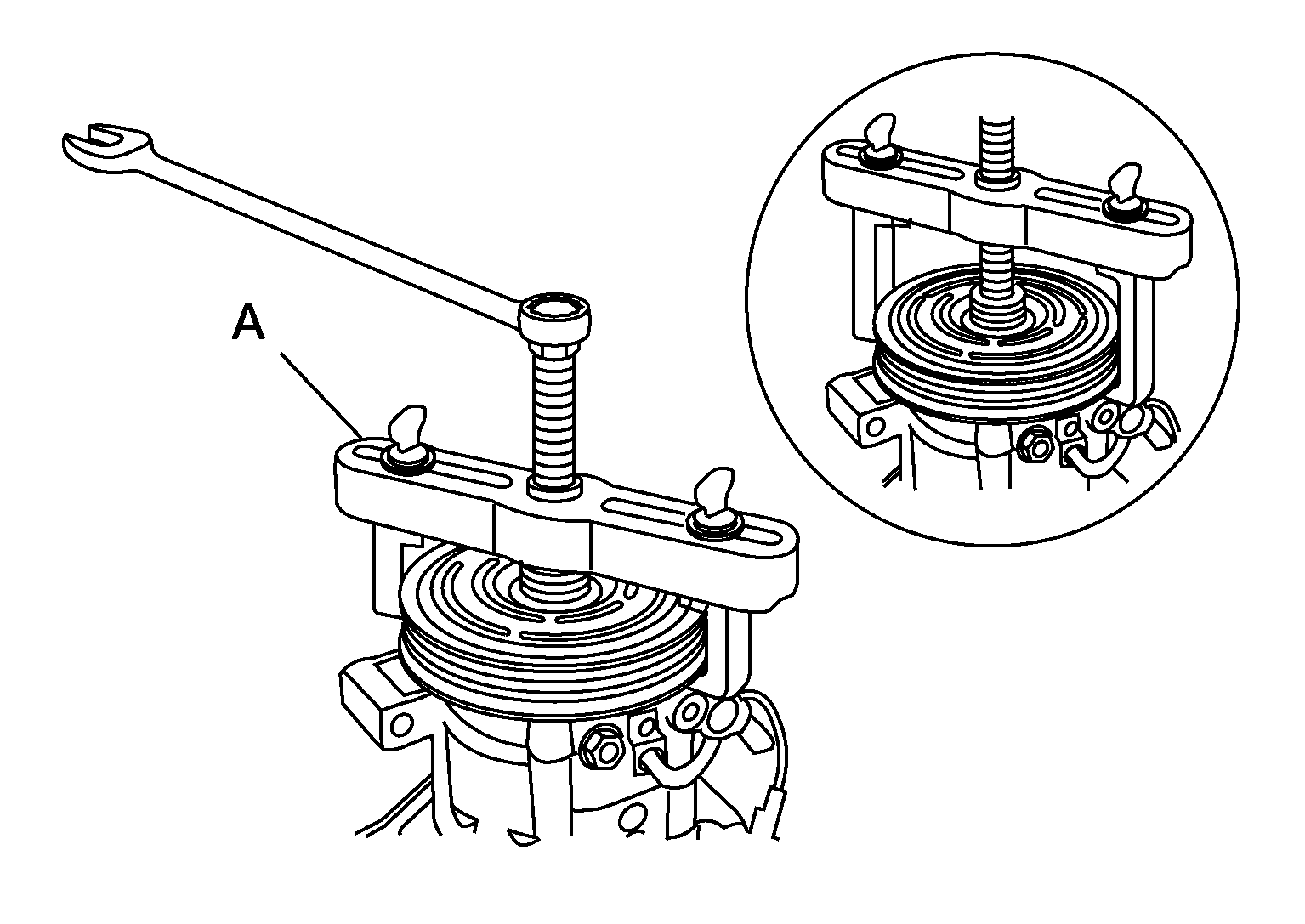

  5. Remove the pulley using suitable tool (A).
    GNSAWIIA1285Z-285Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: To prevent deformation of the pulley groove, the puller claws should be hooked under (not into) the pulley groove.
  6. Disconnect harness connector from magnet coil.

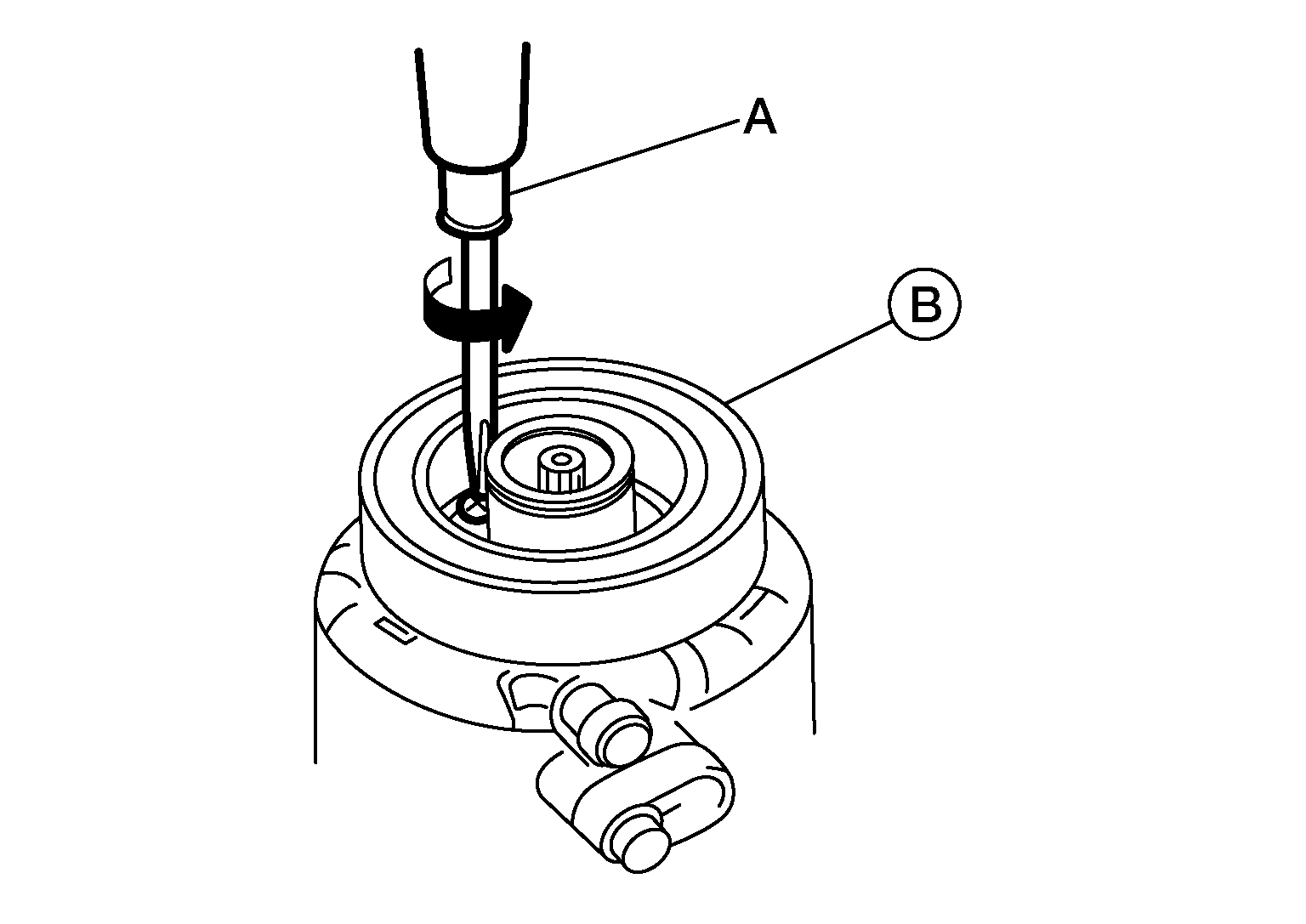

  7. Remove screws using suitable tool (A), then remove magnet coil (B).
    GNSAWIIA2138Z-138Courtesy of NISSAN NORTH AMERICA, INC.
