Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

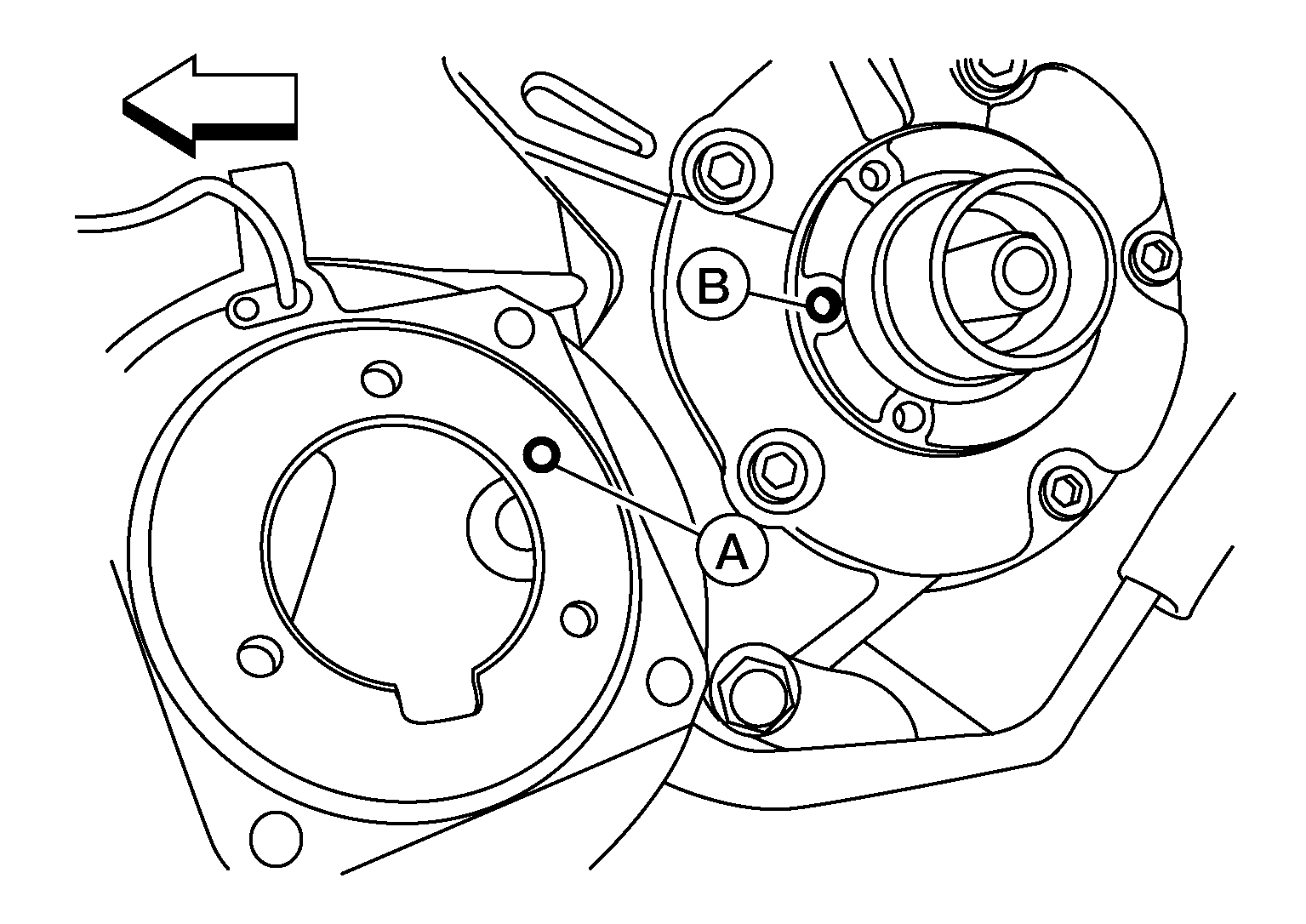

  1. Install the magnet coil by aligning magnet coil pin (A) with hole (B) in the compressor front head, then install the magnet coil screws.
    GNSALIIA0389Z-389Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front
    CAUTION: Be sure to align the magnet coil pin with the hole in the compressor front head.
  2. Connect the magnet coil harness.

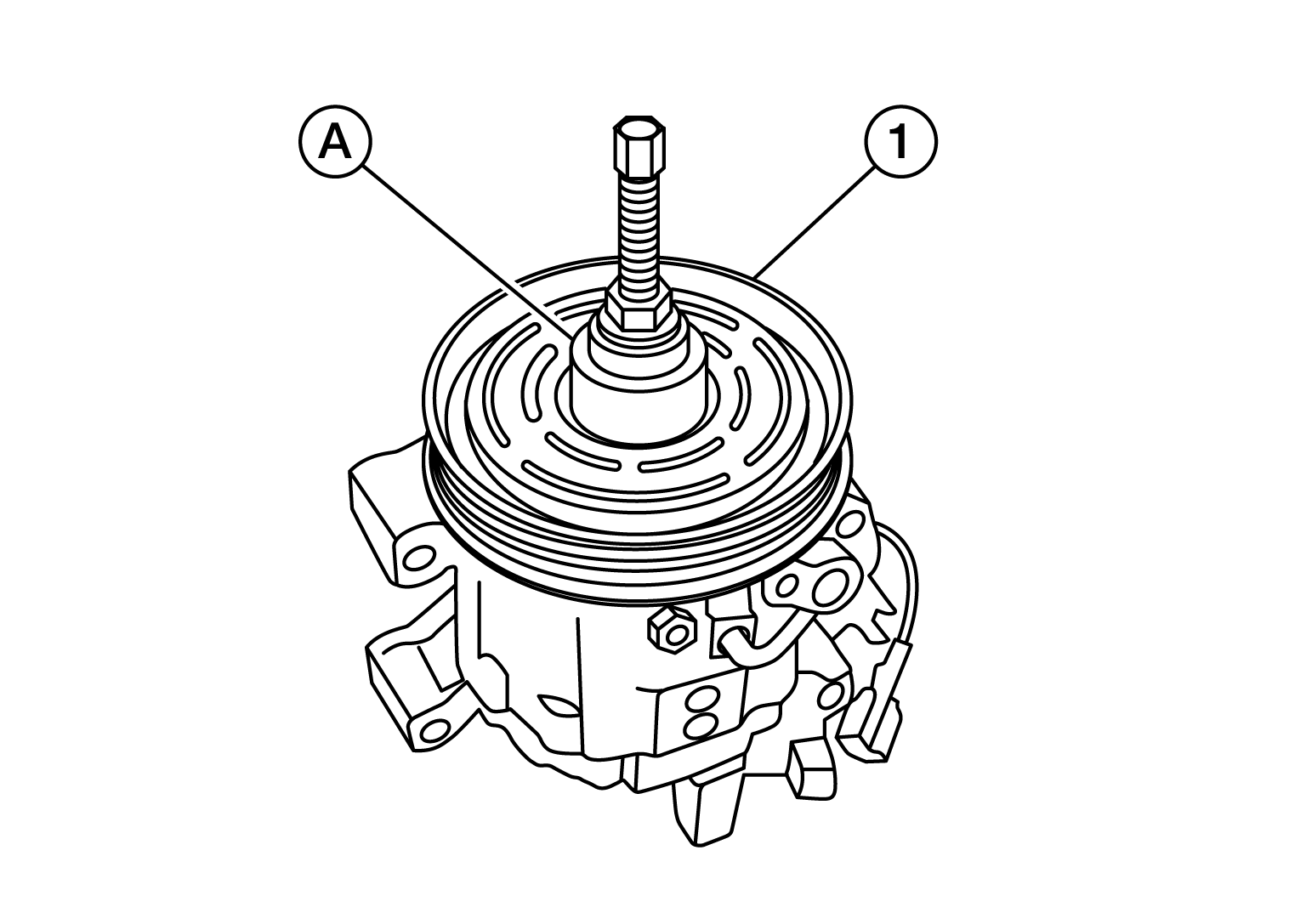

  3. Install pulley (1) using tool (A).
    GNSAWIIA2158Z-158Courtesy of NISSAN NORTH AMERICA, INC.

    Tool number

    - (J-38873-A)

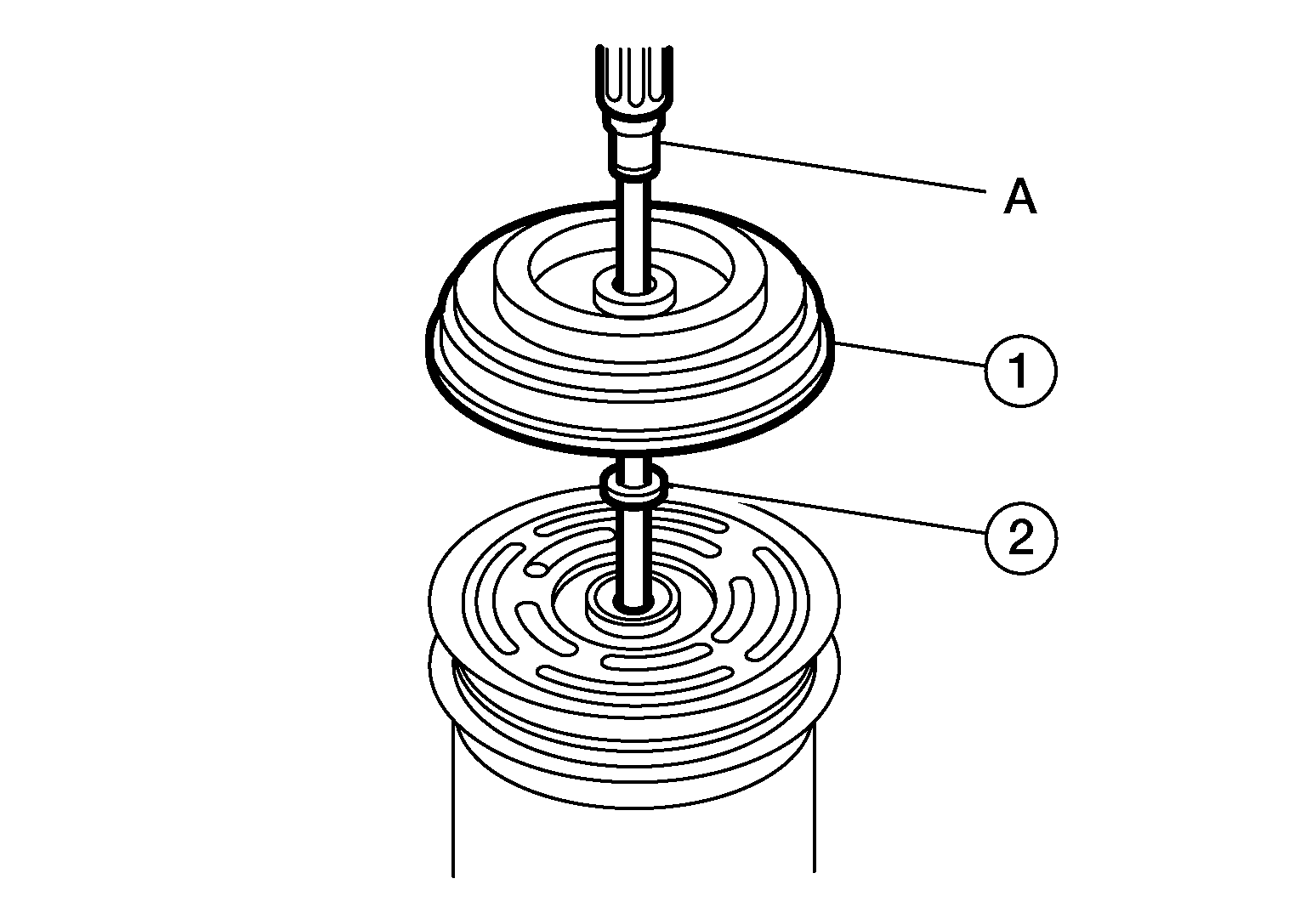

  4. Install clutch disc (1) and shim(s) (2) using suitable tool (A).
    GNSAWIIA2236Z-236Courtesy of NISSAN NORTH AMERICA, INC.

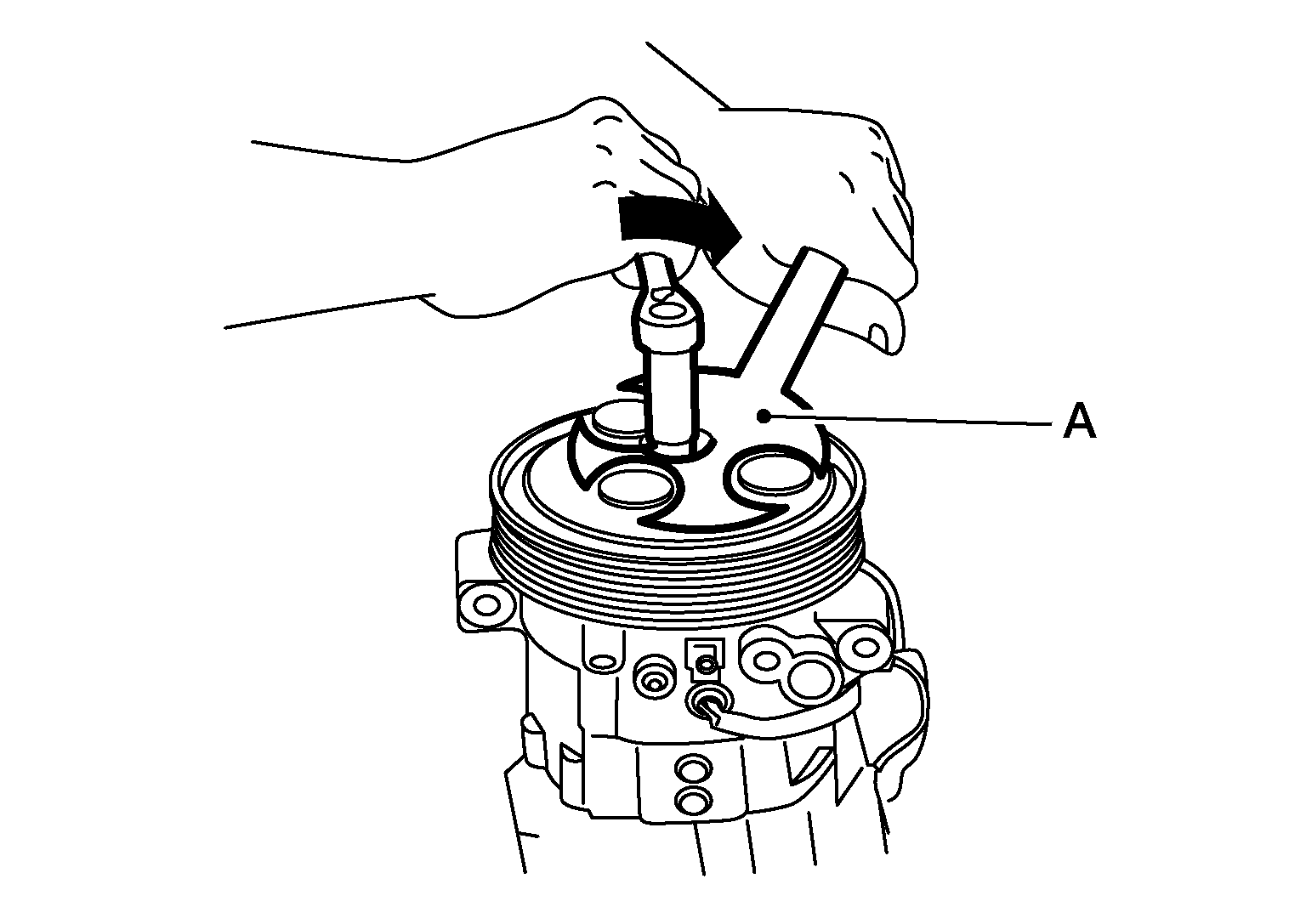

  5. Hold clutch disc using suitable tool, then install center bolt.
    1. For VK56VD, use Tool (A) to hold clutch disc, then install center bolt.
    GNSAWIIA2203Z-203Courtesy of NISSAN NORTH AMERICA, INC.

    Tool number

    - (J-44614)
  6. Install the compressor. Refer to Removal and Installation .
