Inspection After Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

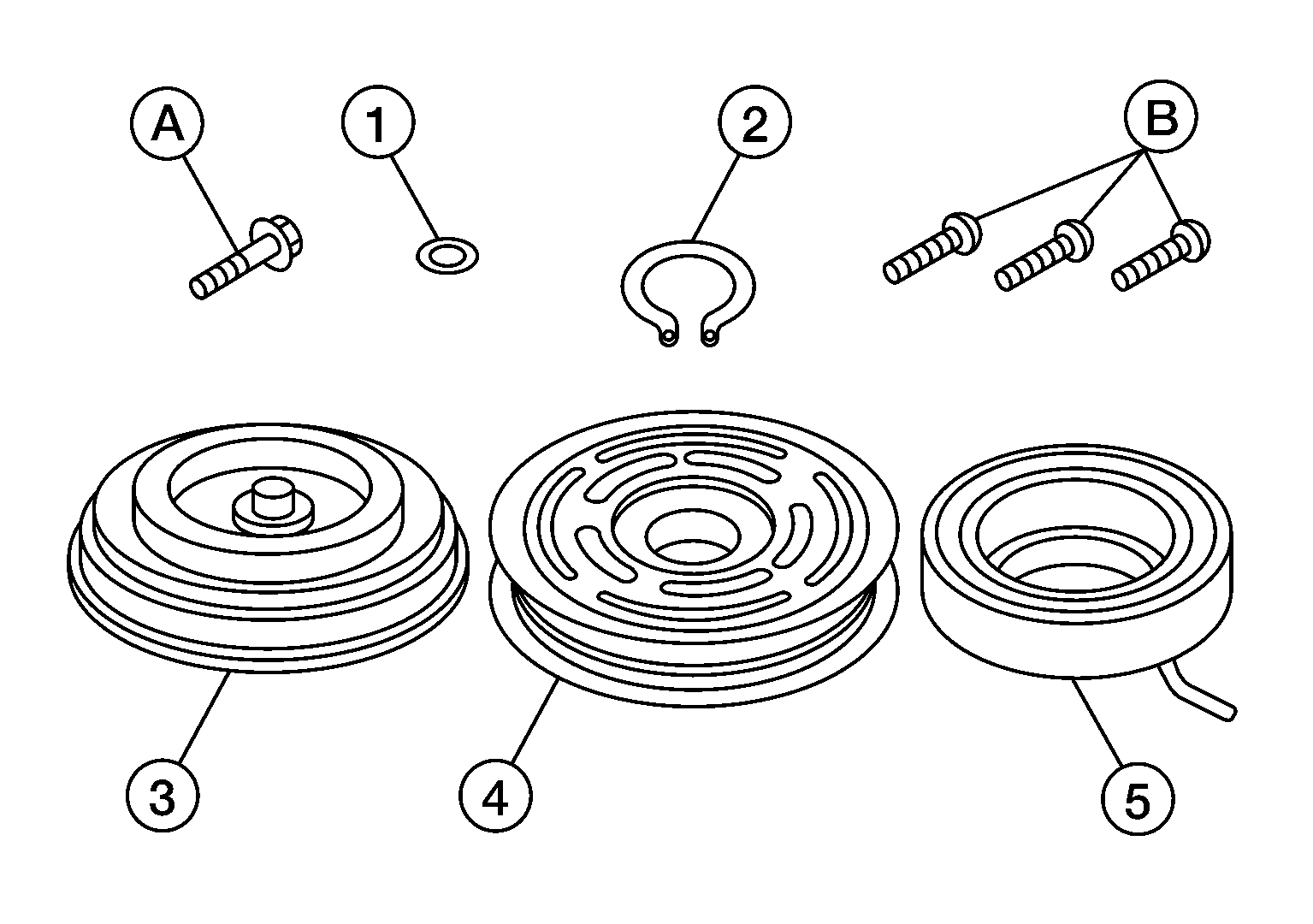

- (1): Shim(s)
- (2): Snap ring
- (3): Clutch disc
- (4): Pulley
- (5): Magnet coil
- (A): Center bolt
- (B): Magnet coil screws
Clutch Disc
If the contact surface shows signs of damage due to excessive heat, replace magnet clutch.
Pulley
Check the appearance of the pulley. If the contact surface of the pulley shows signs of excessive grooving, replace as necessary. The contact surfaces of the pulley should be cleaned with a suitable solvent before installation.
Magnet Coil
Check the magnet coil for a loose connection or cracked insulation. Replace magnet clutch.
