Inspection After Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

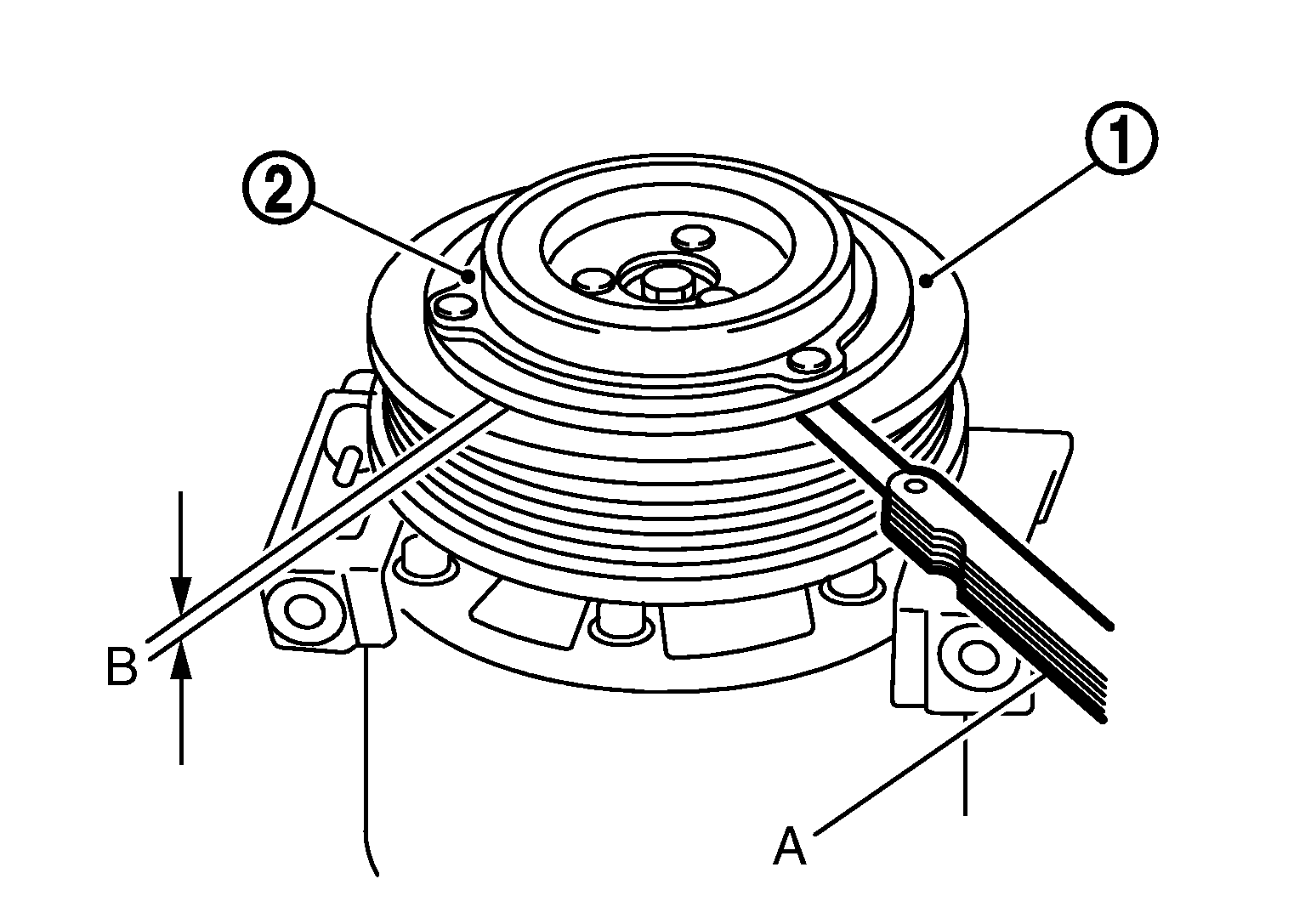

Check the clearance (B) all the way around between the clutch disc (2) and pulley (1) using suitable tool (A).
|
Clutch disc-to-pulley clearance (B)
|
: Service Data and Specification (SDS) .
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
CAUTION:
Replace compressor if specified clearance is not obtained.
