Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

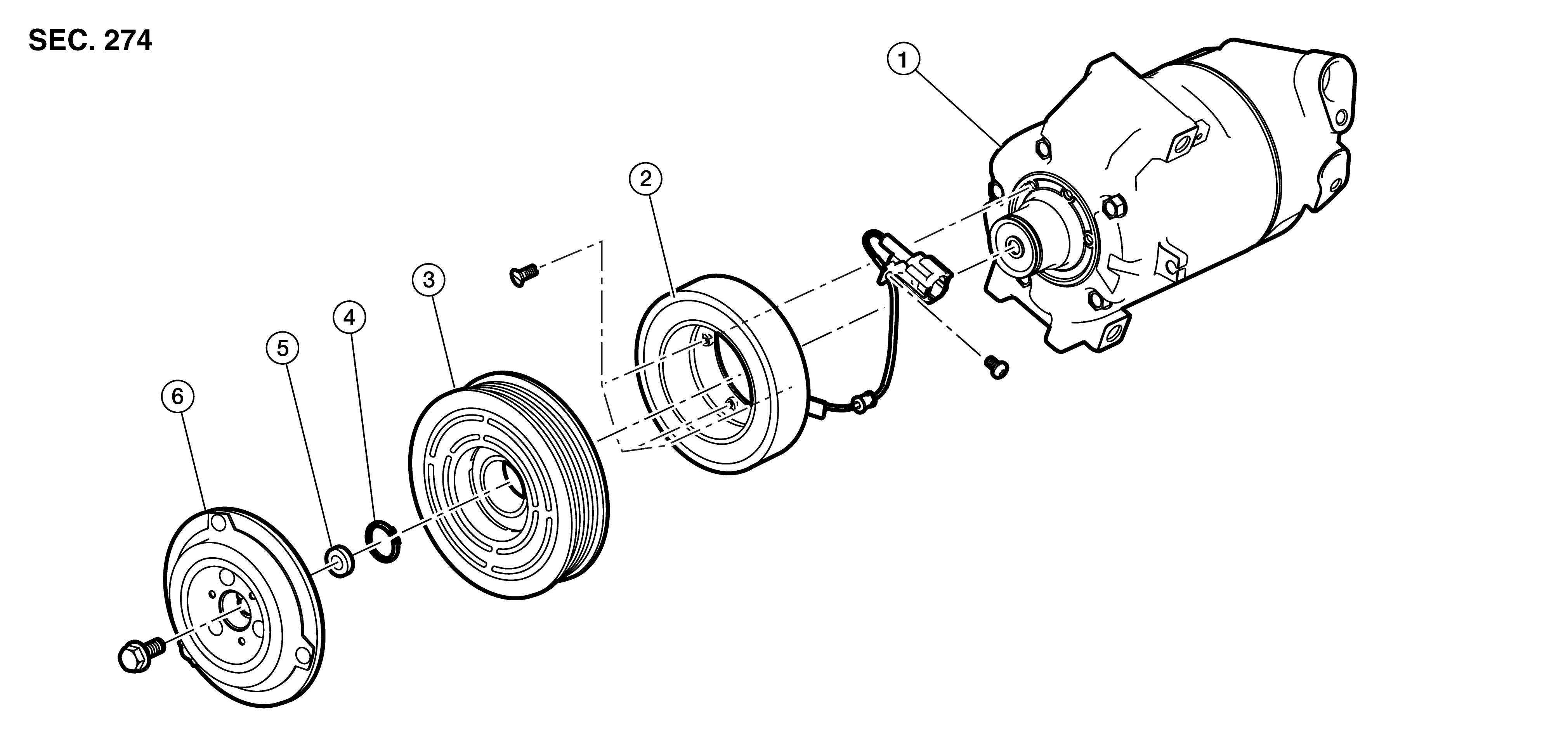

CUMMINS 5.0L
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Compressor
|
2.
|
Magnet coil
|
3.
|
Pulley
|
|
4.
|
Snap ring
|
5.
|
Shim(s)
|
6.
|
Clutch disc
|

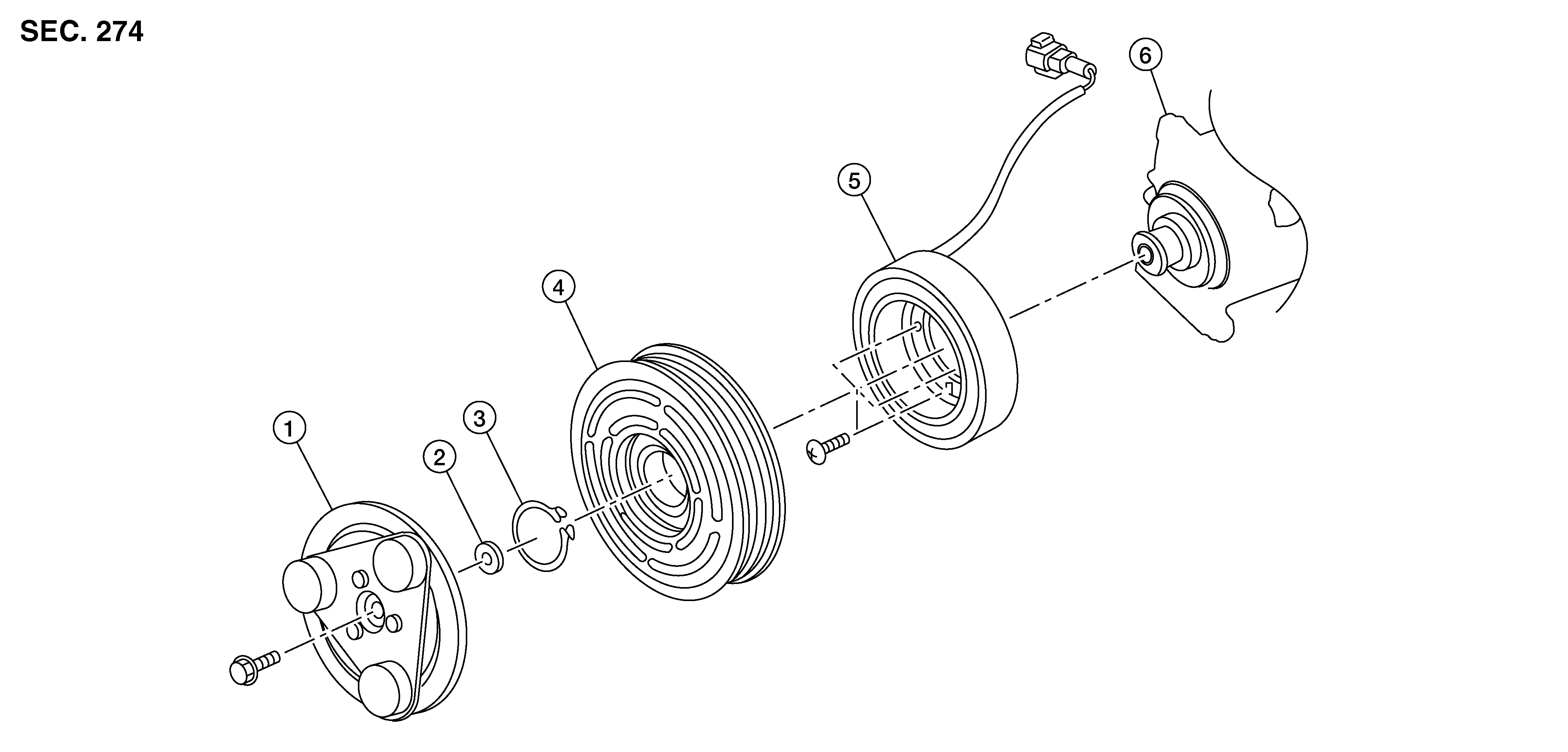

VK56VD
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Clutch disc
|
2.
|
Shim(s)
|
3.
|
Snap ring
|
|
4.
|
Pulley
|
5.
|
Magnet coil
|
6.
|
Compressor
|
