Installation is in the reverse order of removal.

For models equipped with CUMMINS 5.0L engine, follow the procedure below for specific tightening sequences and procedures.

Finger-tighten the bolts securing the bracket and support.

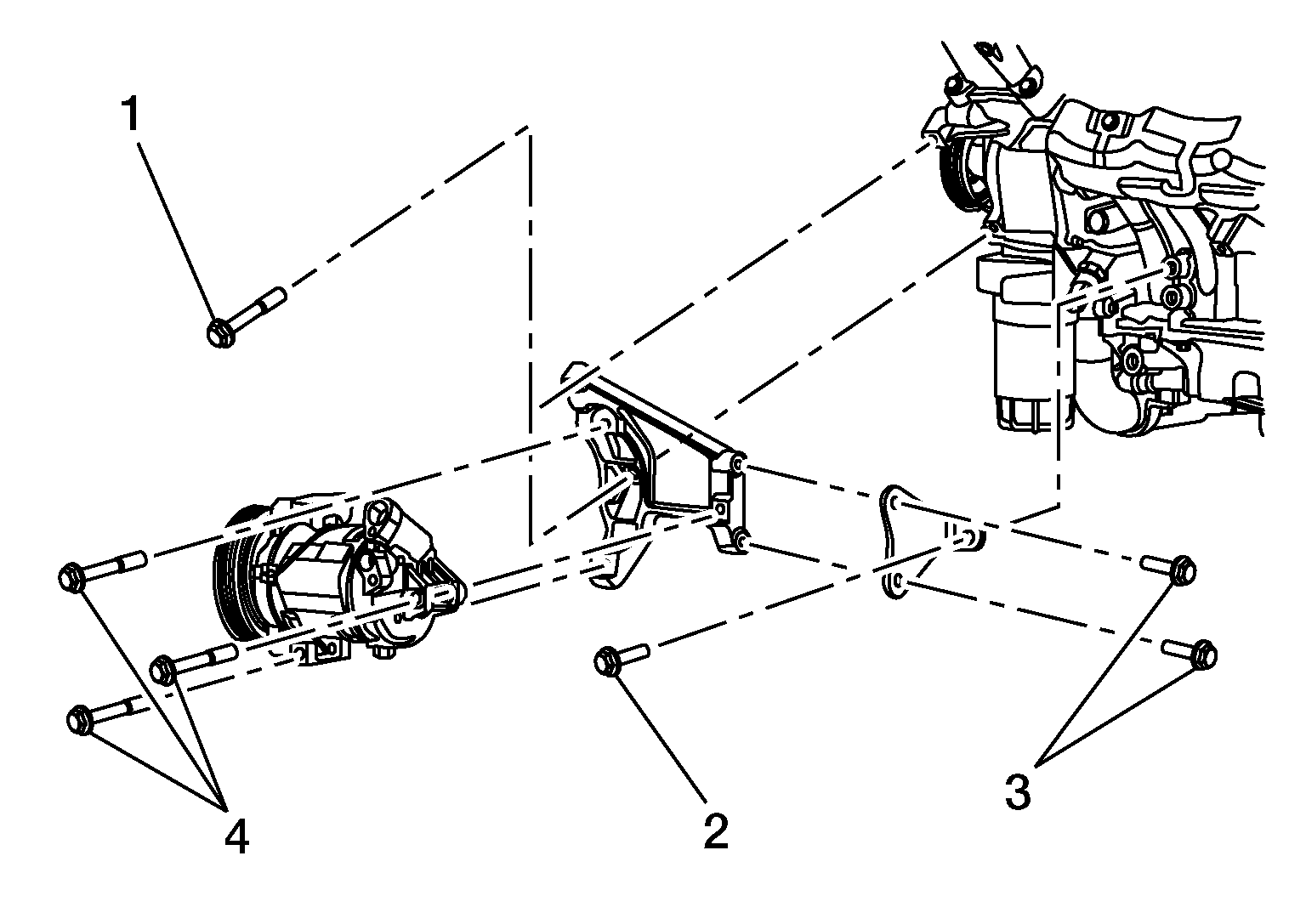

Torque the bolts securing the compressor bracket, compressor support, and compressor to specification in the sequence shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Bolts 1, 3	: 22 N.m (2.2 kg-m, 16 ft-lb)
Bolt 2	: 55 N.m (5.6 kg-m, 41 ft-lb)
Bolt 4	: 28N.m (2.9 kg-m, 21 ft-lb)

CAUTION:

Do not reuse the O-rings.
Apply A/C compressor oil to the new O-rings for installation.
After charging the A/C refrigerant, check for leaks. Refer to Leak Test .

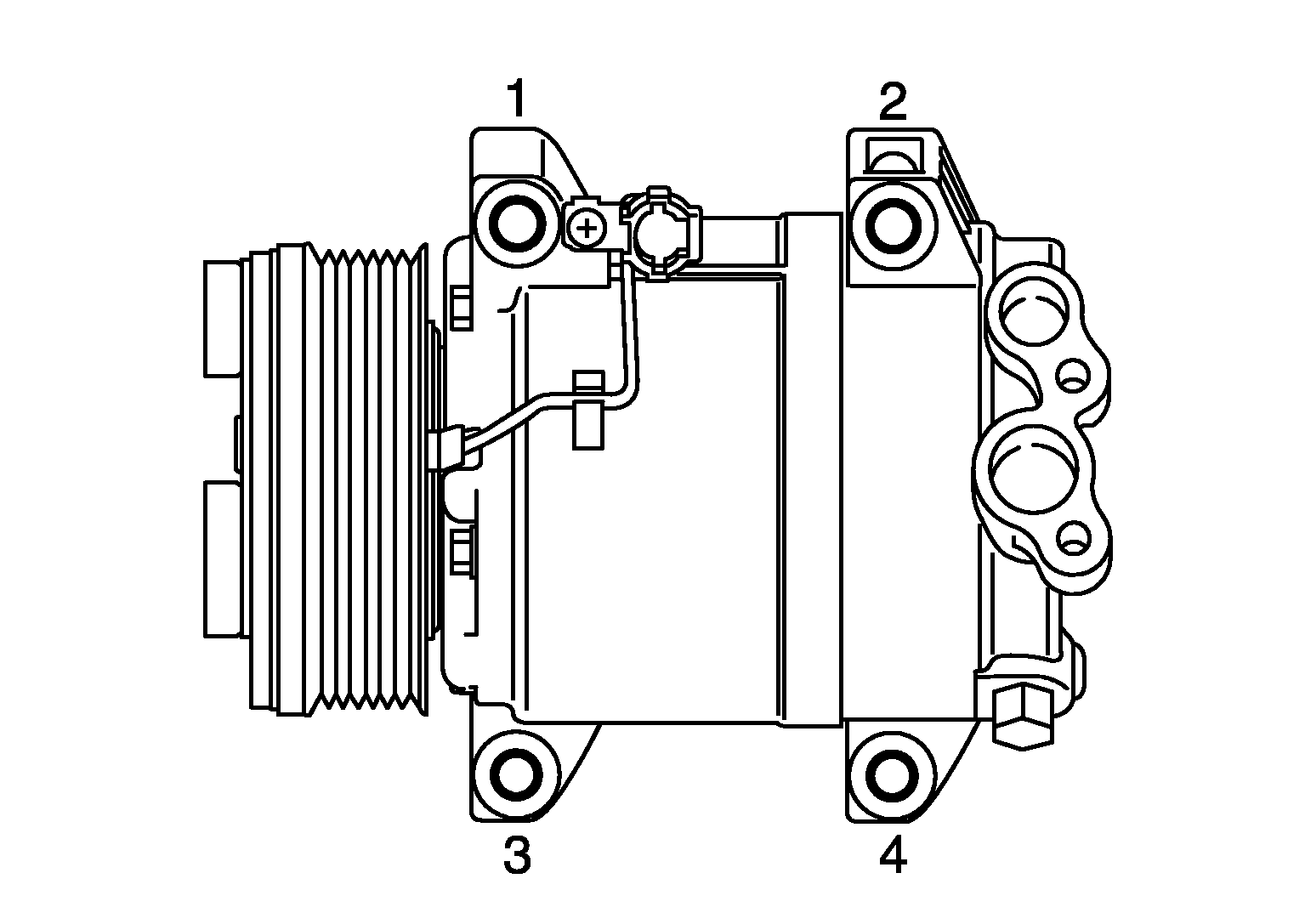

For models equipped with VK56VD engine, tighten to specification in sequence shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Bolts 3, 2, 4, 1	: Temporarily-tighten
Bolts 3, 2, 4, 1	: Finger-tighten
Bolts 3, 2, 4, 1	: 61.3 N.m (6.3 kg-m, 45 ft-lb)

CAUTION:

Do not reuse the O-rings.
Apply A/C compressor oil to the new O-rings for installation.
After charging the A/C refrigerant, check for leaks. Refer to Leak Test .
