Removal and Installation - Non-XD Models: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

NOTE:

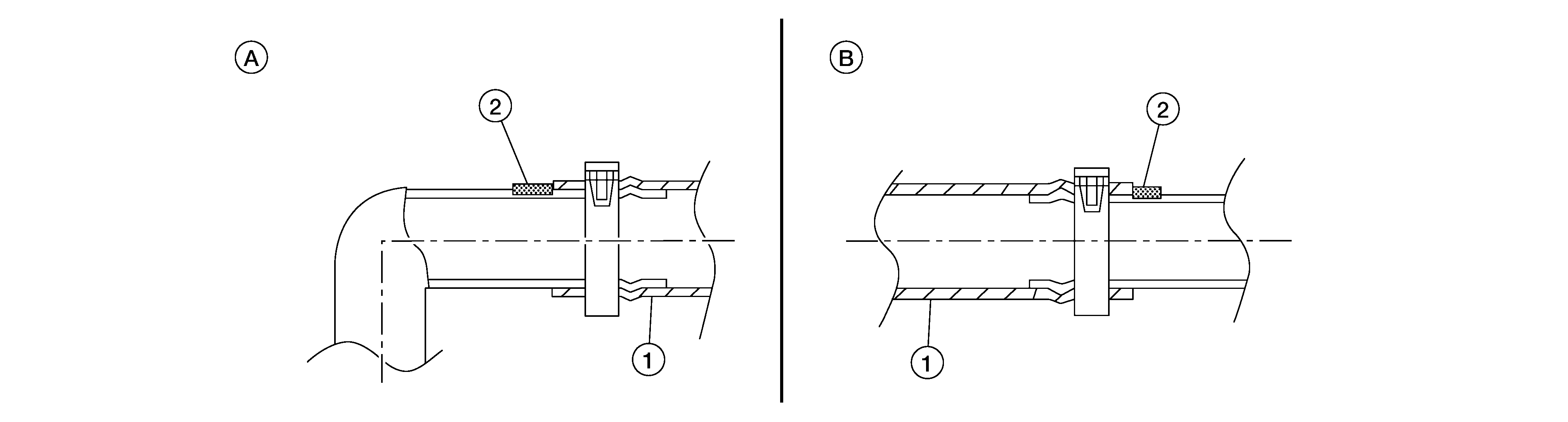

Insert the radiator hose [upper/lower (1)] all the way to the stopper (2).

Courtesy of NISSAN NORTH AMERICA, INC.

Radiator side

Engine side

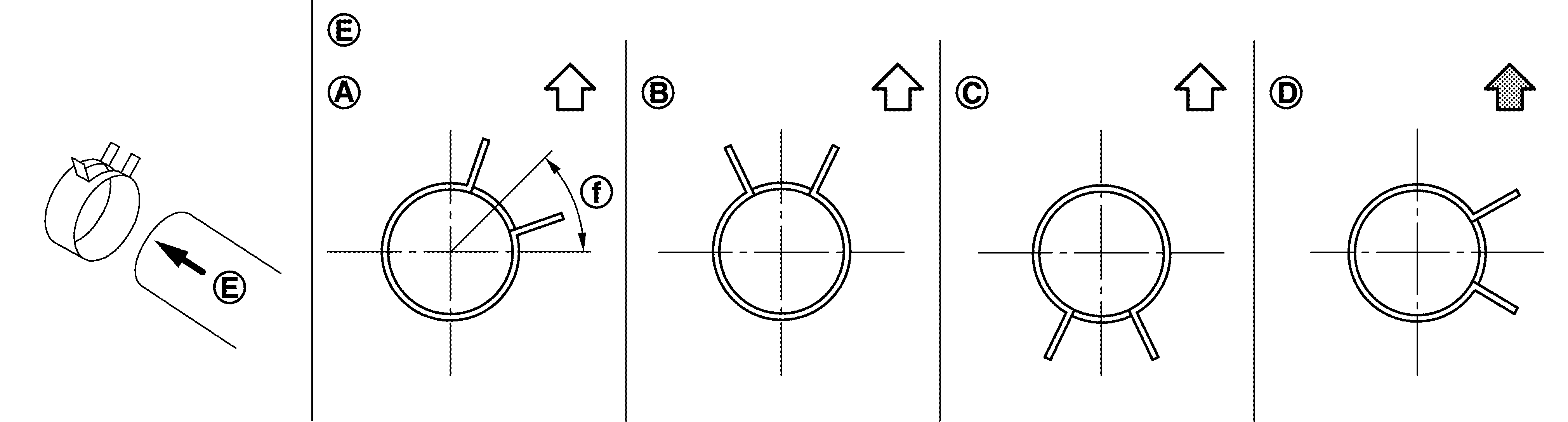

For the orientation of the hose clamp pawl, refer to the figure.

Radiator hose	Hose end	Paint mark	Position of hose clamp*
Radiator hose (upper)	Radiator side	Upper	B
Radiator hose (upper)	Engine side	Upper	A
Radiator hose (lower)	Radiator side	Lower	C
Radiator hose (lower)	Engine side	Left side	D

*Refer to the illustrations for the specific position each hose clamp tab.

Courtesy of NISSAN NORTH AMERICA, INC.

E.	View E	F.	45°
	: Vehicle upper		: Vehicle front

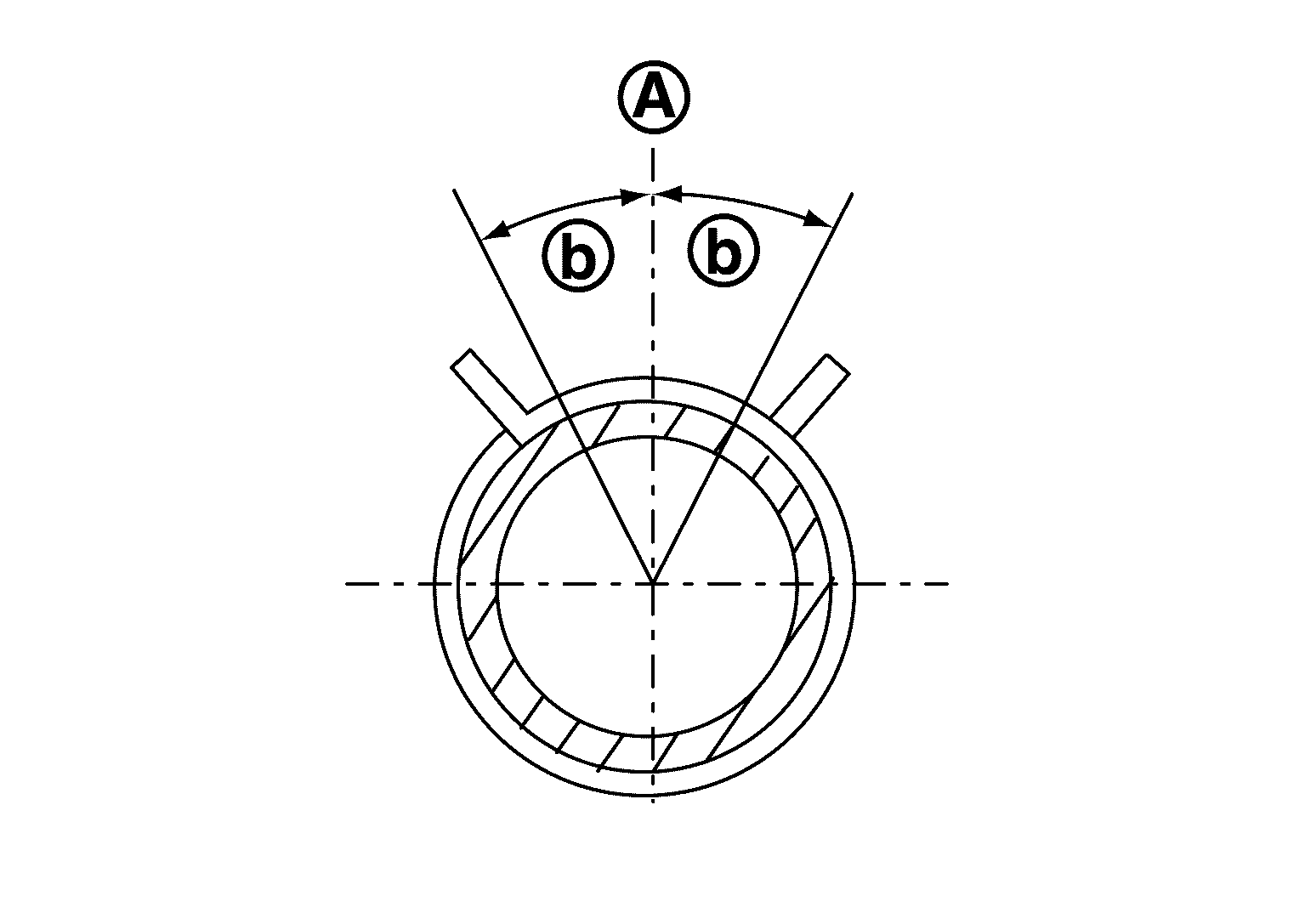

The angle (b) created by the hose clamp pawl and the specified line (A) must be within ±15° as shown in the figure.

Courtesy of NISSAN NORTH AMERICA, INC.

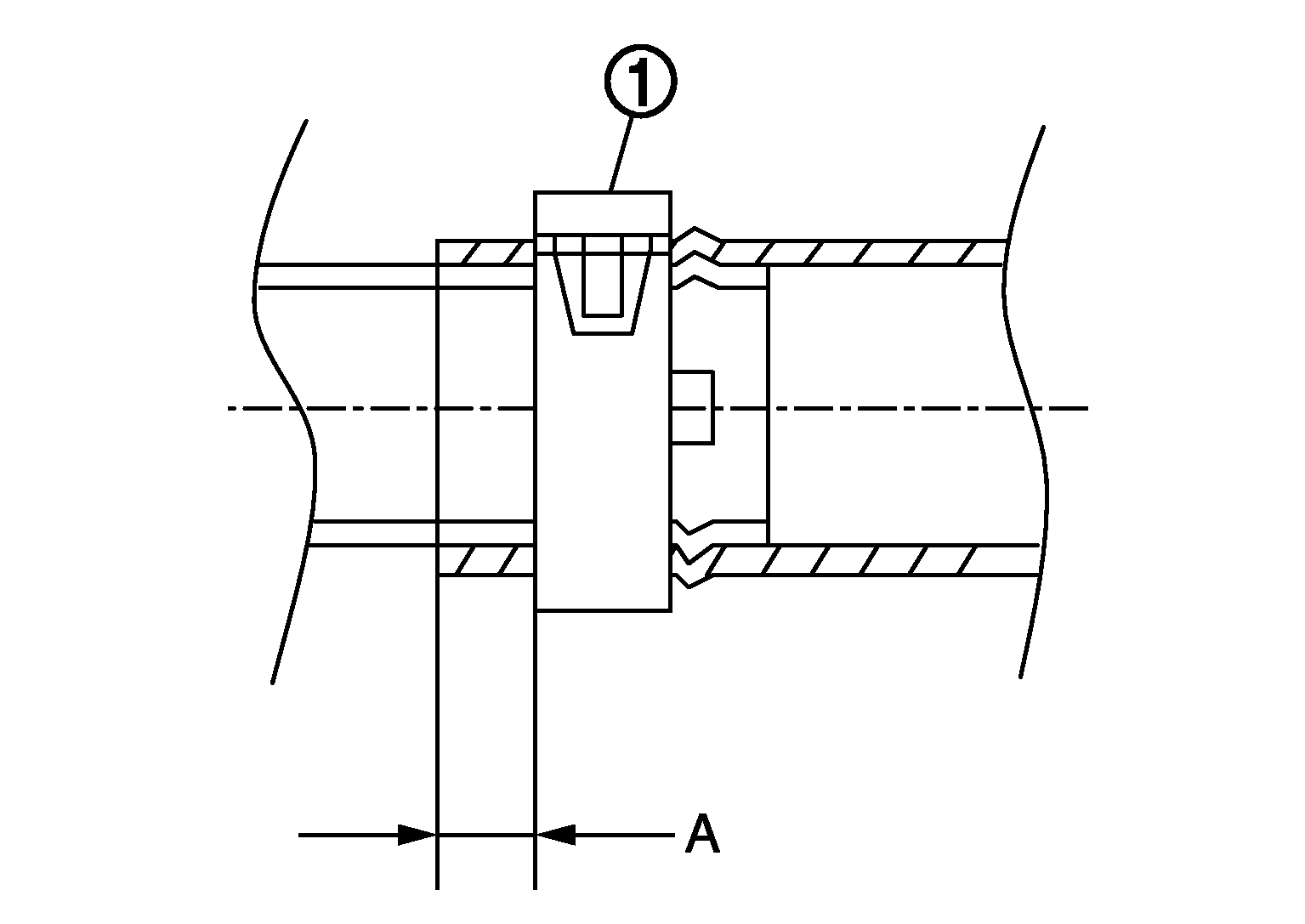

To install hose clamps (1), check that the dimension (A) from the end of the radiator hose to the hose clamp is within the reference value.

Courtesy of NISSAN NORTH AMERICA, INC.

(A)	: 5 ± 2 mm (0.20 ± 0.08 in)
