Inspection After Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

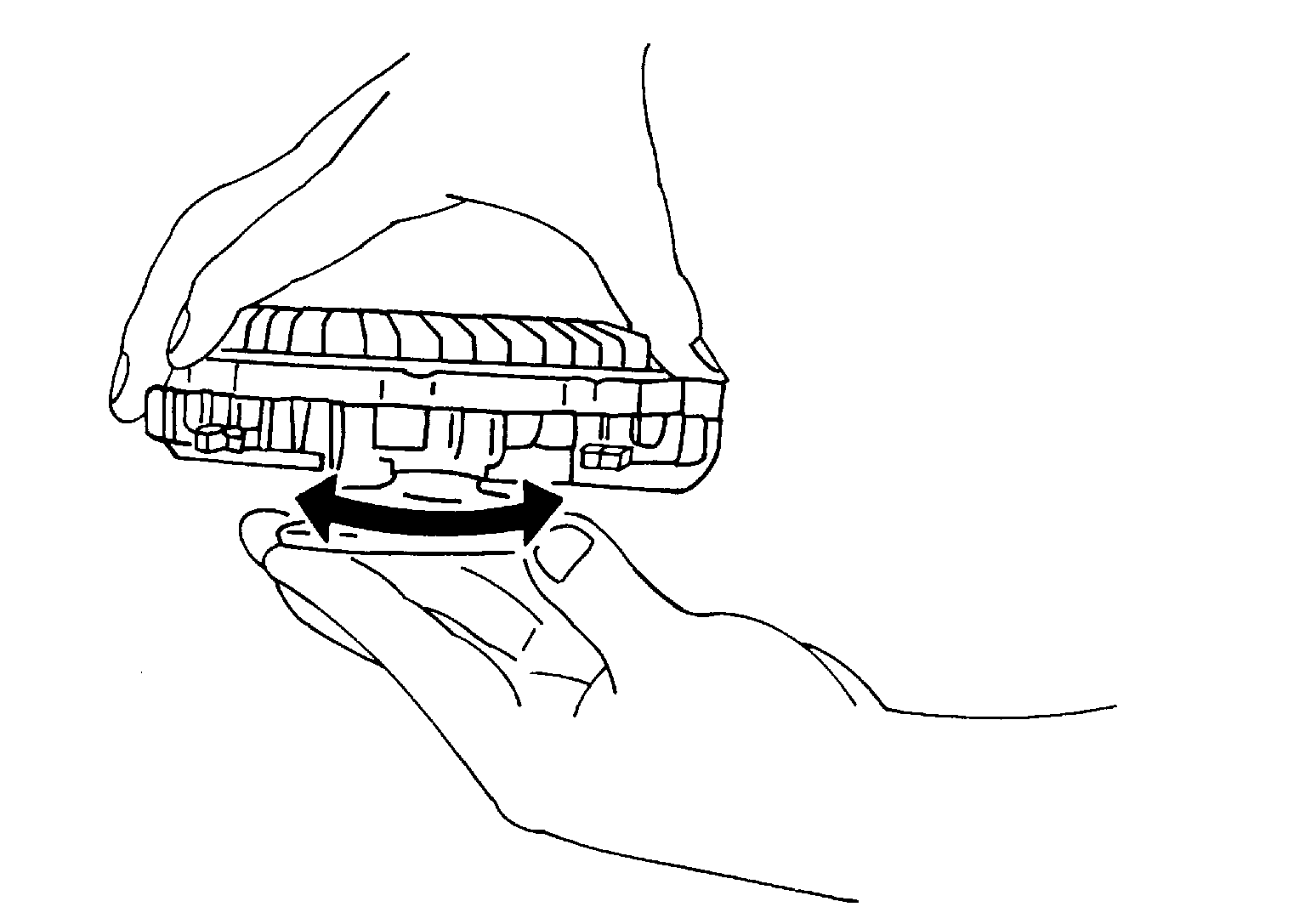

Fan Coupling
Inspect fan coupling for oil leakage and bimetal conditions.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
Cooling Fan Bracket
- Visually check that there is no significant looseness in the fan bracket shaft, and that it turns smoothly by hand.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- If there are any unusual concerns, replace the cooling fan pulley.
