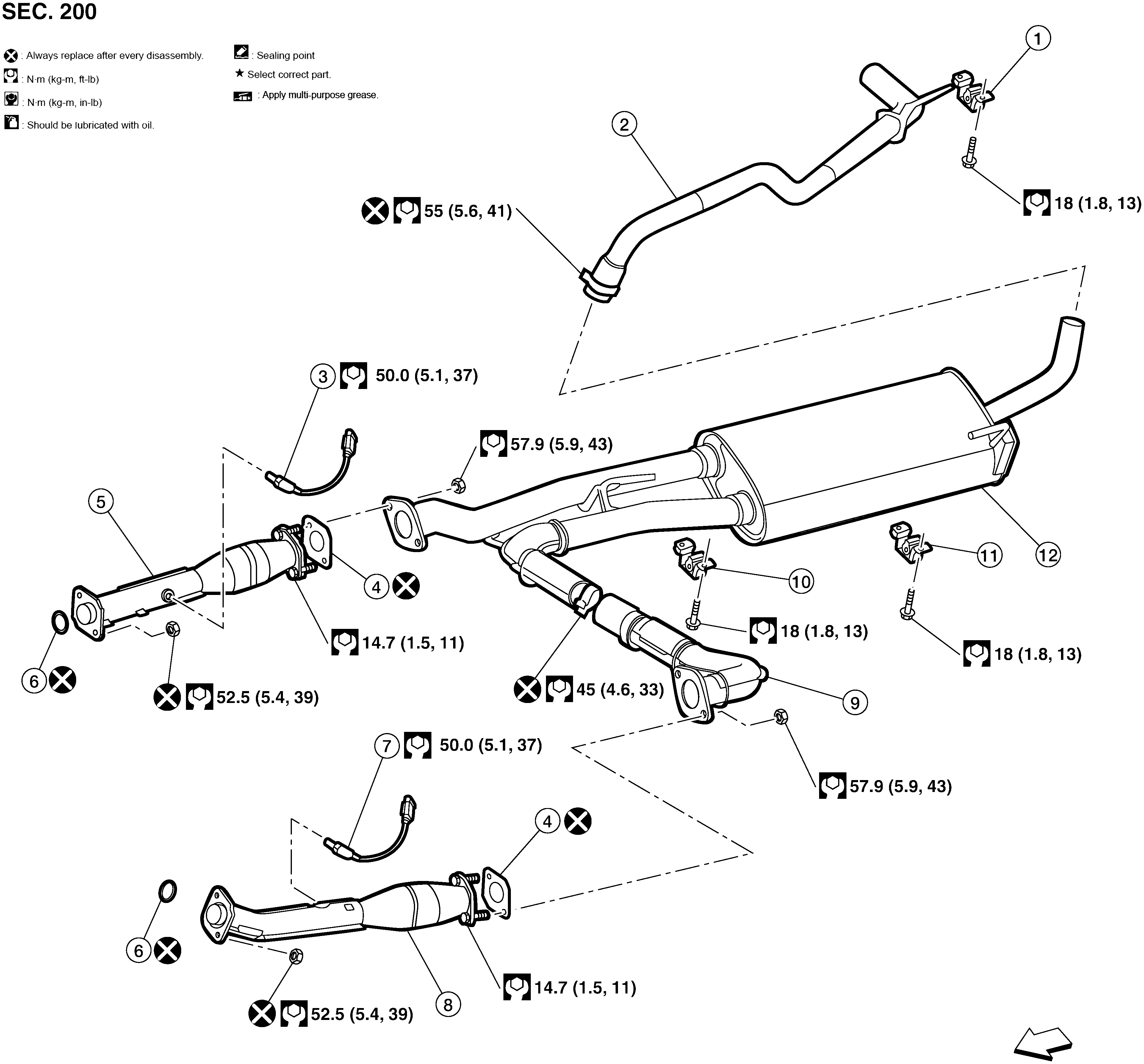

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Tailpipe hanger bracket |
2. |
Tailpipe |
3. |
Heated oxygen sensor 2 (bank 2) |
|
4. |
Gasket |
5. |
Exhaust tube (bank 2) |
6. |
Ring gasket |
|
7. |
Heated oxygen sensor 2 (bank 1) |
8. |
Exhaust tube (bank 1) |
9. |
Center exhaust tube |
|
10. |
Muffler hanger bracket front |
11. |
Muffler hanger bracket rear |
12. |
Main muffler |
|
|
Front |
