Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove AV control unit. Refer to Removal and Installation .

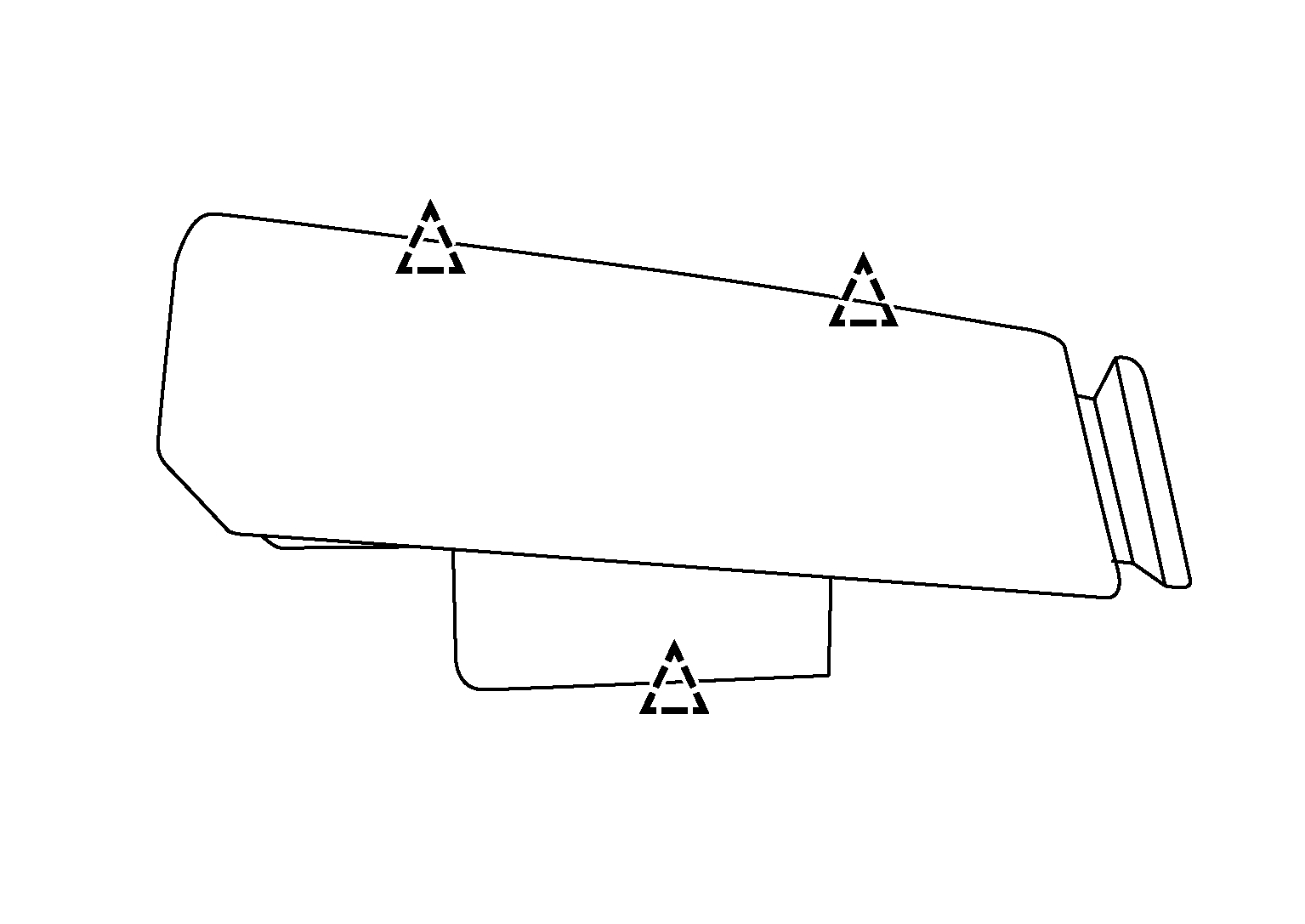

  2. Release the instrument finisher C clips using a suitable tool, then disconnect the harness connector and remove instrument finisher C.
    GNSAWJIA1863Z-863Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Clip
