Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove AV control unit. Refer to Removal and Installation .

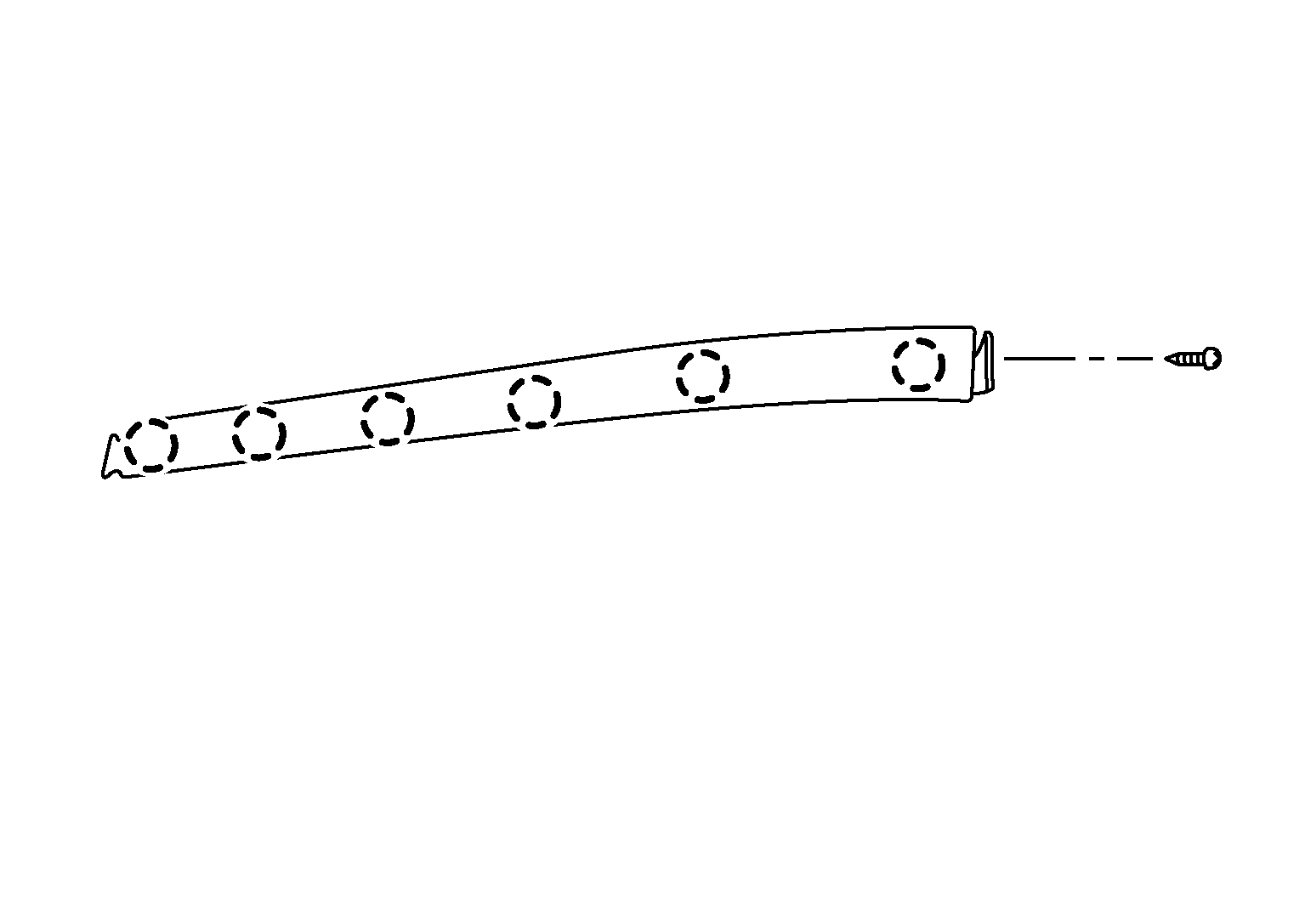

  2. Remove instrument finisher B screw.
    GNSAWJIA1862Z-862Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release instrument finisher B pawls, then disconnect harness connectors and remove instrument finisher B.

    SYMBOL

    : Pawl
