Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

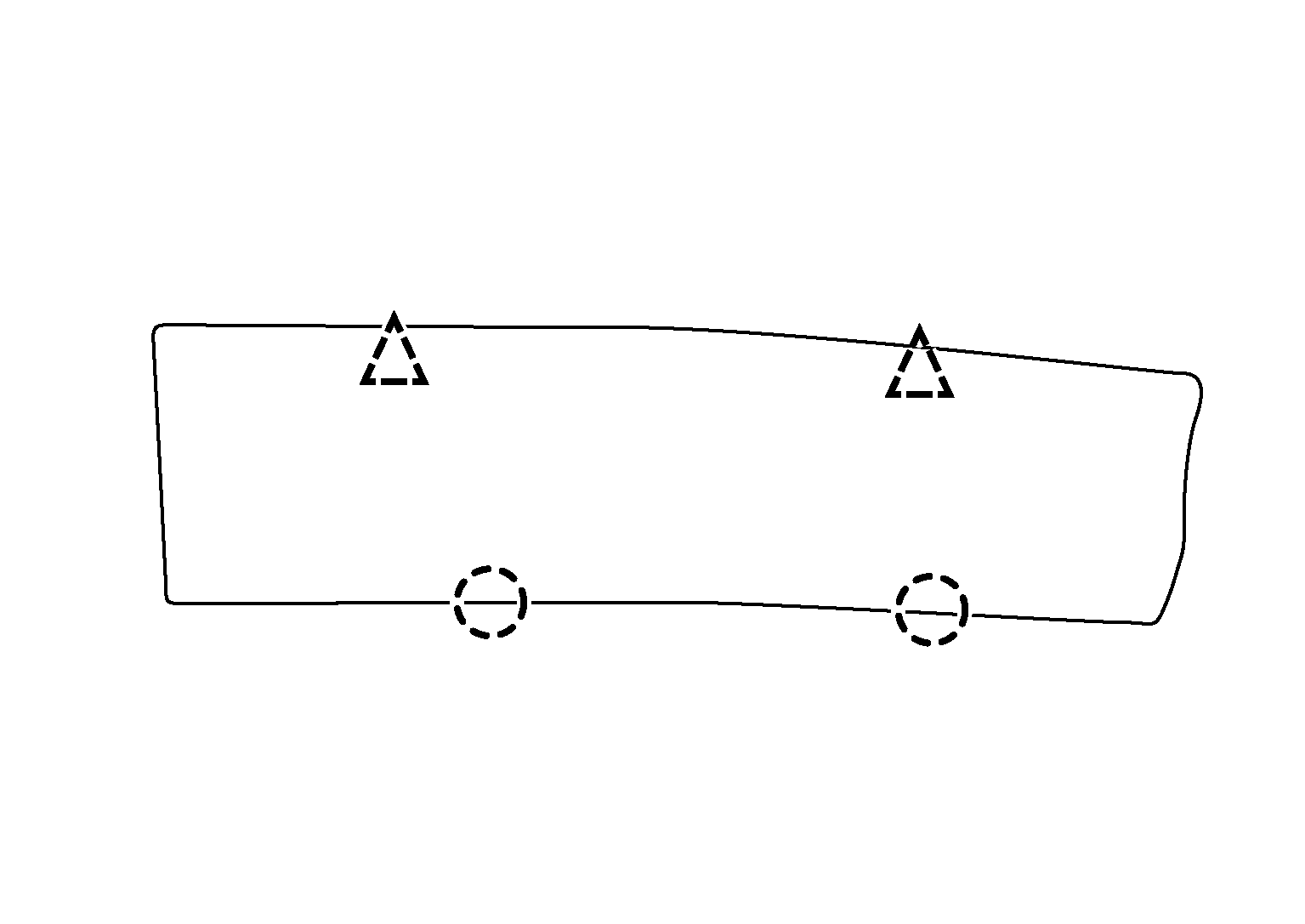

Release instrument finisher A clips and pawls using a suitable tool, then disconnect the harness connector and remove instrument finisher A.

SYMBOL

: Pawl

SYMBOL

: Clip
GNSAWJIA1861Z-861Courtesy of NISSAN NORTH AMERICA, INC.
