Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

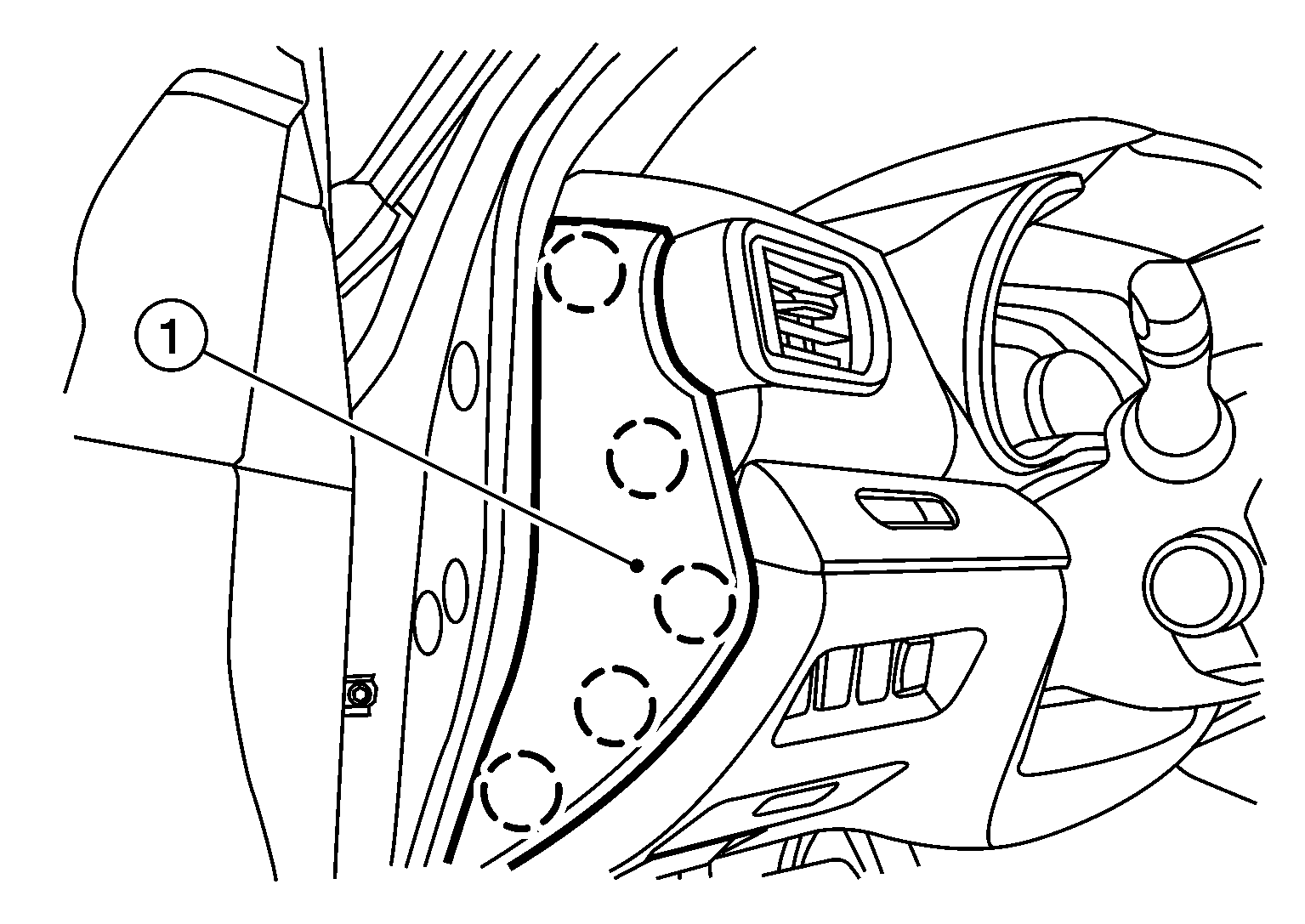

  1. Release instrument side finisher (LH) (1) pawls using a suitable tool and remove.
    GNSALIIA1087Z-087Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl

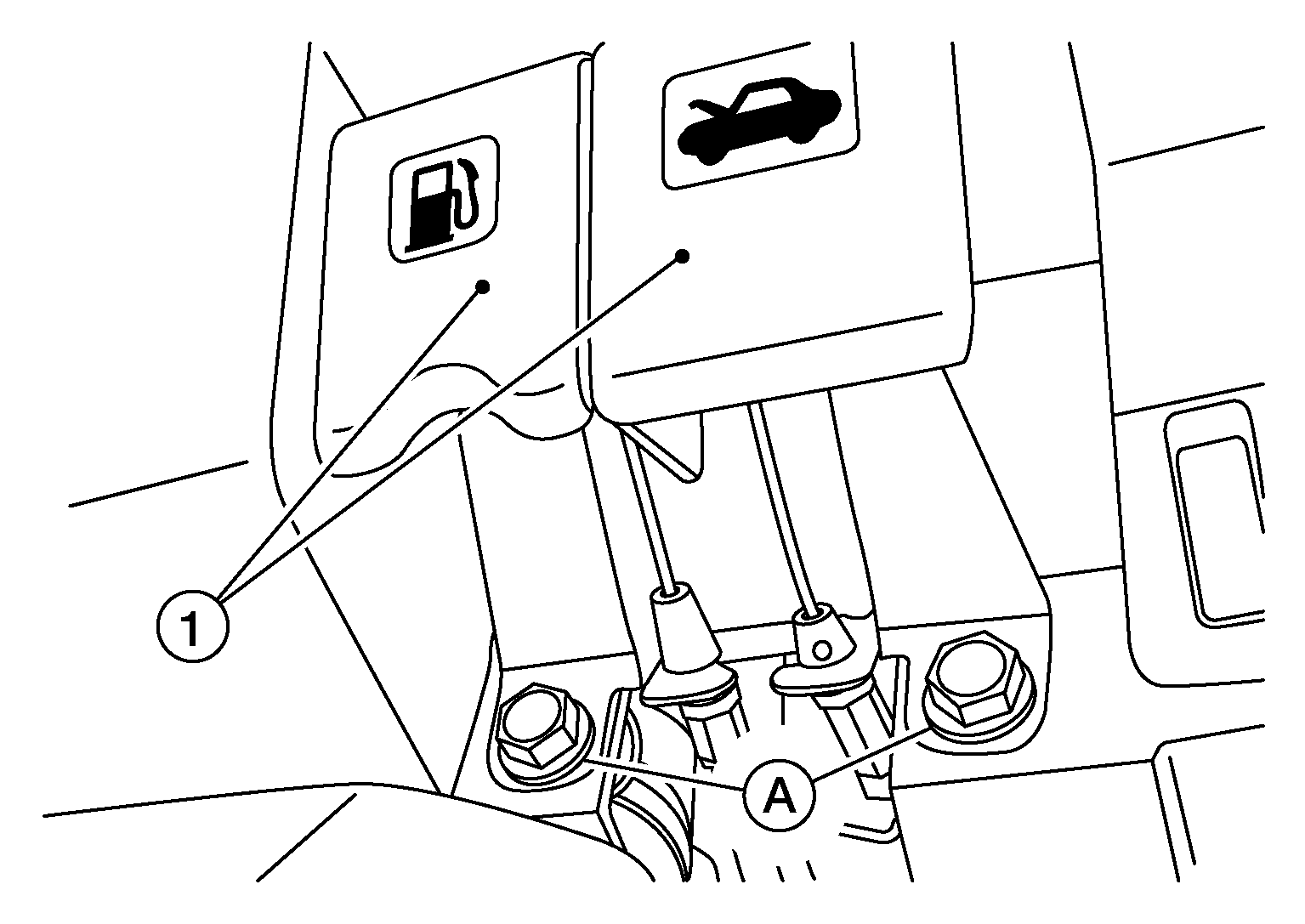

  2. Remove bolts (A) and fuel filler lid/hood lock release handle (1) from instrument lower panel LH.
    GNSAWJIA1308Z-308Courtesy of NISSAN NORTH AMERICA, INC.

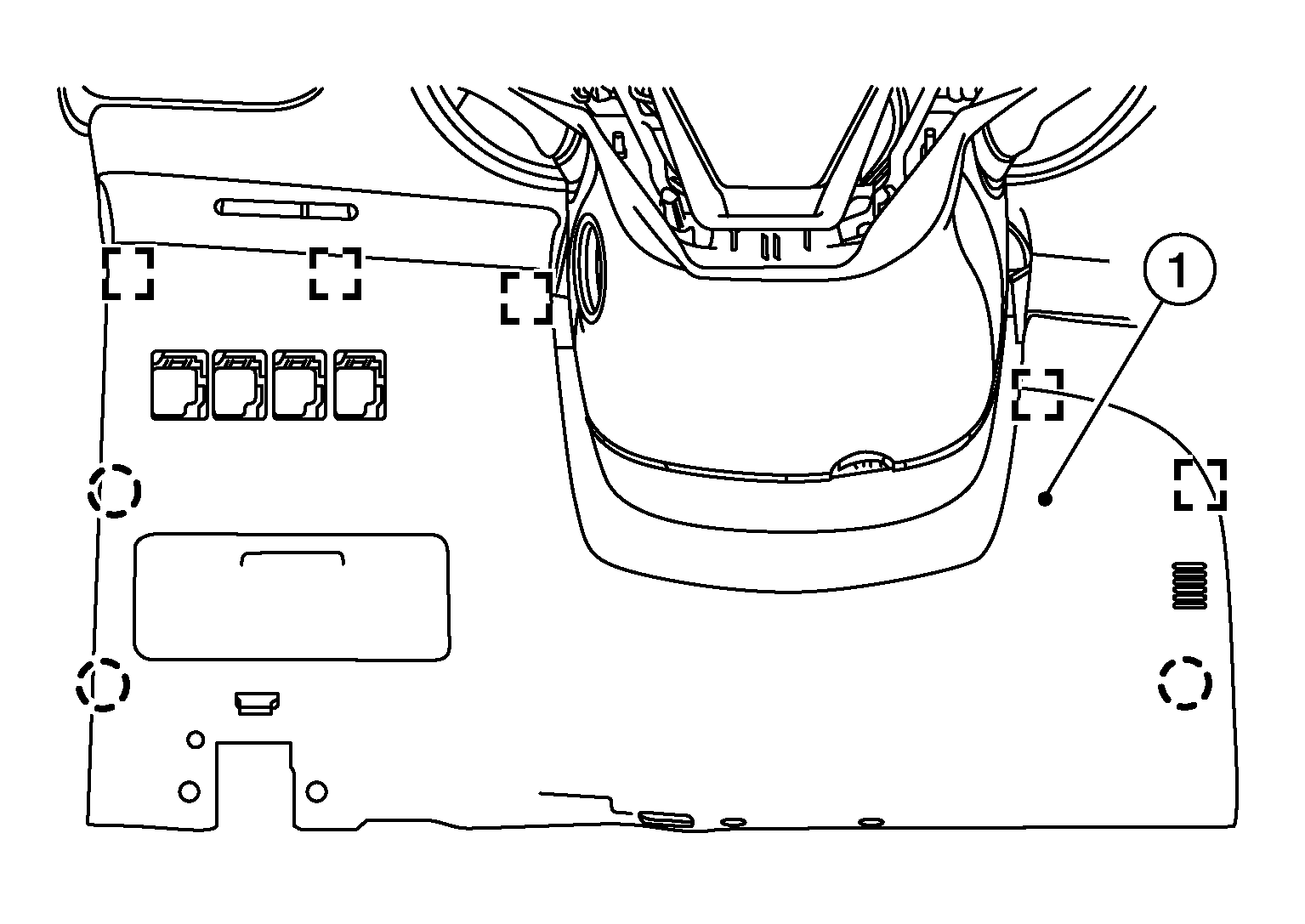

  3. Release instrument lower panel LH clips and pawls using a suitable tool.

    SYMBOL

    : Pawl
    GNSAWJIA1866Z-866Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect the harness connectors and aspirator hose.
  5. Release gap hider and remove instrument lower panel LH.
  6. If necessary, remove switch carrier. Refer to Exploded View .
