Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

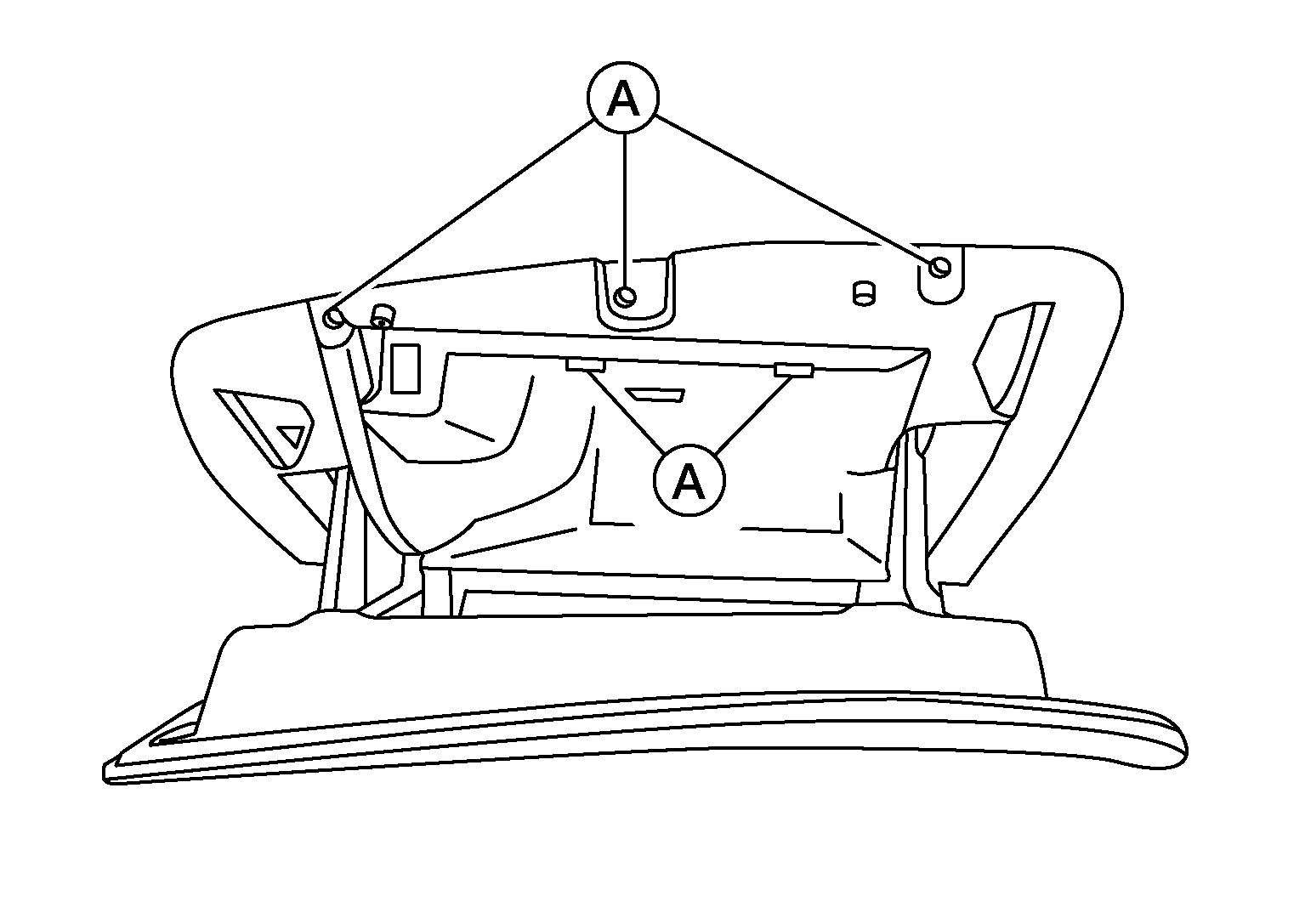

- Open the glove box door and remove the glove box assembly upper screws (A).
 Courtesy of NISSAN NORTH AMERICA, INC.
|

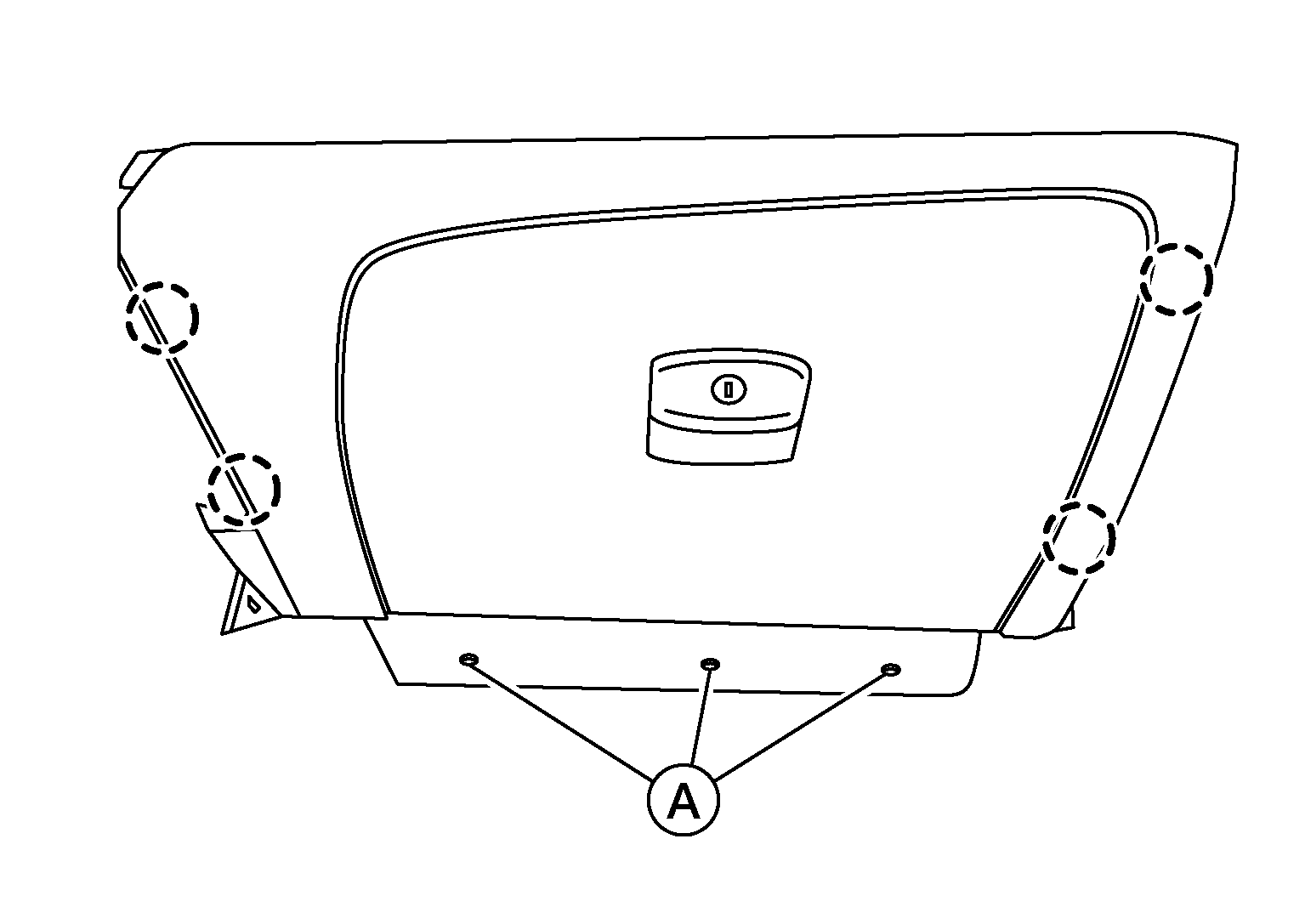

- Remove the glove box assembly lower screws (A).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Release glove box assembly pawls using a suitable tool.
|
|
: Pawl
|
- Disconnect harness connector and remove the glove box assembly.
