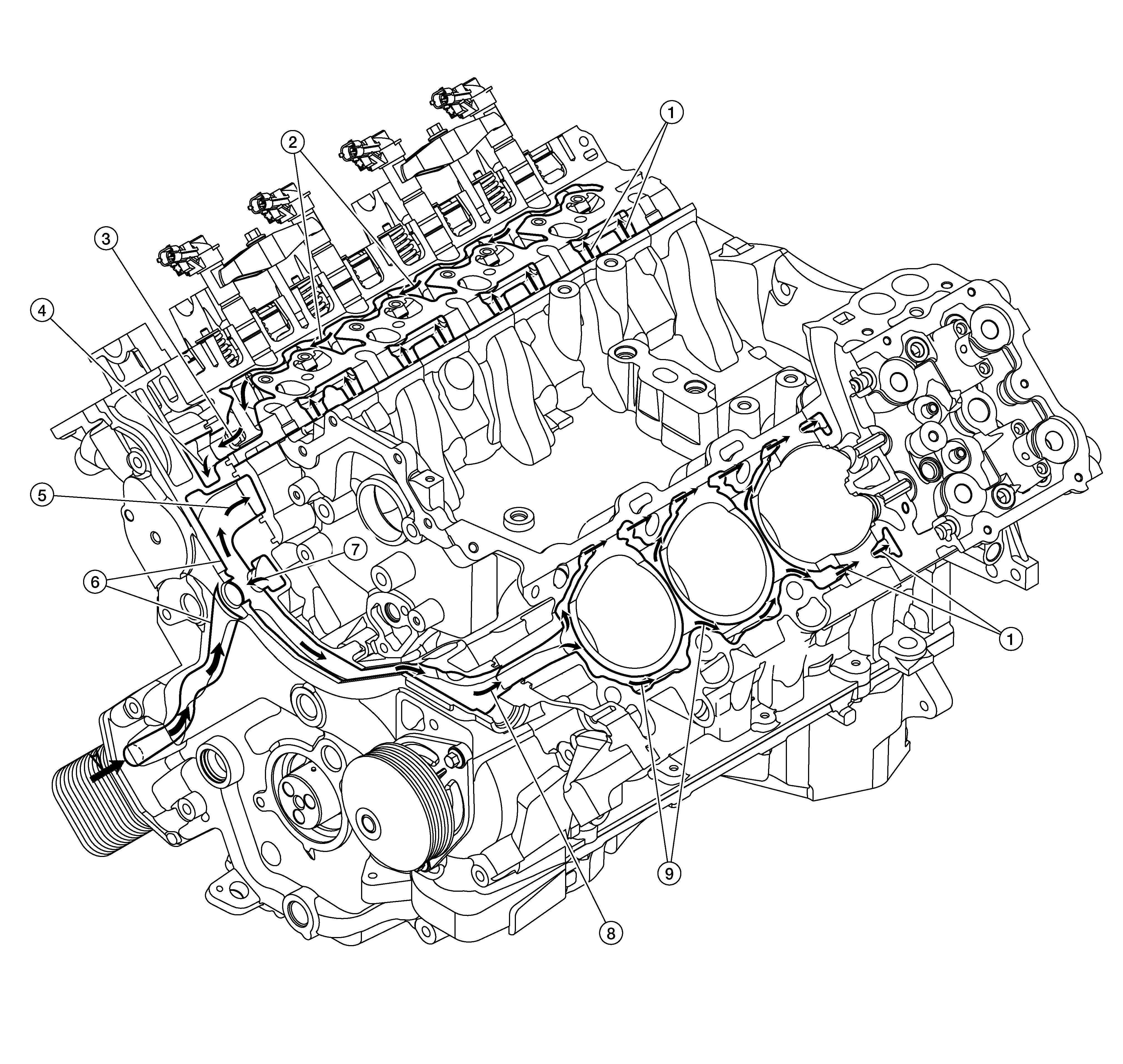

Cooling Schematic
|
1. |
Coolant supply to cylinder head |
2. |
Coolant flow through cylinder head |
3. |
Right bank cylinder head coolant flow to front cover (left bank similar) |
|
4. |
Coolant flow to thermostat |
5. |
Coolant supply to right bank cylinder block |
6. |
Front cover coolant passage |
|
7. |
Oil cooler coolant outlet |
8. |
Coolant supply to left bank cylinder block |
9. |
Coolant flow around cylinders |
|

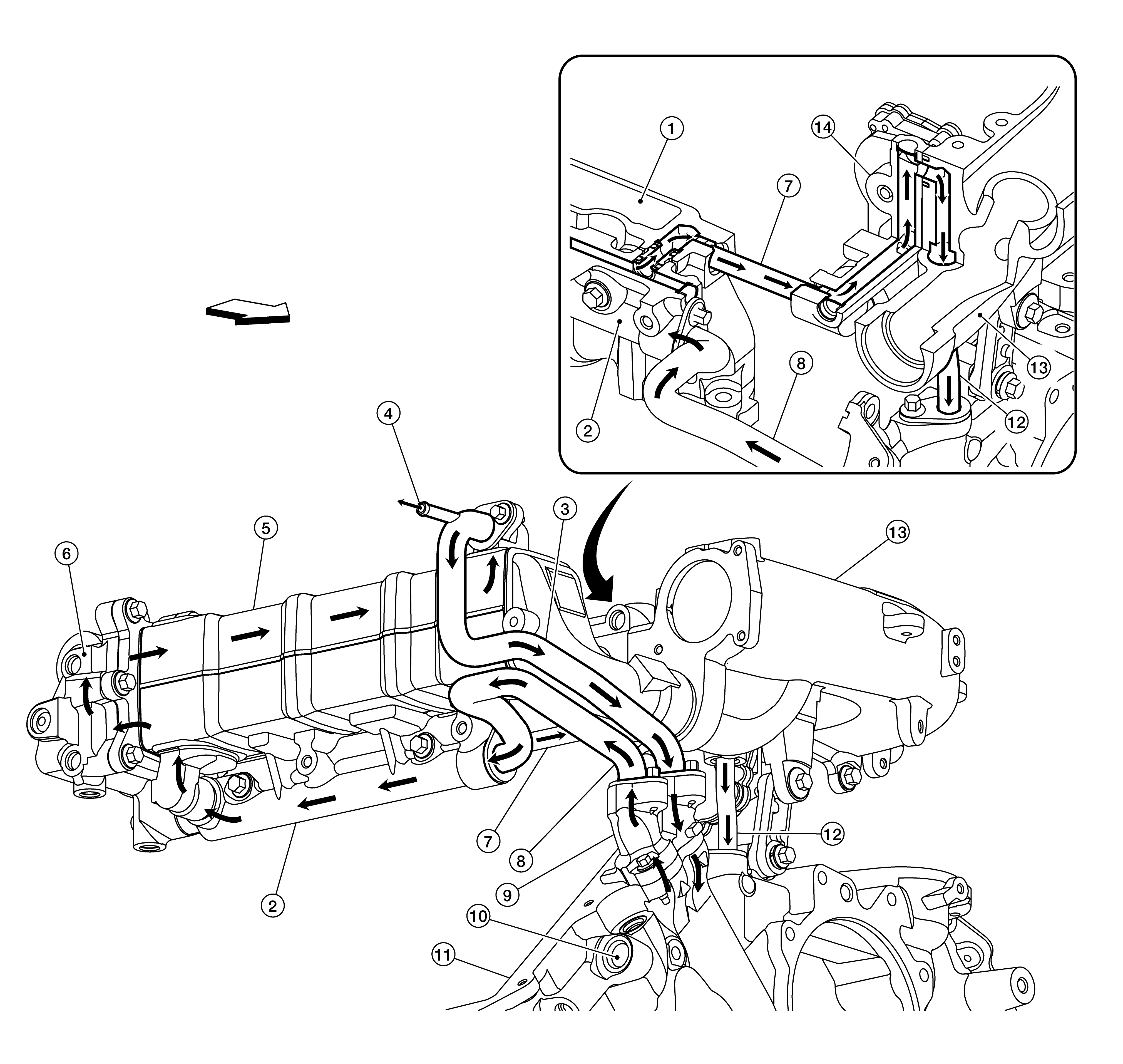

1. |
Air intake manifold |
2. |
EGR coolant manifold |
3. |
EGR coolant return to front cover through water transfer connection |
|
4. |
De-aeration port (to reservoir tank) |
5. |
EGR cooler |
6. |
EGR valve |
|
7. |
Coolant flow to EGR bypass valve |
8. |
Coolant supply to EGR coolant manifold |
9. |
Water transfer connection |
|
10. |
Coolant outlet for cab heater |
11. |
Front cover |
12. |
EGR bypass valve coolant return to front cover |
|
13. |
Air intake manifold |
14. |
EGR bypass valve |
|
Front |
|

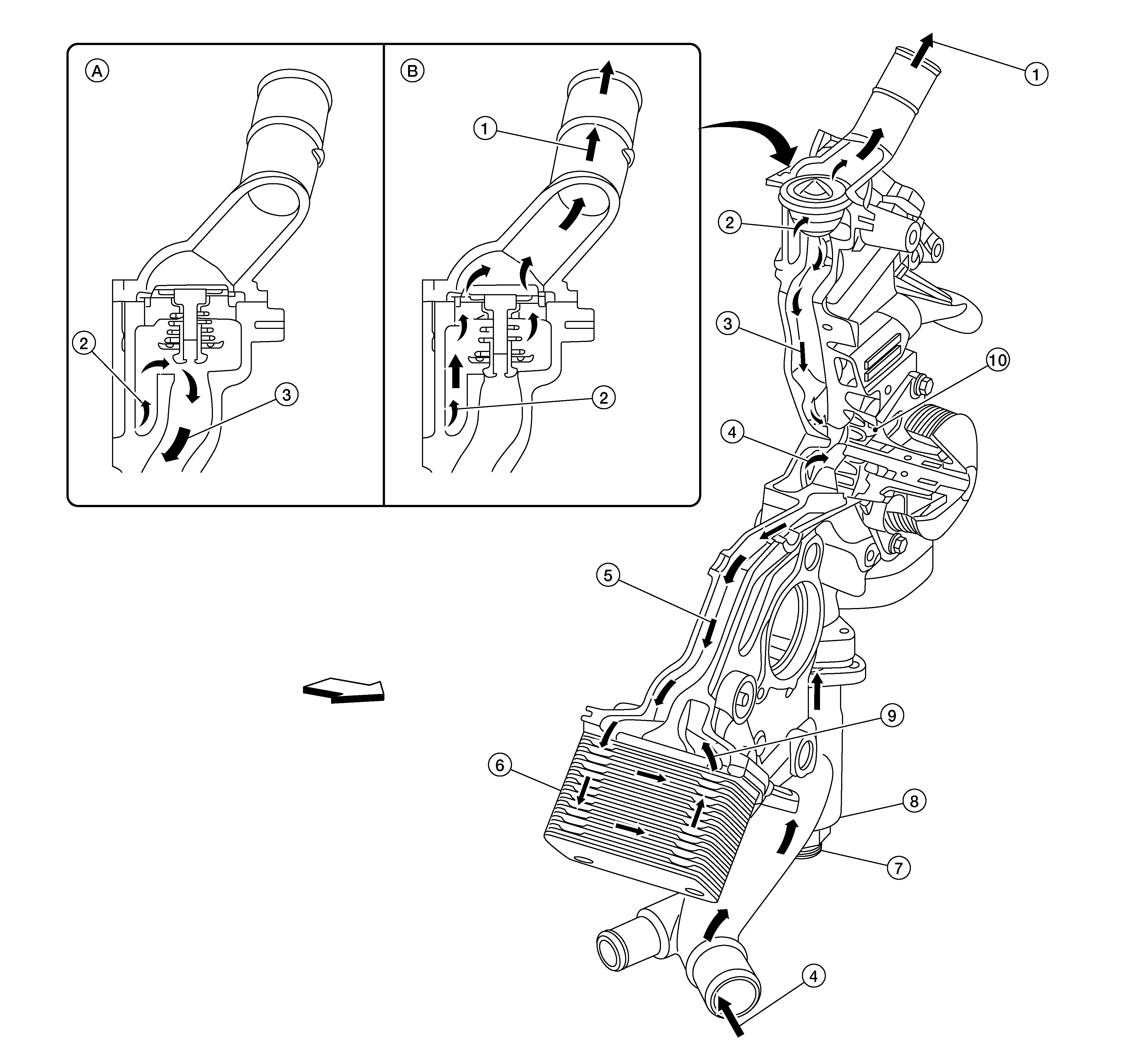

1. |
Coolant outlet to radiator. |
2. |
Coolant inlet from cylinder head |
3. |
Coolant return to water pump |
|
4. |
Coolant inlet from radiator |
5. |
Coolant supply to lubricating oil cooler |
6. |
Coolant flow through lubricating oil cooler |
|
7. |
Coolant heater |
8. |
Water inlet connection |
9. |
Coolant outlet to cylinder block |
|
10. |
Water pump impeller |
A. |
Thermostat closed |
B. |
Thermostat open |
|
|
Front |
