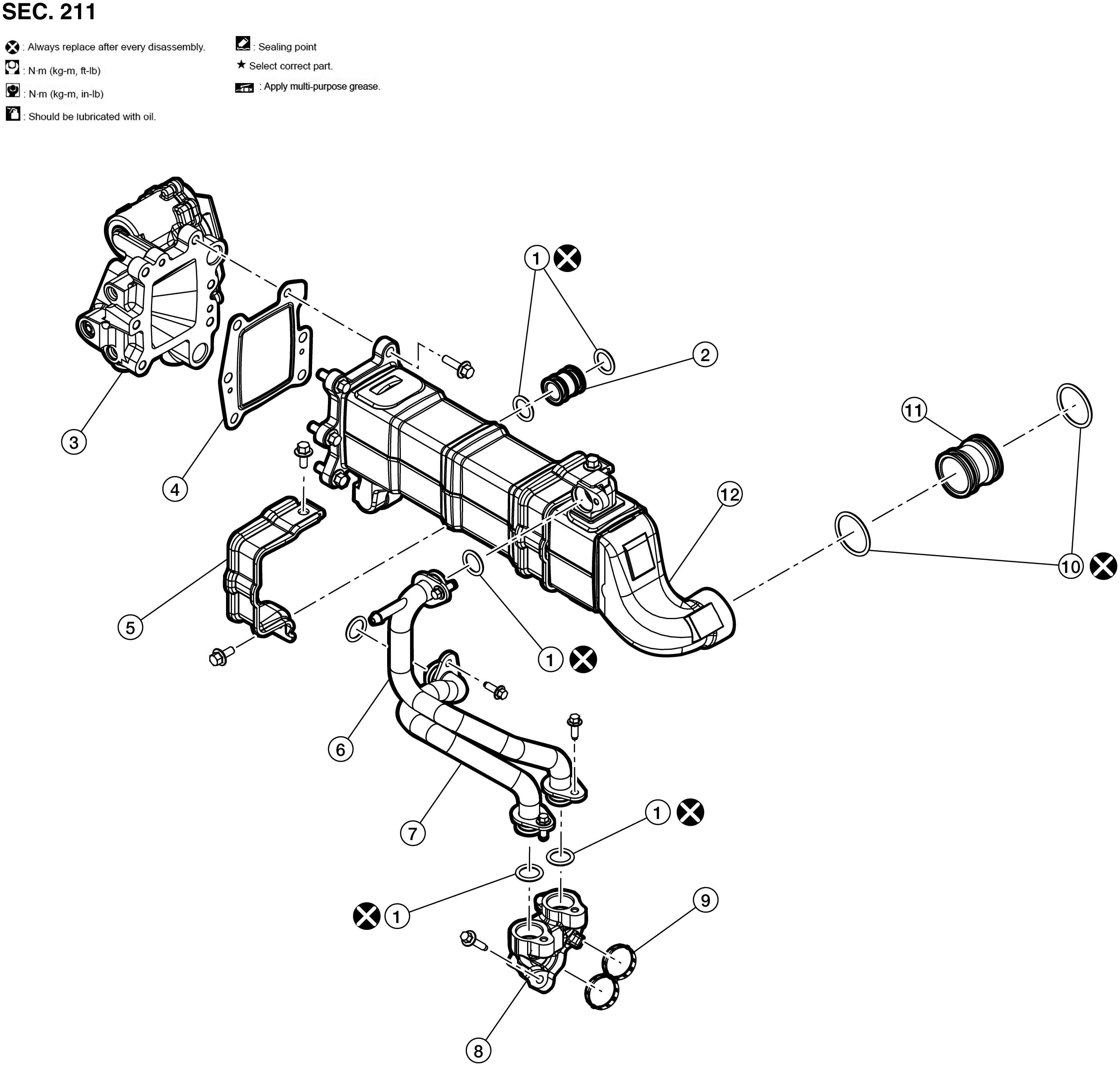

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
O-ring
|
2.
|
Tube connector
|
3.
|
EGR valve
|
|
4.
|
EGR valve gasket
|
5.
|
EGR cooler bracket
|
6.
|
Water outlet
|
|
7.
|
Water inlet
|
8.
|
Water transfer connection
|
9.
|
Water transfer connection gasket
|
|
10.
|
O-ring
|
11.
|
Tube connector
|
12.
|
EGR cooler
|
