Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

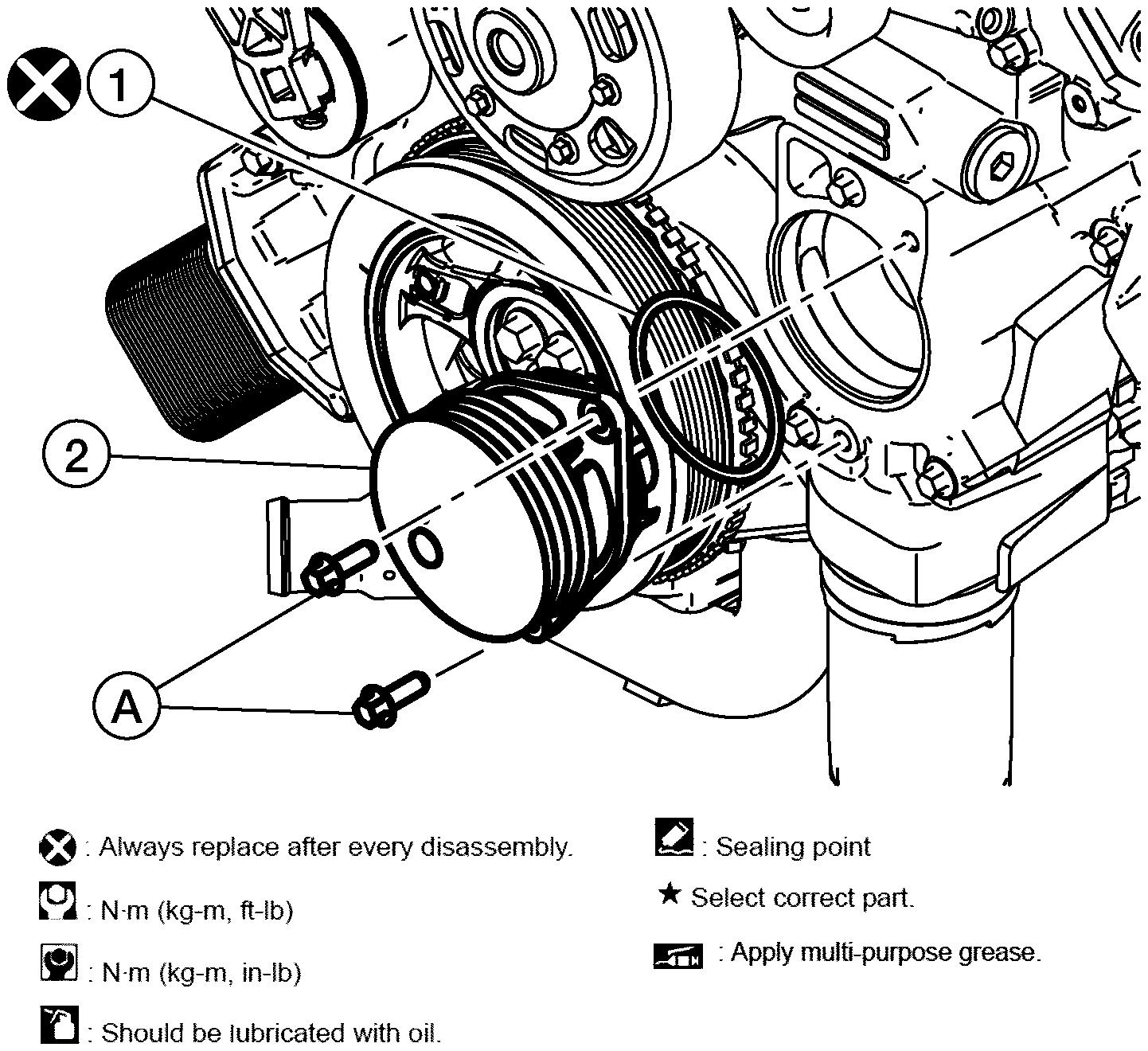

Install new water pump O-ring (1).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse water pump O-ring.

NOTE: Lubricate a new water pump O-ring.

Water pump bolts (A)

: 18 N.m (1.8 kg-m, 13 ft-lb)

(2)	: Water pump
