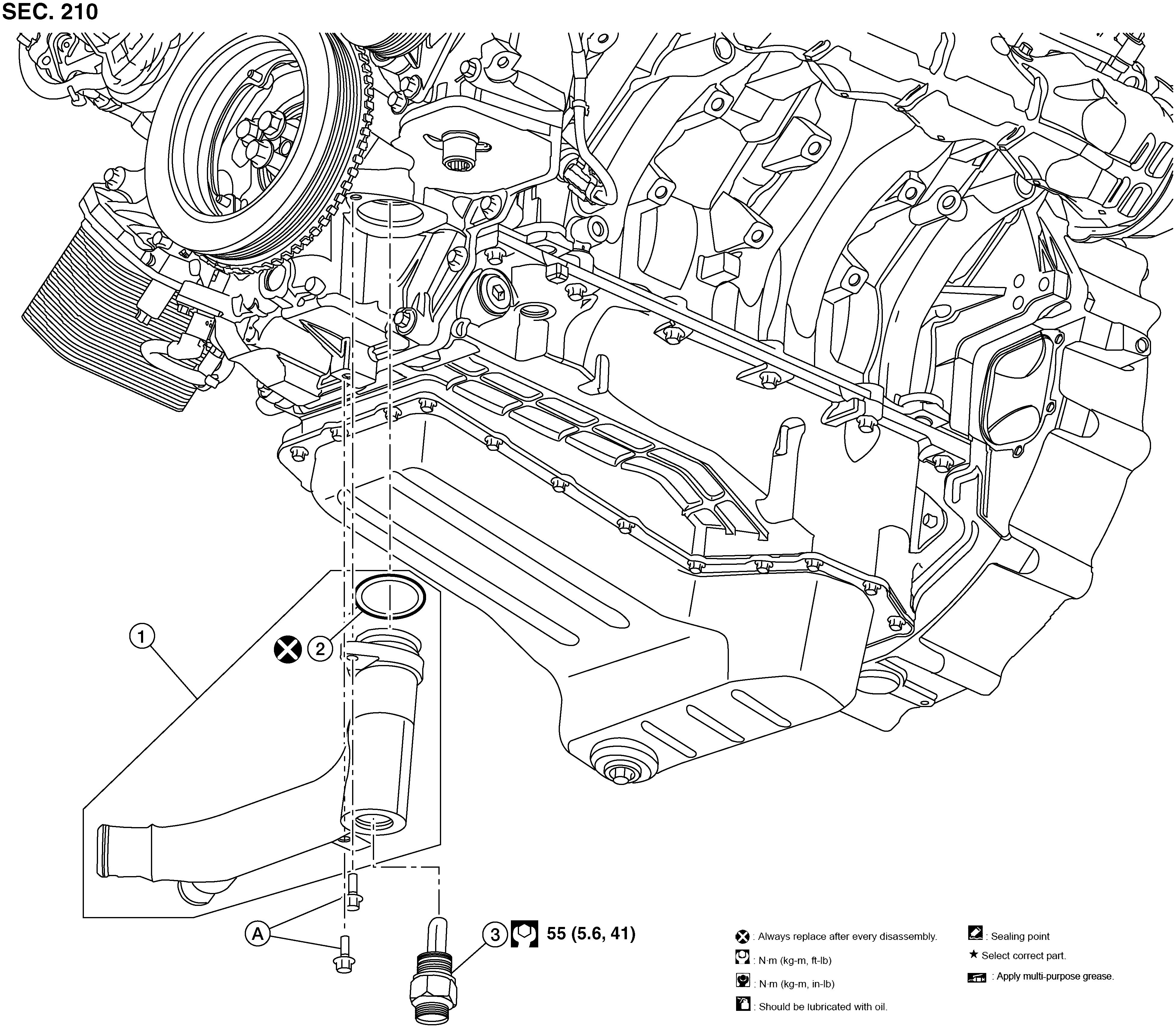

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Water inlet connection |
2. |
O-ring |
3. |
Coolant heater |
|
A. |
Refer to INSTALLATION. Refer to Installation . |
