Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain engine coolant from the radiator. Refer to Changing Engine Coolant .
  2. Remove core support cover. Refer to Exploded View - XD Models .
  3. Remove reservoir tank hose from the radiator side and the reservoir tank.

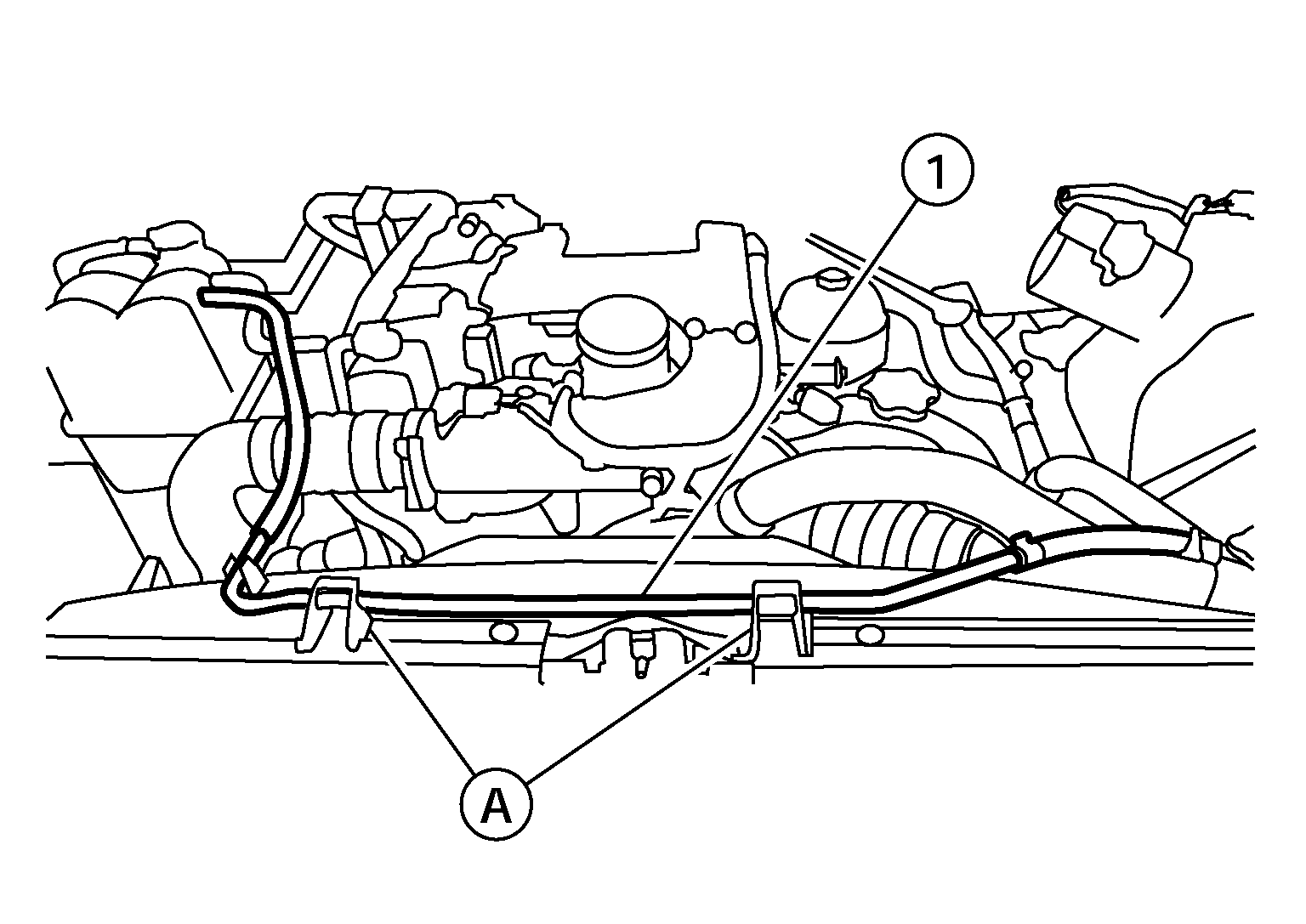

  4. Remove reservoir tank hose (1) from the radiator shroud (upper) (A).
    GNSALBIA1893Z-893Courtesy of NISSAN NORTH AMERICA, INC.
  5. Disconnect radiator hose (upper) from the radiator.
    CAUTION: Do not allow coolant to contact drive belt.
  6. Remove air inlet tube and air outlet tube. Refer to charge air cooler.
  7. Remove transmission tube from fan shroud (upper).
  8. Remove radiator shroud (lower) (1).
    GNSALBIA1894Z-894Courtesy of NISSAN NORTH AMERICA, INC.
    • Release the tabs, pull lower radiator shroud rearward and down to remove.
  9. Disconnect the radiator hose (lower) from the radiator.
    CAUTION: Do not allow coolant to contact drive belt.
  10. Remove the bolts (A) and remove the radiator shroud (upper) (1).
    GNSALBIA1895Z-895Courtesy of NISSAN NORTH AMERICA, INC.
  11. Remove the radiator pipe.
  12. Disconnect harness connector from fan coupling.
  13. Remove the cooling fan and fan coupling using Tool.

    Tool

    : - - (J 54480 2 R1)
  14. Remove the transmission lines from the radiator.
  15. Remove bolts from the radiator and remove the radiator.
