Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery or batteries. Refer to Battery Disconnect .
- Remove the front fender protector. Refer to Removal and Installation - Front Fender Protector .
- Remove the drive belt. Refer to Removal and Installation - Drive Belt .

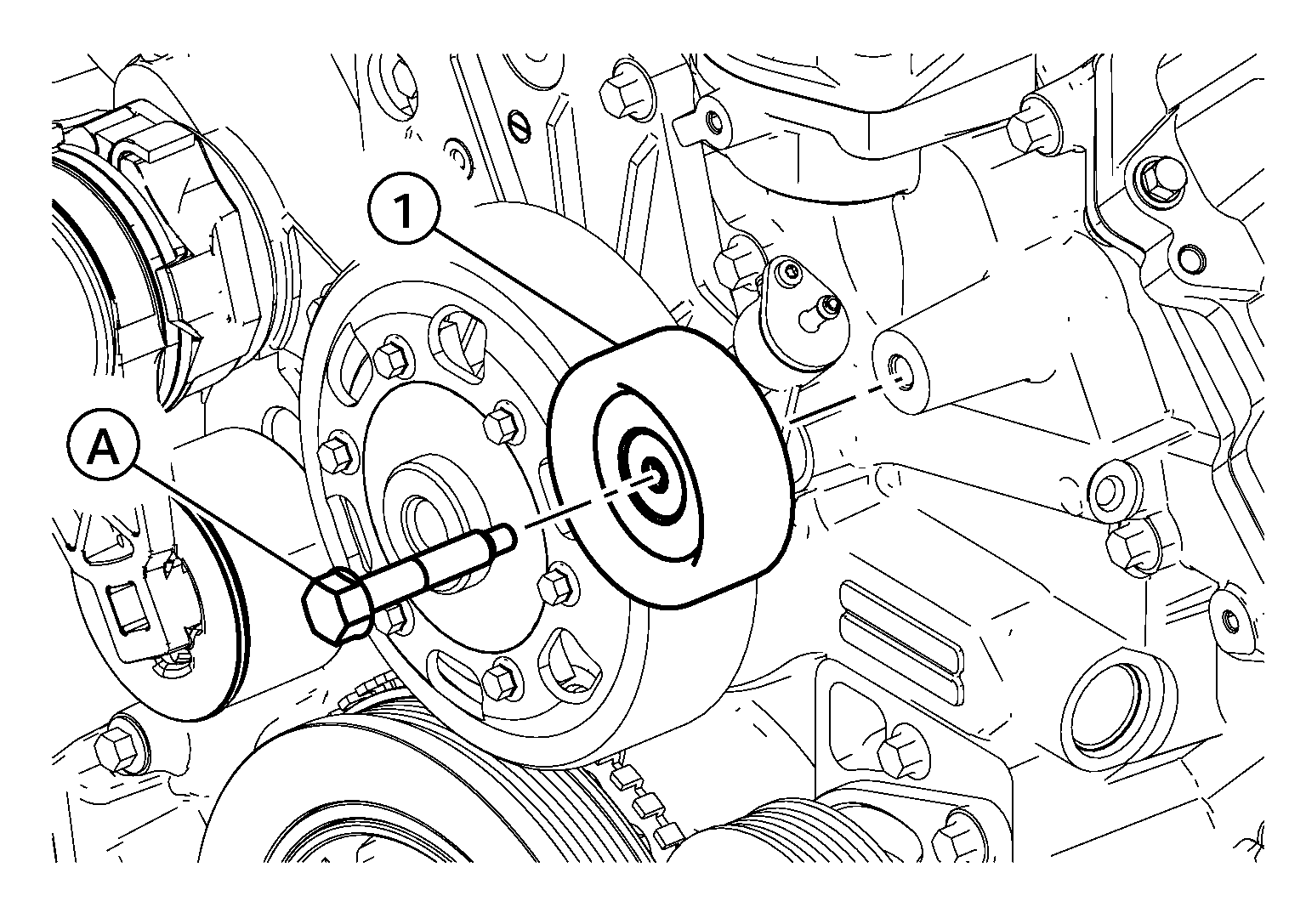

- Remove the idler pulley bolt (A) and remove the pulley, fan idler (1).
