Inspection After Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid the risk of injury to eyes and skin, when using caustic solutions, solvents, acids, or alkaline materials follow the manufactures recommendations for use and wear appropriate eye protection and protective clothing. Some of these materials are also flammable. To avoid risk of fire or burns, never smoke or allow sparks or flames (such as pilot lights, electrical switches, or welding equipment) in the work area. Avoid spilling onto a hot exhaust manifold which can cause a fire.
WARNING:
When using compressed air for cleaning, to avoid the risk of personal injury from flying debris and dirt:
- Do not exceed 207kPa (2.111kg/cm 2 , 30psi)
- Wear appropriate eye protection and protective clothing including gloves.
- Clean the fan pulley with solvent and dry with compressed air.
1.

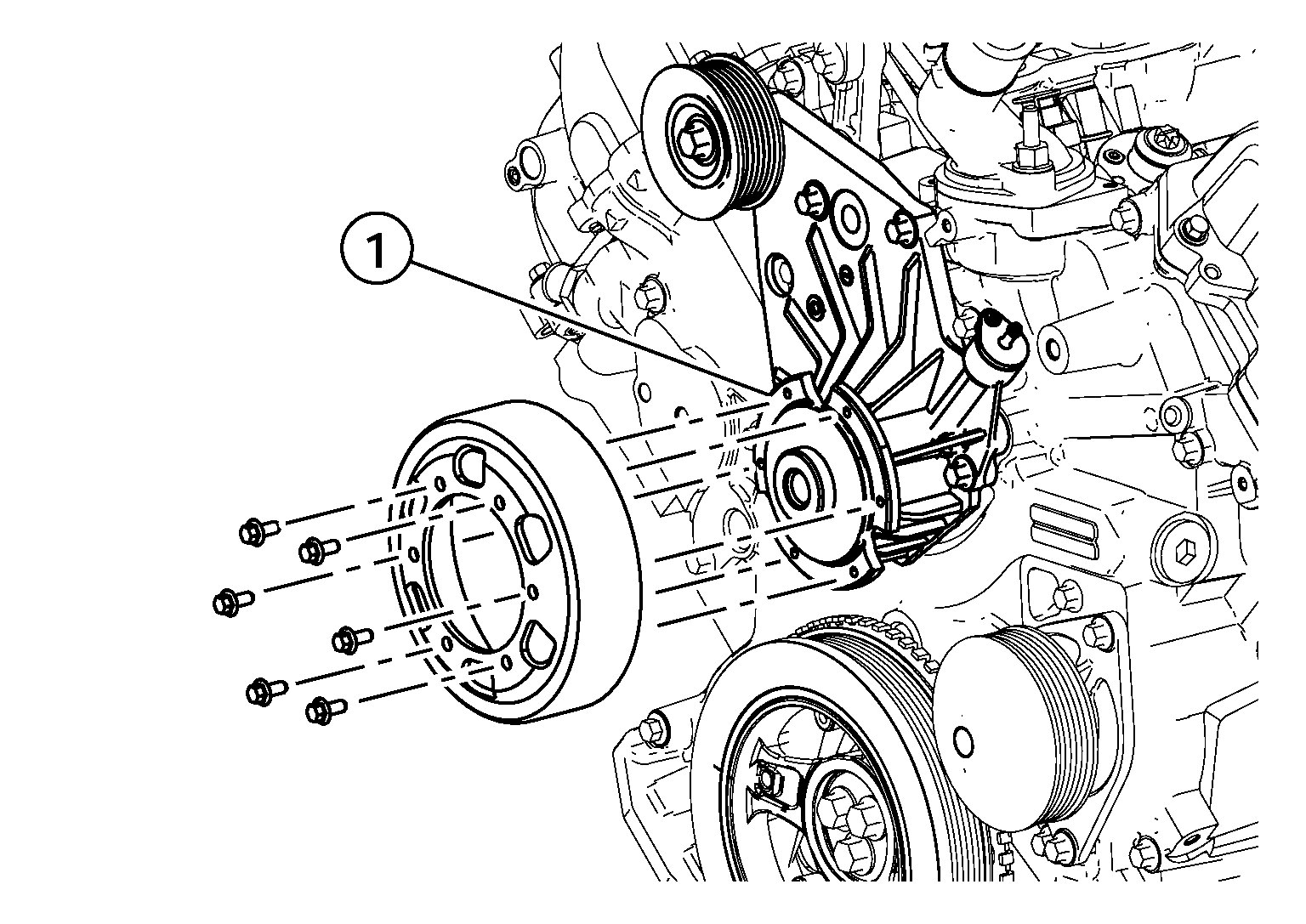

Hub fan
- Inspect the fan pulley for cracks near the bolt holes and for damage at the drive belt contact surface.
If damage is found on the fan pulley, the vacuum pump must also be inspected. Refer to Removal and Installation .
Replace the pulley if any damage is found.
