Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery or batteries. Refer to Battery Disconnect .
- Remove front under cover. Refer to Removal and Installation .

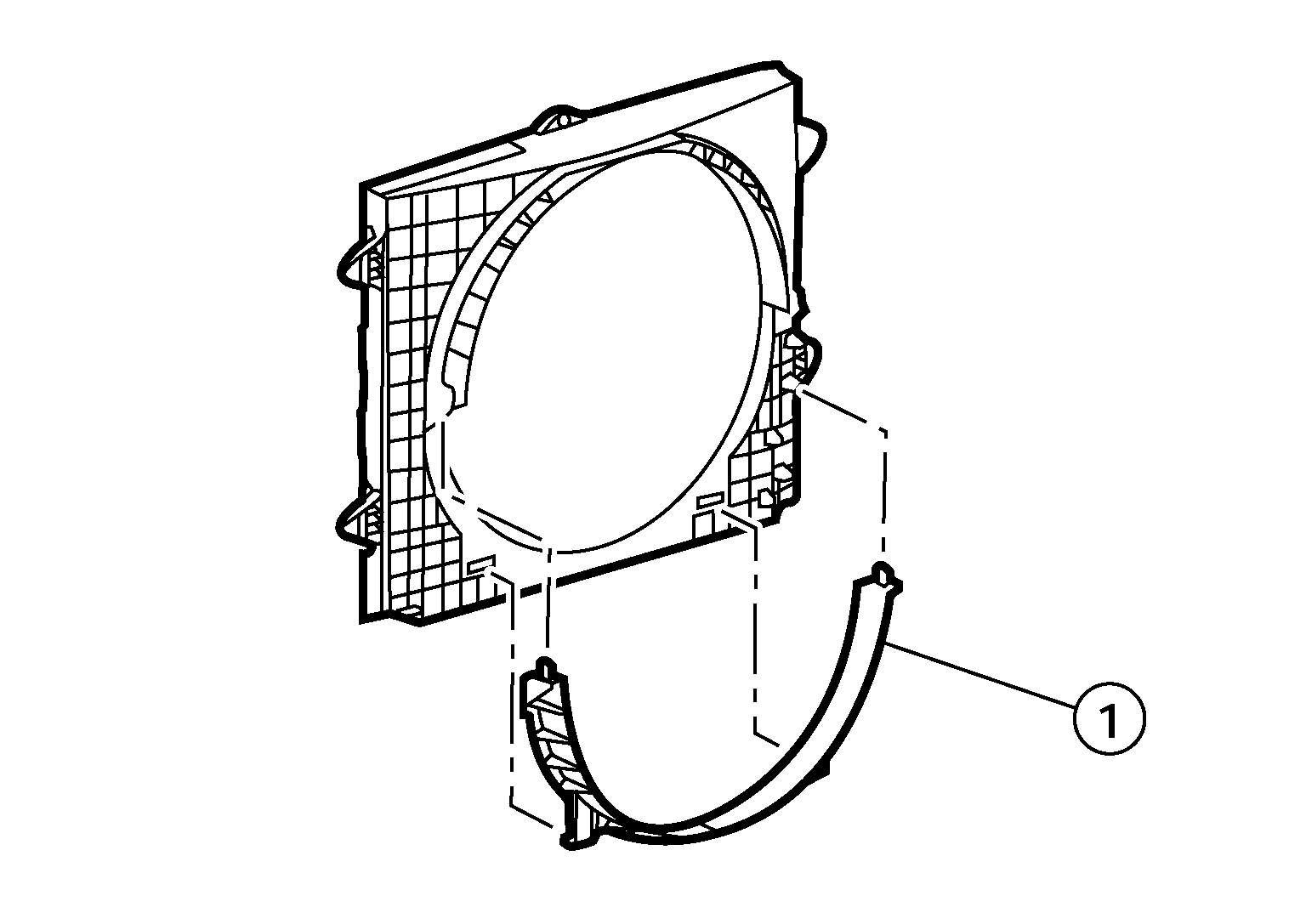

- Release tabs, pull the radiator shroud (lower) rearward and down and remove radiator shroud (lower) (1).
- Disconnect the harness connector from the fan clutch assembly.
- Remove fan clutch assembly and cooling fan using Tool.
Tool number
: - - (J-54480)
- Remove cooling fan bolts and cooling fan.
