Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

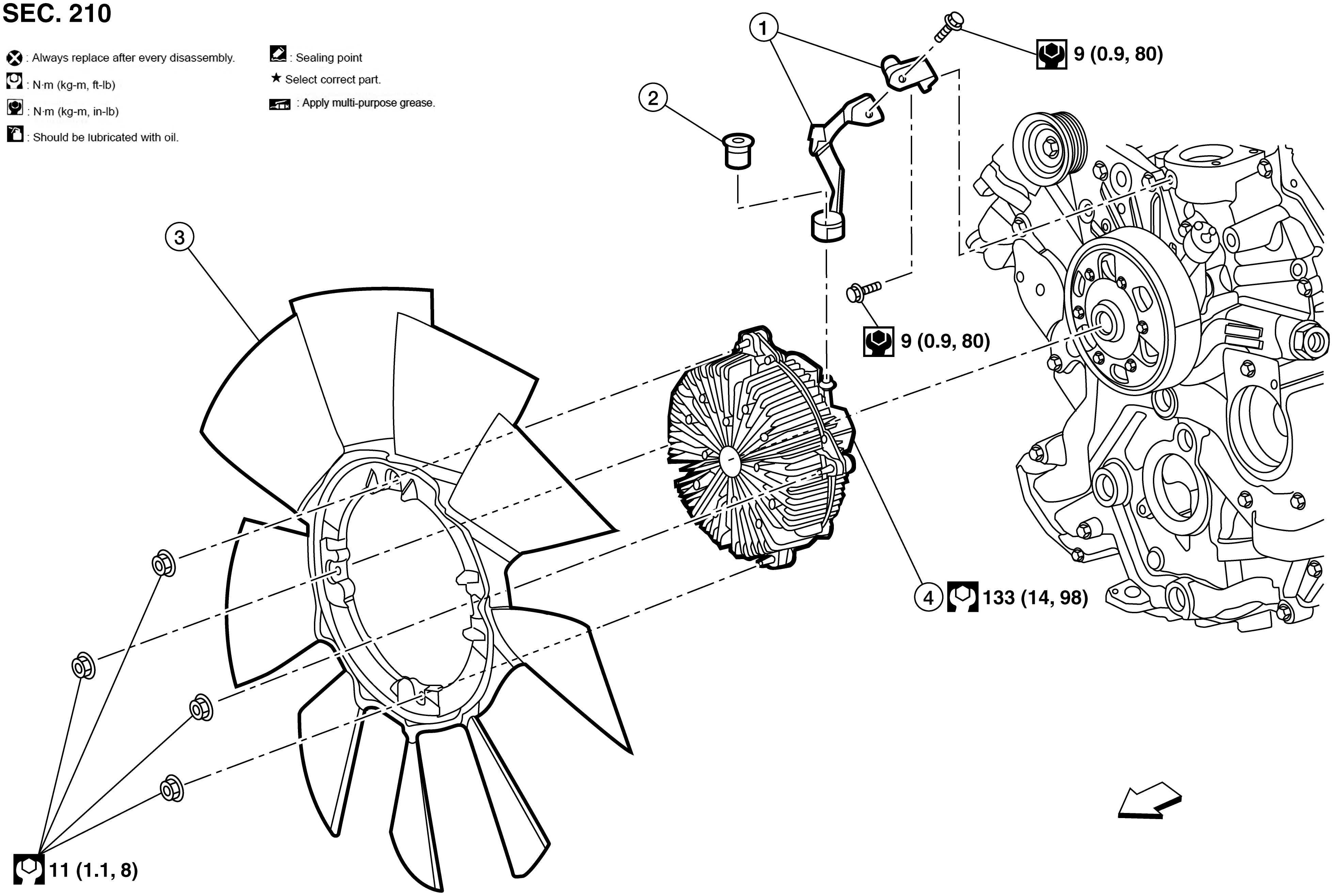

Fig 1: Engine Cooling Fan Assembly With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bracket	2.	Clip	3.	Cooling fan
4.	Fan clutch assembly		Front
