Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: To avoid possible engine damage or performance issues, never operate the engine without a thermostat or with the improper thermostat.

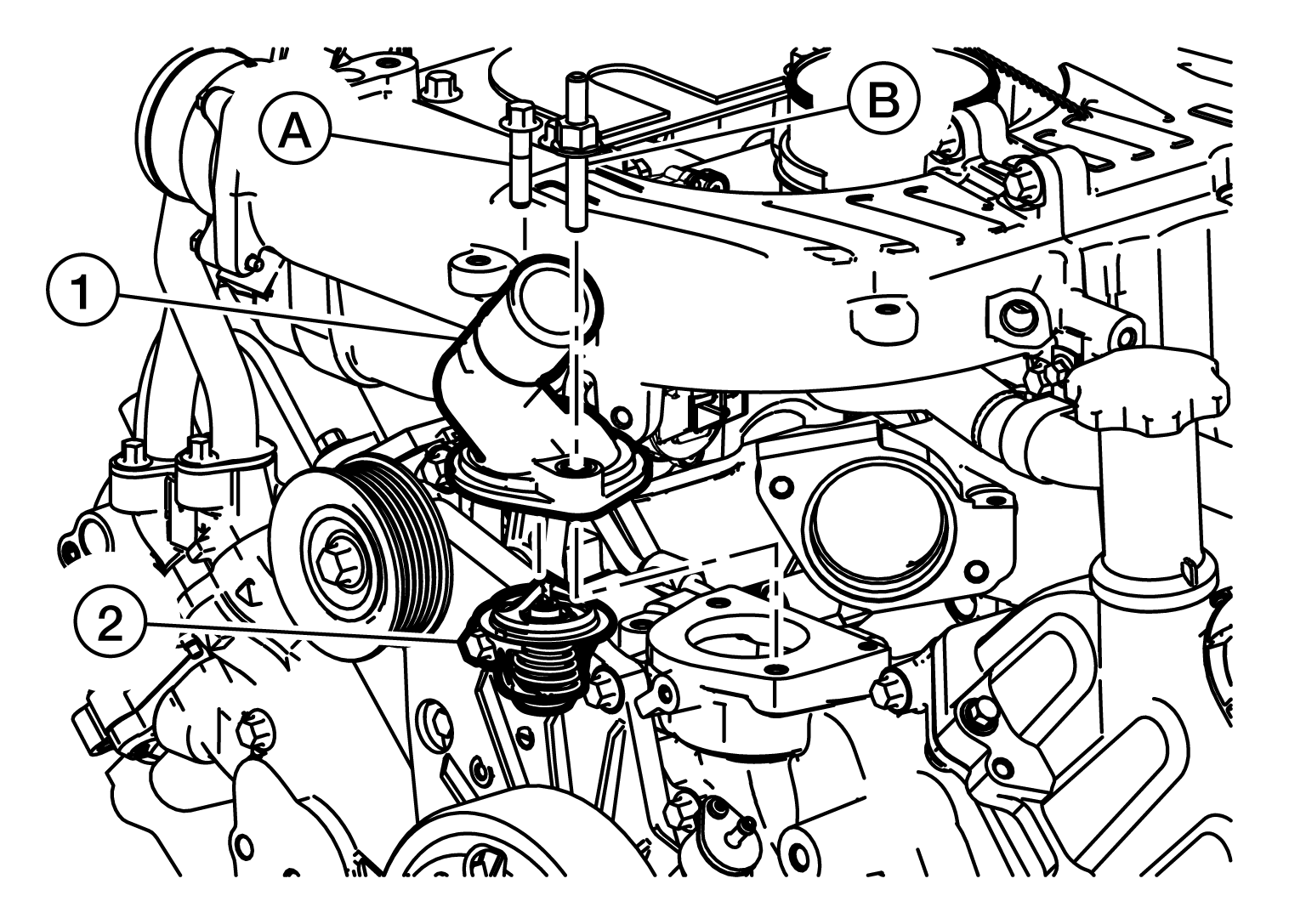

Install the thermostat (2) into the counterbore in the water outlet connection (1). Be sure it is evenly seated in the water outlet connection.

Courtesy of NISSAN NORTH AMERICA, INC.
Install the water outlet connection (1) and hand tighten the mounting bolts (A/B).

Tighten the bolts (A/B) to the specified torque.

Bolts (A/B)

: 18 N.m (1.8 kg-m 13 ft-lb)
