Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

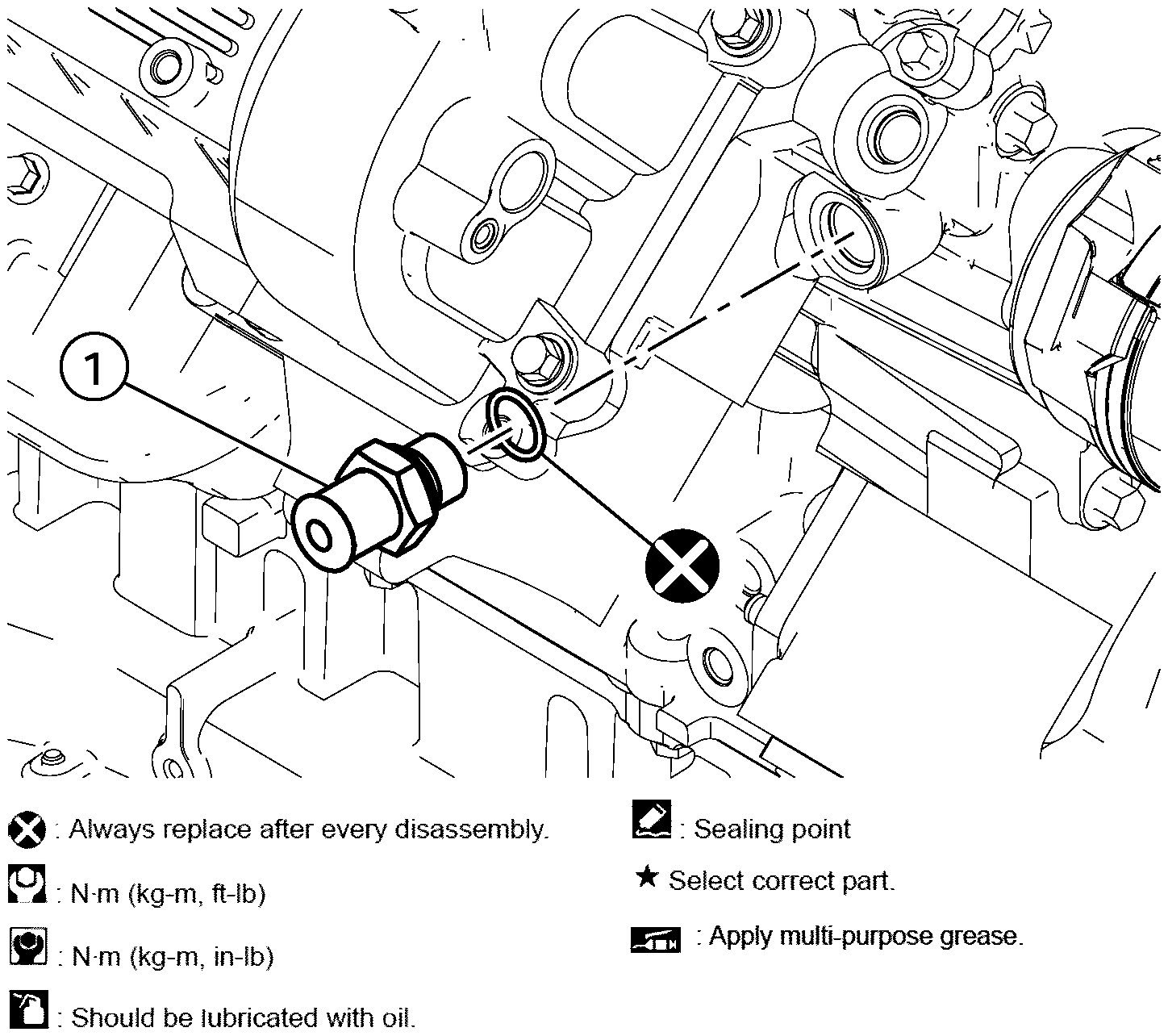

- Install O-ring to coolant plumbing fitting (1).
 Courtesy of NISSAN NORTH AMERICA, INC.
|
CAUTION:
Do not reuse O-ring.
NOTE:
Lubricate the o-ring with a water-based lubricant.
|
Coolant plumbing fitting
|
: 54 N.m (5.5 kg-m, 40 ft-lb)
|
- Installation of the remaining components is in the reverse order of removal.
