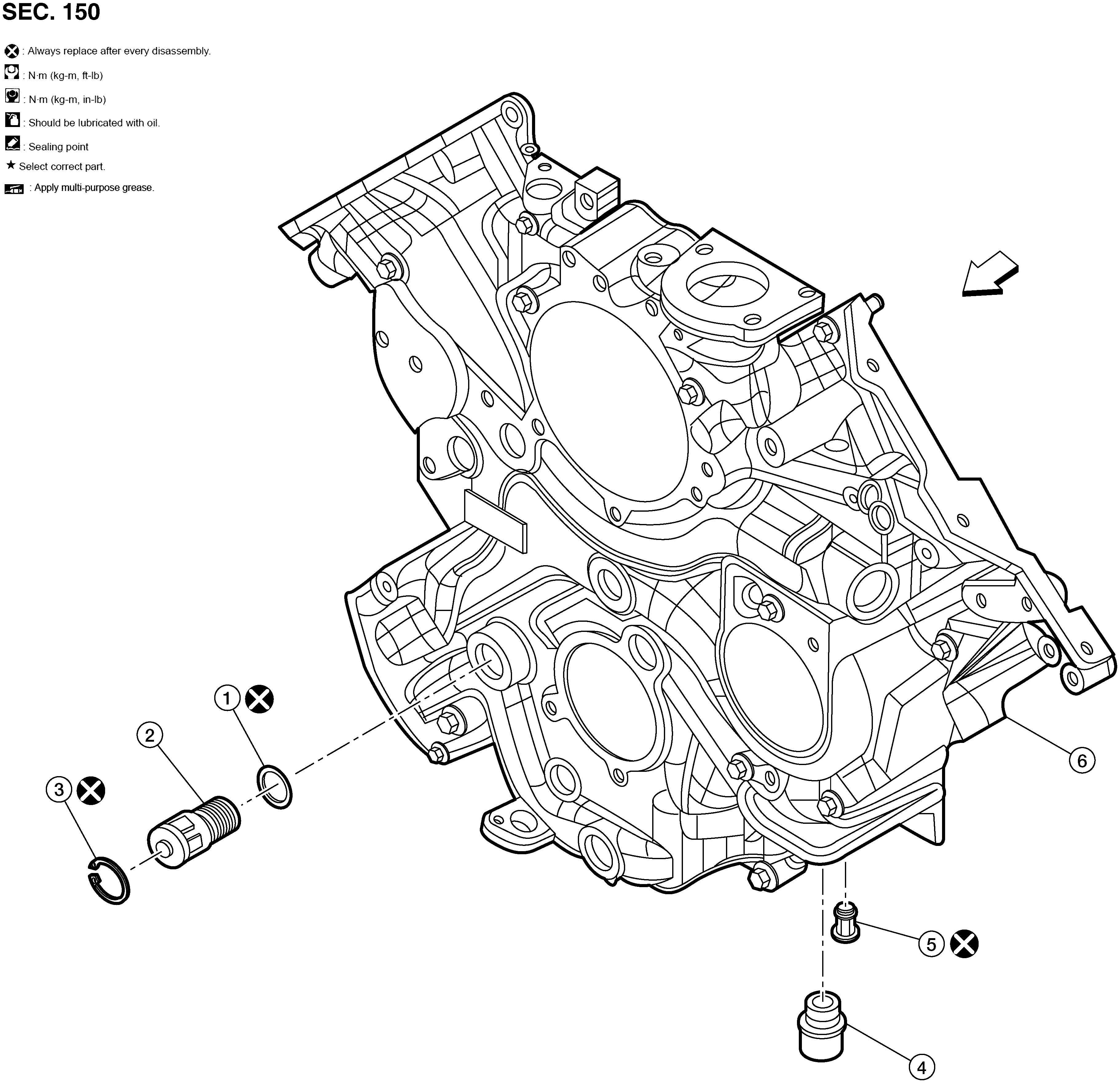

Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	O-ring	2.	Oil thermostat	3.	Snap ring
4.	Oil filter head adapter	5.	Oil filter bypass valve	6.	Front cover
	Front
