Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front cover. Refer to Removal and Installation .
  2. Release the spring (D) and remove bolt (C) along with the oil pump slack guide (4).
    GNSALBIA2796Z-796Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove bolts (B) and remove the oil pump chain tension guide (3).
  4. Hold the oil pump sprocket (1) with a suitable tool and remove bolt (A).
  5. Remove the oil pump sprocket (1) and oil pump chain (2).
  6. Remove the bolts (A) and remove the oil pump (1) from the block stiffening plate.

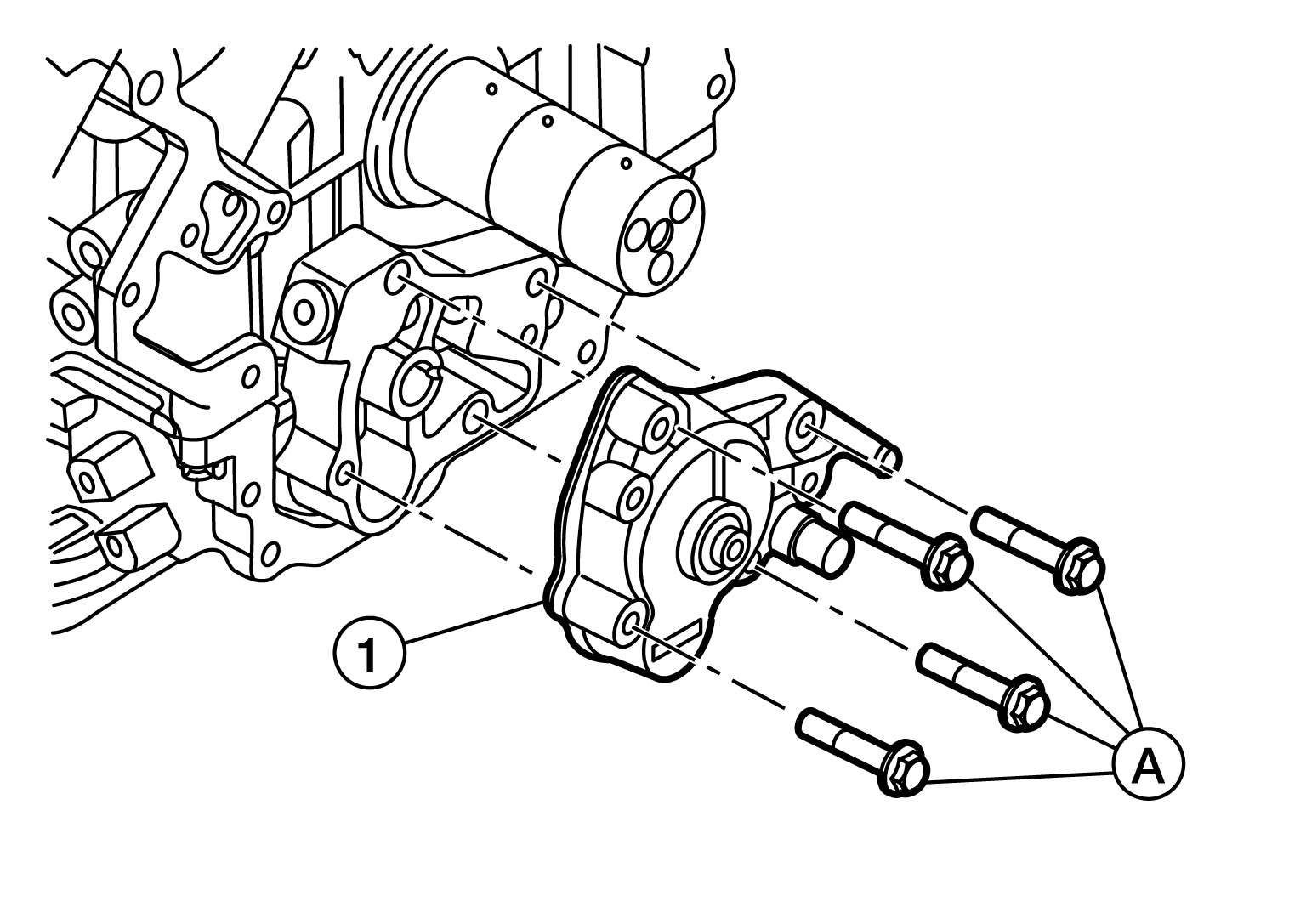

    GNSALBIA1440Z-440Courtesy of NISSAN NORTH AMERICA, INC.
