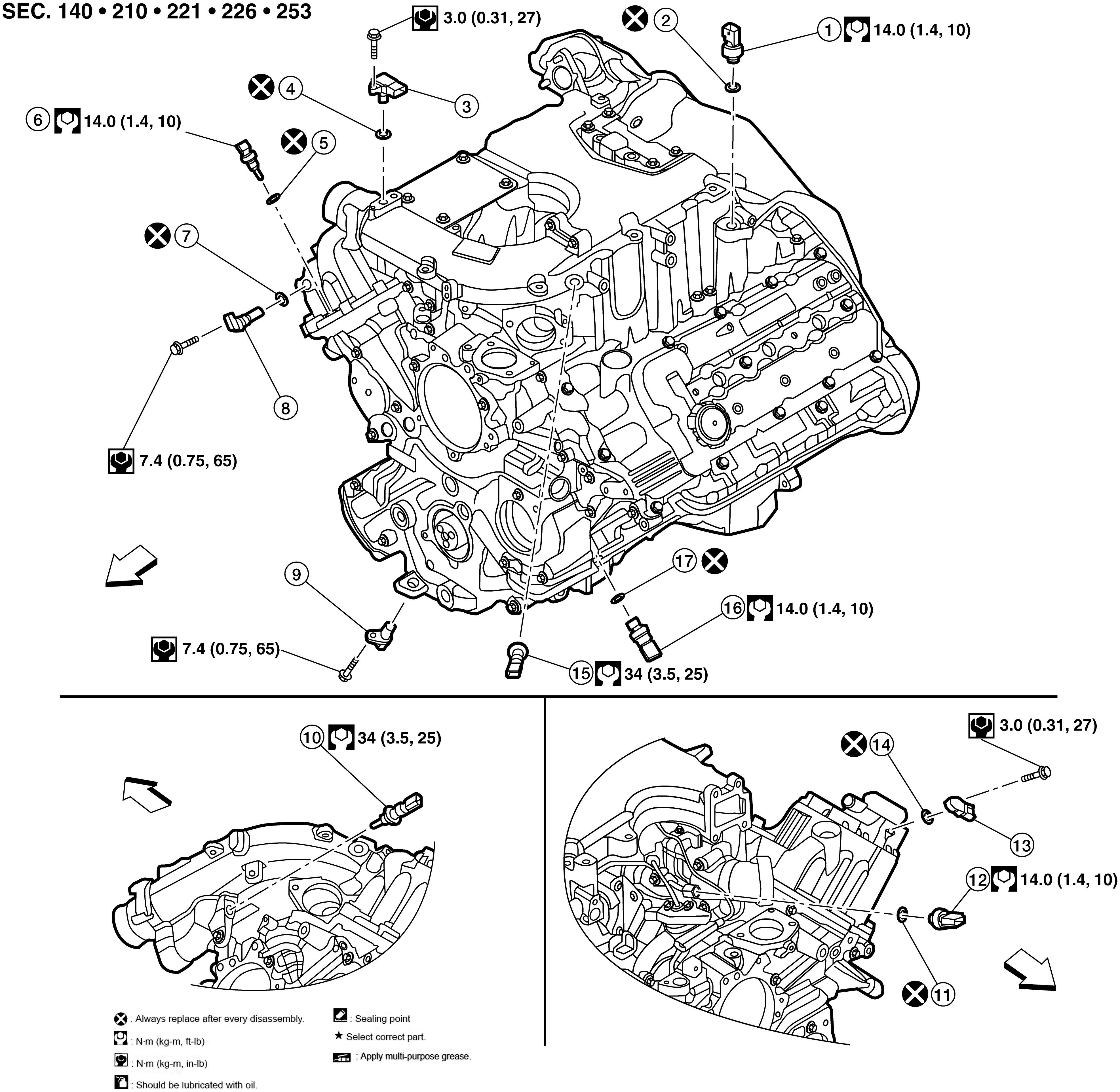

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Exhaust gas pressure sensor |
2. |
O-ring |
3. |
Engine charge-air cooler outlet pressure/temperature sensor |
|
4. |
O-ring |
5. |
O-ring |
6. |
Engine coolant temperature sensor |
|
7. |
O-ring |
8. |
Camshaft position sensor |
9. |
Crankshaft position sensor |
|
10. |
EGR temperature sensor |
11. |
O-ring |
12. |
Low pressure turbocharger boost pressure sensor |
|
13. |
Crankcase pressure sensor |
14. |
O-ring |
15. |
Intake manifold air temperature sensor |
|
16. |
Oil pressure switch |
17. |
O-ring |
|
Front |
