Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

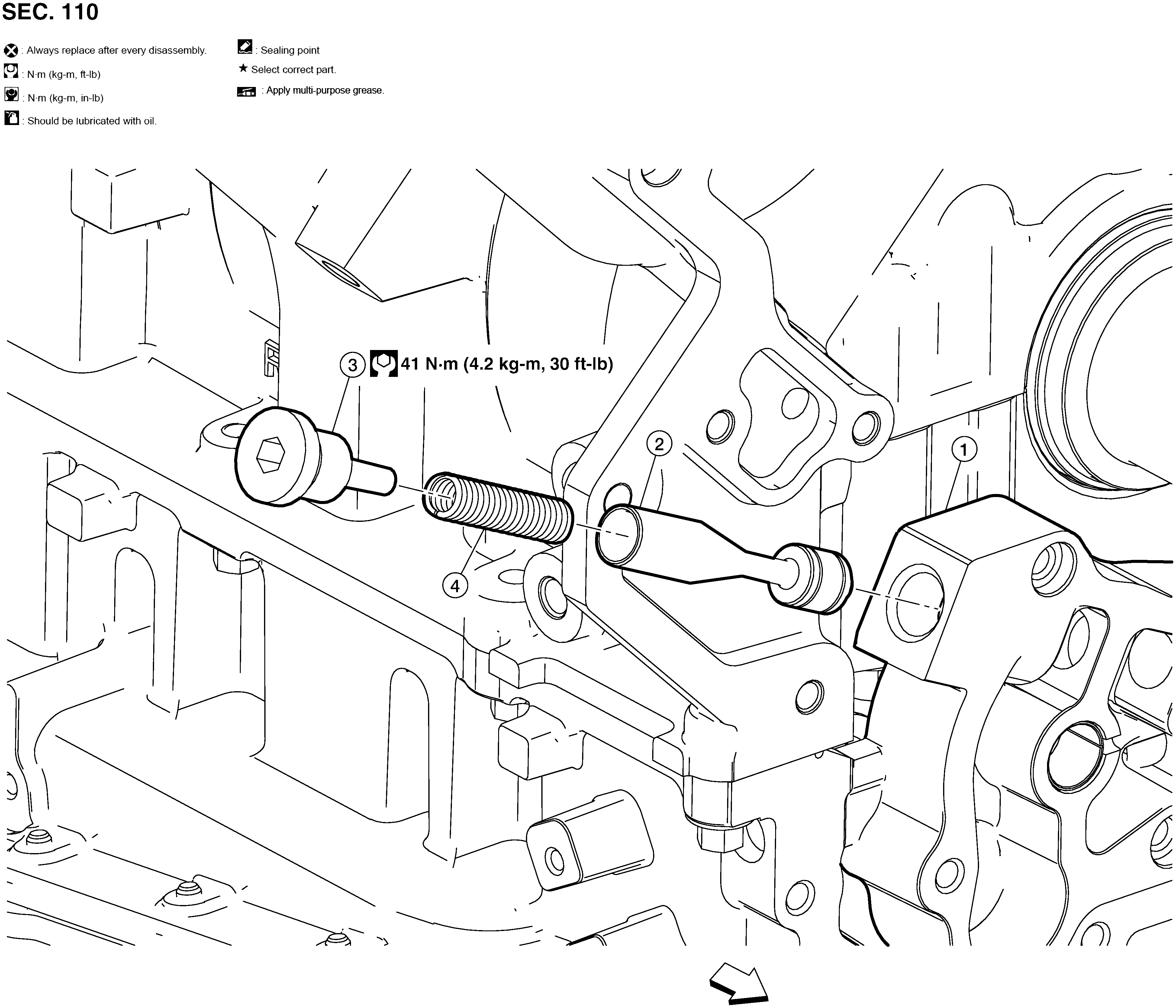

Fig 1: Oil Pressure Regulator With Torque Specifications
GNSALBIA1434Z-434Courtesy of NISSAN NORTH AMERICA, INC.

1.

Block stiffener

2.

Oil pressure regulator (main rifle)

3.

Plug

4.

Oil pressure regulator spring

SYMBOL

Front
