Leak Test
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

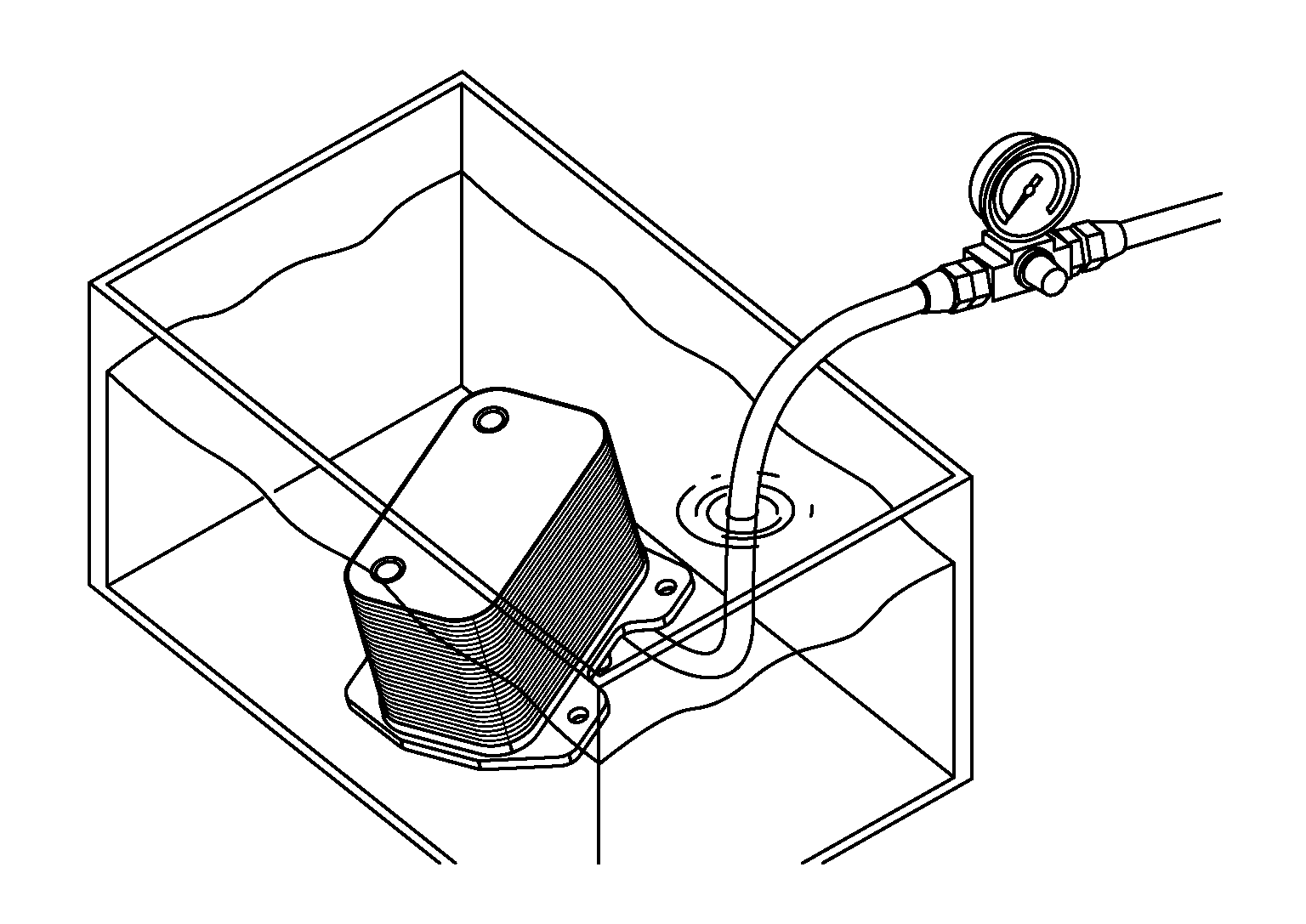

Use the Tool to pressure test the oil cooler, checking for leaks. If leaks are detected, replace the oil cooler.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Air Pressure Test
|
|
Minimum
|
: 449 kPa (4.58 kg/cm 2
, 65.1 psi)
|
|
Maximum
|
: 518 kPa (5.28 kg/cm 2
, 75.1 psi)
|
