Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

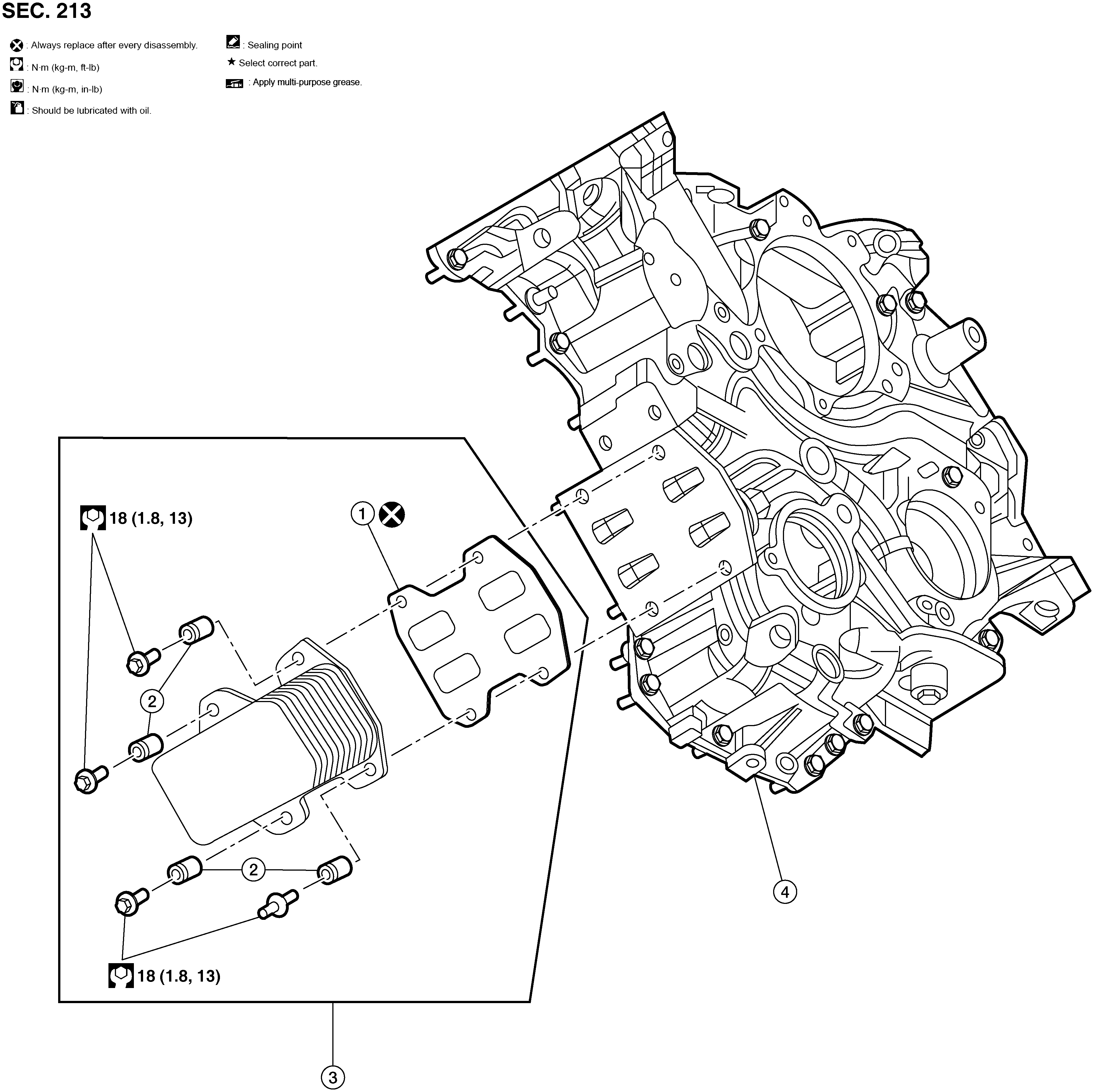

Fig 1: Oil Cooler With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil cooler gasket	2.	Spacer	3.	Oil cooler
4.	Front cover
