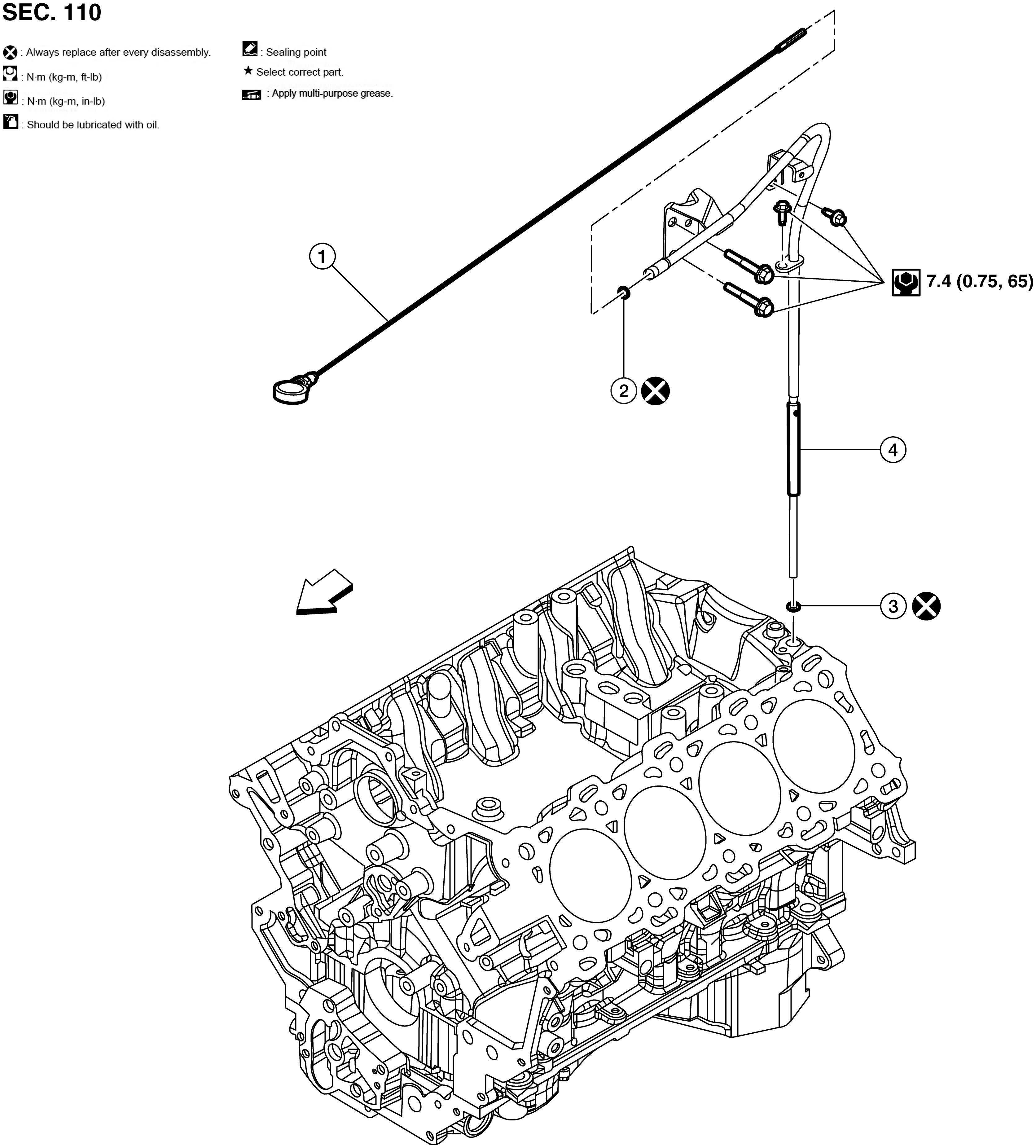

Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Engine oil dipstick	2.	O-ring	3.	O-ring
4.	Engine oil dipstick tube		Front
