Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.
- Tighten bank 1 engine mounting bracket (1) bolts in numerical order as shown to the specified torque.
Engine mounting bracket bolts
: 43 N.m (4.4 kg-m, 32 ft-lb)
: Front

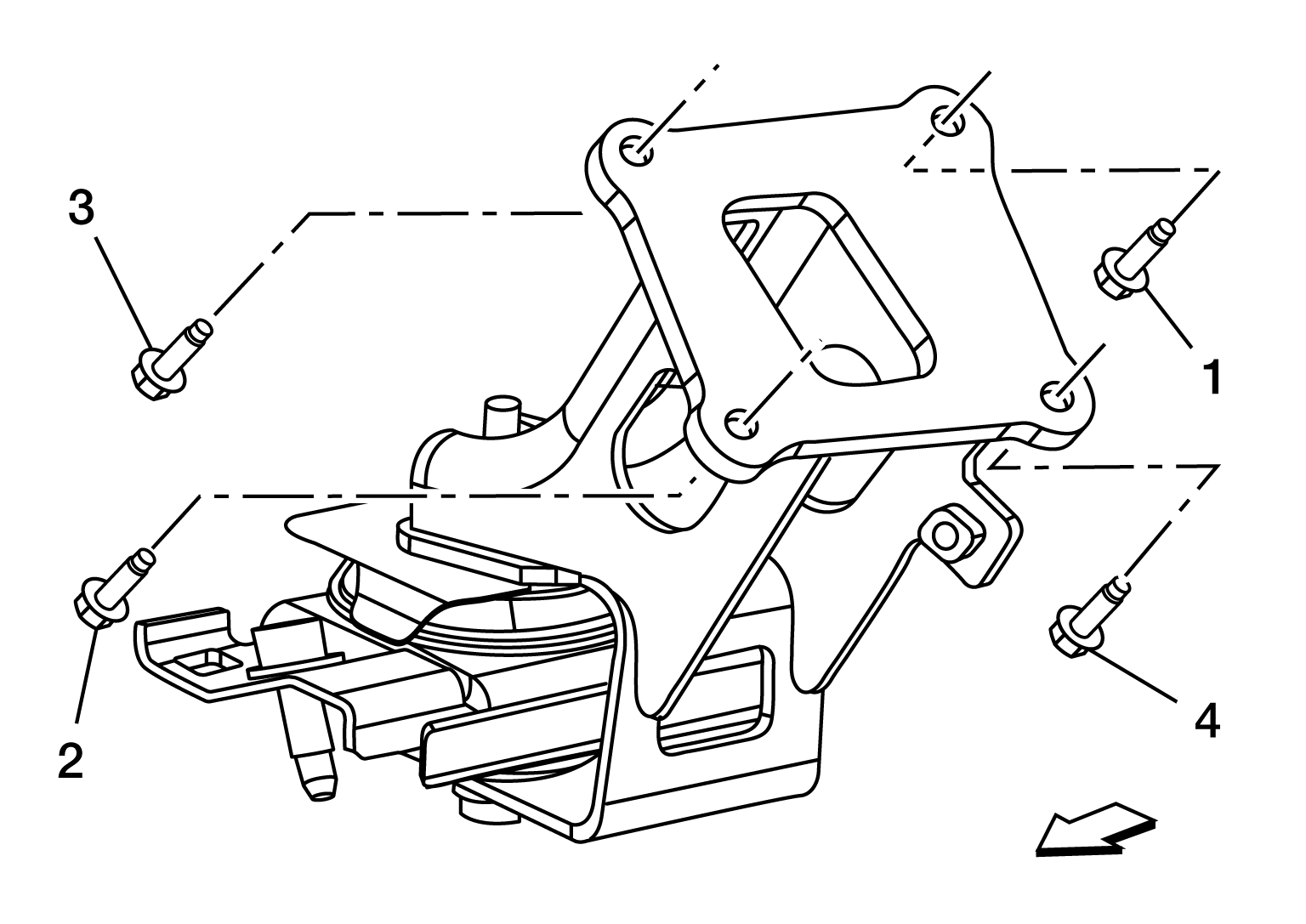

- Tighten bank 2 engine mounting bracket (1) bolts in numerical order as shown to the specified torque.
Engine mounting bracket bolts
: 43 N.m (4.4 kg-m, 32 ft-lb)
- Tighten battery ground cable to engine block.
Battery ground cable bolt
: 18 N.m (1.8 kg-m, 13 ft-lb)
CAUTION:
- When replacing an engine or transmission you must make sure the dowels are installed correctly during re-assembly.
- Improper alignment caused by missing dowels may cause vibration, oil leaks or breakage of drivetrain components.
